• Model NO.：LXP6020T
• Description：Lxp6020t
• Working Size：200(Diameter)*6000mm(Length)
• Z Axis Clearance：150mm (200 and Higher Is Optional)
• Table Type：Chuck Rotary
• Transmission System：Rack Pinion and Hiwin Linear Rails for X,Y
• Max. Travelling Speed：30000mm,Min(Different Configuration Speed Is Diffe
• Driving System：Servo Motor( Yaskawa,Panasonic ,Also According to
• Plasma Generator：Huayuan China and USA Power as Your Requirements
• Output Current：63,100,120A,160A,200A China (45,65,85,105,125,200A
• Max. Cutting  Thickness：6,15,18,20,30mm (This Is Approximate,It Also Accor
• Operating System：Jiaoda Fangling Fx430A Controller (Professional Fo
• Working Material：Steel, Aluminum, Galvanized Sheet, Titanium Plate,
• Transport Package：Standard Export Packaging
• Specification：8000mm*2000mm*1800mm
• Trademark：LXSHOW
• Origin：China Shandong Jinan

Basic Info.

Model NO. LXP6020T Description Lxp6020t Working Size 200(Diameter)*6000mm(Length) Z Axis Clearance 150mm (200 and Higher Is Optional) Table Type Chuck Rotary Transmission System Rack Pinion and Hiwin Linear Rails for X/Y Max. Travelling Speed 30000mm/Min(Different Configuration Speed Is Diffe Driving System Servo Motor( Yaskawa/Panasonic ,Also According to Plasma Generator Huayuan China and USA Power as Your Requirements Output Current 63/100/120A/160A/200A China (45/65/85/105/125/200A Max. Cutting  Thickness 6/15/18/20/30mm (This Is Approximate,It Also Accor Operating System Jiaoda Fangling Fx430A Controller (Professional Fo Working Material Steel, Aluminum, Galvanized Sheet, Titanium Plate, Transport Package Standard Export Packaging Specification 8000mm*2000mm*1800mm Trademark LXSHOW Origin China Shandong Jinan

Product Description

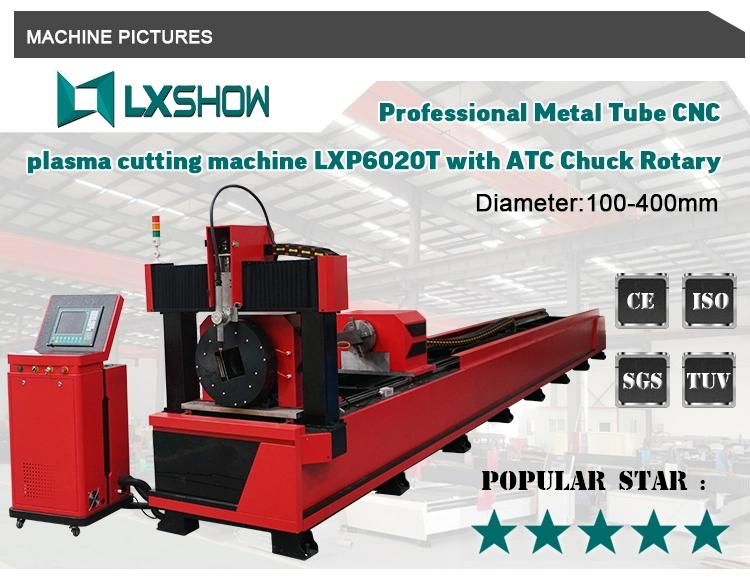

Cheap Homemade table cnc plasma cutting machine price 6020 portable cnc plasma cutter 220V 40A 60A

Characture:

1.  This machine is used for metal square&round tube cutting. Good man-machine control panel makes operation more convenient and simple, can cut kinds of complex shapes' metal sheet.
 2.  The liner rails are imported with high precision, good guide. Rack gear is manufactured by professional factory. Its surface is carbonizing and quenching.

 3.  LCD operate panel can prompt kinds of operating ways, so operator can operate it easily after simple training.

4.  Driving system is servo or stepper drive, you can choose China LEADSHINE , Japan Panasonic /YASKAWA servo motor or stepper motor to make sure whole machine can run with smoothly in a wider speed range, short acceleration time.

 5.  Torch height controller can adjust the best cutting distance automatically, to confirm working piece high precision cutting.

Technology Parameter:

NO	Description	LXP6020 (Length is 6000mm,Diameter is 100-400mm is optional)
1	Working Size	200(Diameter)*6000mm(Length)
2	Z Axis Clearance	150mm(200 And Higher Is Optional)
3	Table Type	Chuck rotary
4	Transmission System	Rack Pinion And Hiwin Linear Rails For X/Y
5	Driving System	Leadshine Servo motor( YASKAWA/PANASONIC is optional ,also according to your needs and budget.)
6	Max. Cutting Speed	12000mm/Min(different configuration and different material and thickness speed is different)
7	Max. Travelling Speed	30000mm/Min(different configuration speed is different)
8	Working Voltage	380V/3ph(220V/3ph is optional)
9	Plasma Generator	Huayuan China and USA power as your requirements
10	Arc Mode	Jiaoda fangling
11	Output Current	63/100/120A/160A/200A China (45/65/85/105/125/200A USA)
12	Max. Cutting  Thickness	6/15/18/20/30mm(This is approximate,It also according to power and kinds metal)

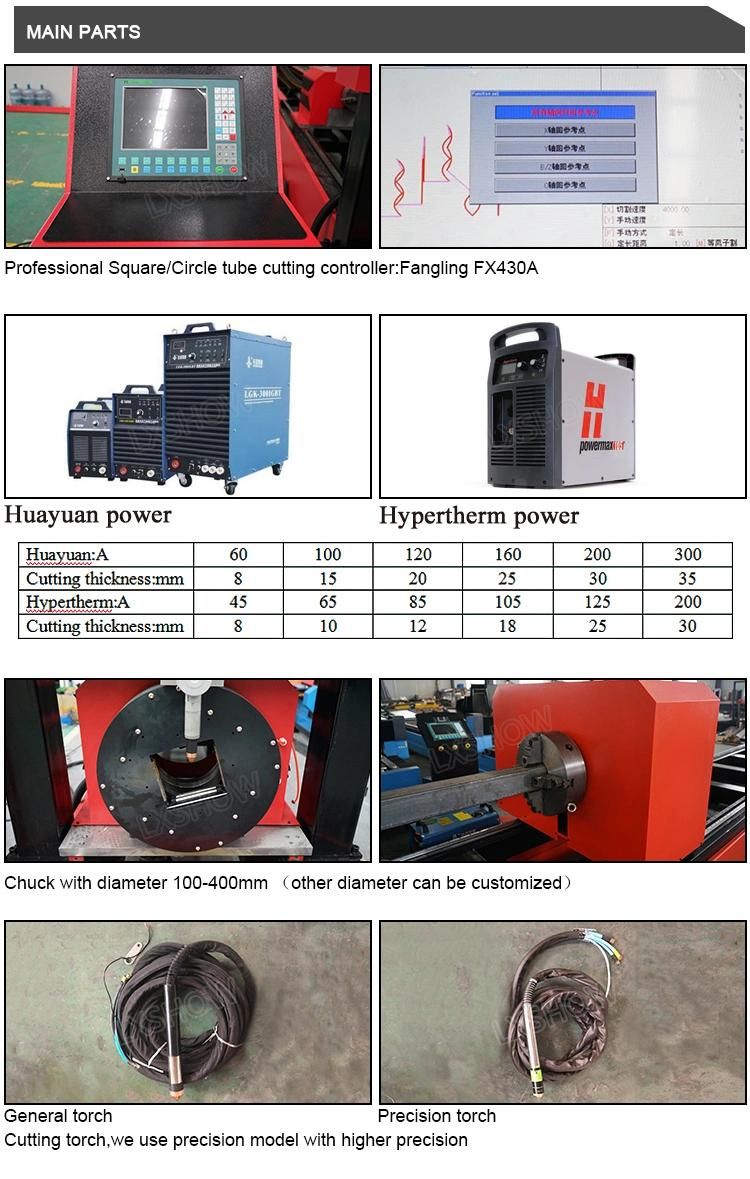

13	Operating System	JiaoDa fangling FX430A controller(Professional for tube cutting)
14	Working Material	Steel, Aluminum, Galvanized Sheet, Titanium Plate,   Platinum Plate and almost all of the metal square tube/Circle tube

Application:


Applicable Materials:
To cut all metals, including but not limited to aluminium sheet, iron sheet, galvanized (steel) sheet, mild steel,titanium sheet. stainless steel, iron etc.

Applicable industry:   Advertising industry: Advertising signs, logo making, decorative products, production of advertising and a variety of metal materials.
Mold Industry:   Engraving metal molds made of copper, aluminum, iron and so on.

Metal industry:  For steel, Carbon Steel, Stainless steel, alloy steel, spring steel, copper plate, aluminium plate, gold, silver, Titanium and other metal plate and tube.
