• Max. Bend R：350mm
• Pr：Japan
• Transport Package：Wooden Box
• Specification：5000x1200x1500mm
• Origin：China
• HS Code：8462219000
• Production Capacity：30 PCS,Month

Basic Info.

Max. Bend R 350mm Pr Japan Transport Package Wooden Box Specification 5000x1200x1500mm Origin China HS Code 8462219000 Production Capacity 30 PCS/Month

Product Description

·  Product Description
1 Bending-Auto driven by hydraulic, Rotaion-Auto by servomotor, Feeding-Auto by servomotor
2 Pneumatic movement of machine------clamp, pressure clamp, clutch, mandrel (High speed)
3 Automatic lubrication system of machine head and mandrel
4 XYZ transferred to YBC which is convenient for user
5 Different tooling design customized for user
6 Anticipated Mandrel Extraction good for tube of very small thickness
7 Reclamp function suitable for tube length without limitation
8 Optional function ------punching hole, cutting, multiple radius, roll bending, etc
9 Standard tooling including clamp die, wiper die, mandrel, pressure die, bend die
10 Seperate oil tank with oil filter--easy for cleanning
11 Option control system----Industrial computer with function of 3D simulation, 3D view, inch input, drawing input, remote control






·  Specifications

Machine type	DW89CNC/DW76CNC
Max bending capability for carbon steel(R=1.5D)	Φ89×3.5t/Φ75X3.5t
Max bending capability for stainless steel(R=1.5D)	Φ76×2.5t/Φ63×2.5t
Max. feeding distance	2400mm
Max. bending radius(R)	350mm
Max. bending degree	185°
Max. bending process of each pipe	32
Max. oil pressure	14mpa
Information inputting method	Axis (Y,B,C)
Bending method	1.Servo 2.Hydraulic

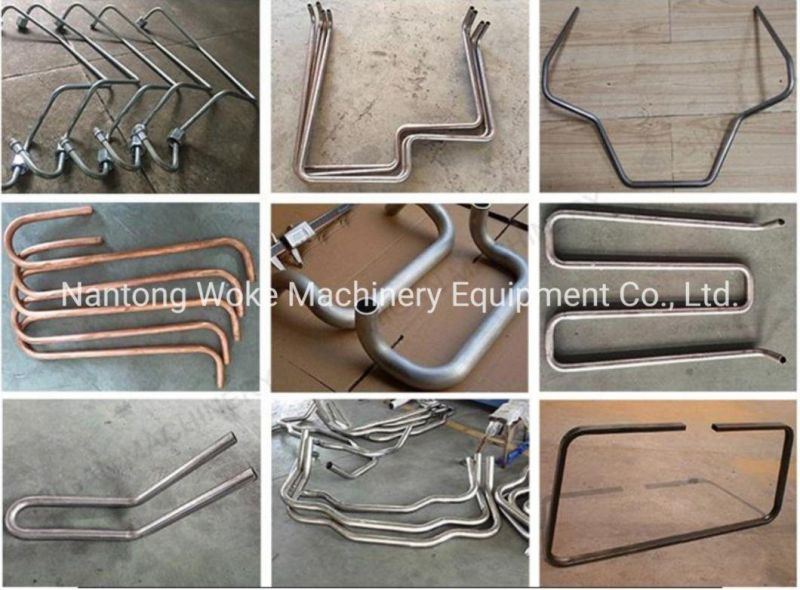

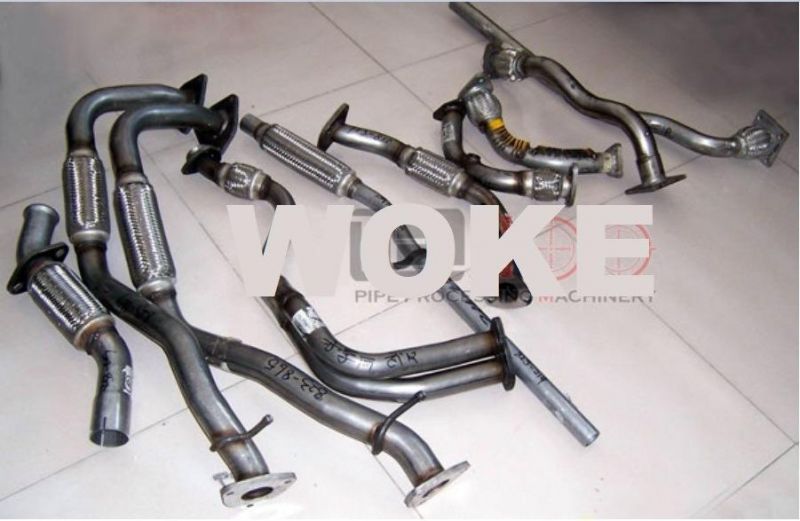

·  Finished samples by cnc bending

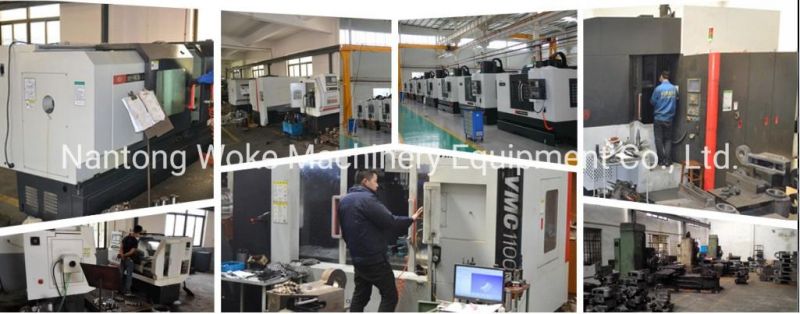

·  High accuracy processing equipments
