• Model NO.：PCM-1530
• Power：17kw
• Certification：Ce, ISO
• Power Supplier：Hyperthern and Huanyuan
• Transport Package：Wooden Case
• Specification：2260mm*3850mm*1850mm, 1700kg
• Trademark：RUIYI
• Origin：China
• HS Code：8462299000
• Production Capacity：100 PCS Per Month

Basic Info.

Model NO. PCM-1530 Power 17kw Certification Ce, ISO Power Supplier Hyperthern and Huanyuan Transport Package Wooden Case Specification 2260mm*3850mm*1850mm, 1700kg Trademark RUIYI Origin China HS Code 8462299000 Production Capacity 100 PCS Per Month

Product Description

FUNCTION
It's mainly for automatically lofting and cutting the deformed workpiece.You can select a drawing from the new version of CAM-DUCT and input dimensions and choose a way of connection,then the software will start calculating,composing,jacking and cutting automatically according to your requirements.

FEATURES

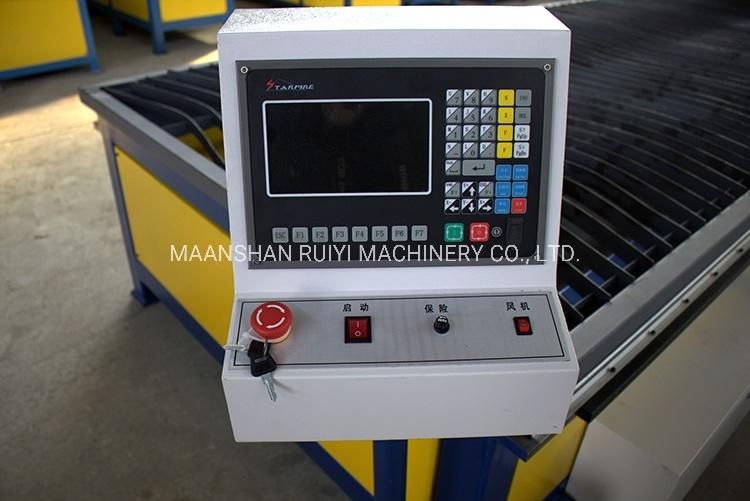

1.Vertical control cabinet with 10 inch touch screen(15 inch screen is optional)
2.New version of CAM-DUCT software from Hypertherm of United States and encrypting Chinese version.
3.Original generator of Hypertherm of United States or homemade generator of Huayuan (economy version).

SOFTWARE
The machine adopts the latest CAM-DUCT software from Auto Desk company and the software combines technology,data procedure with management and meets cutting requirements of duct workplace by using pre-designed standard duct drawings and parameter settings.The software is easy to learn and operate because it only requires machine dimensions to develop an unfolded view of deformed duct automatically.

MAIN TECHNICAL DATA

Model	1530  160A Plasma cutting machine (high configuration)
X,Y working area	1500*3000mm
Z working area	150mm
Packing dimension	2260mm*3850mm*1500mm
Lathe bed	Very thick steel structure
Machine Power	27kw
Working voltage	380V/415v, three phase, 50hz/60hz
Reposition precision	0.02mm
Processing precision	0.1mm
Maximum cutting speed	12000mm/min
Torch Height control mode	Automatic
Control system	STARfire
Motors	Stepper motor
Software	Starcam
Weight	1600KG
Plasma Air Pressure	Max.0.8Mpa
Working Temperature	-10°C-60°C. Relative Humidity, 0-95%.
LCD Display Dimension	7 Inches

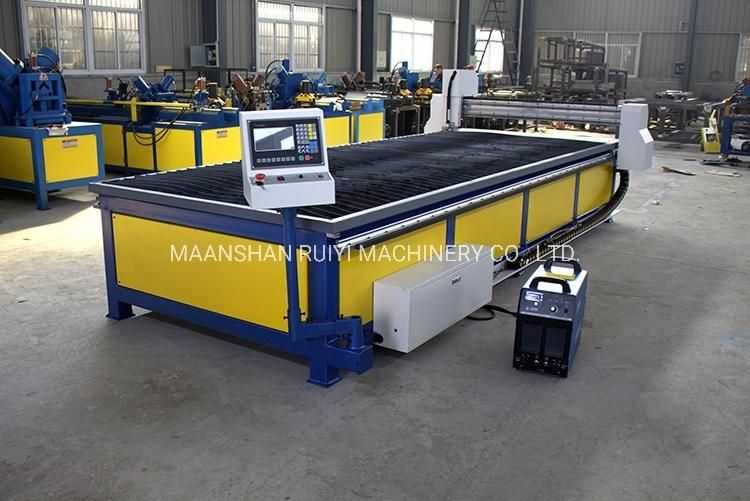

DETAILED PICTURES

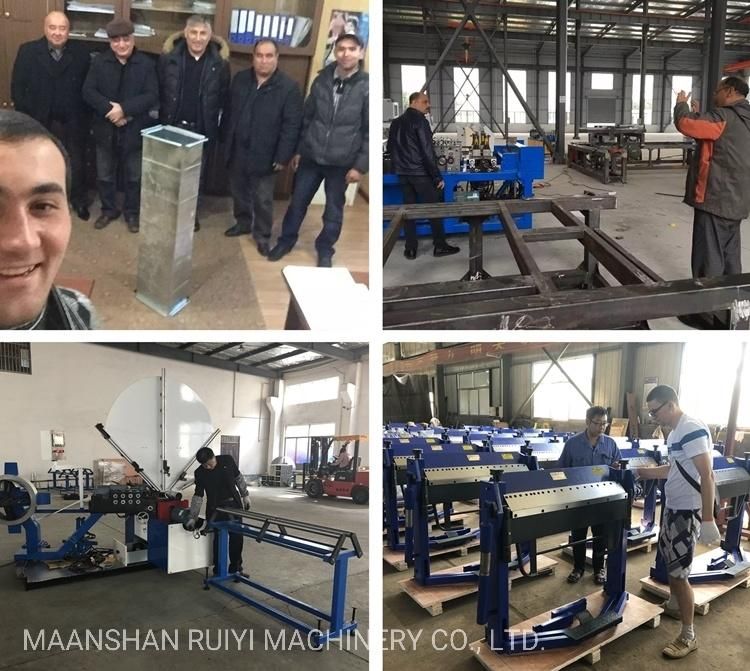

VISIT AND TRAINING

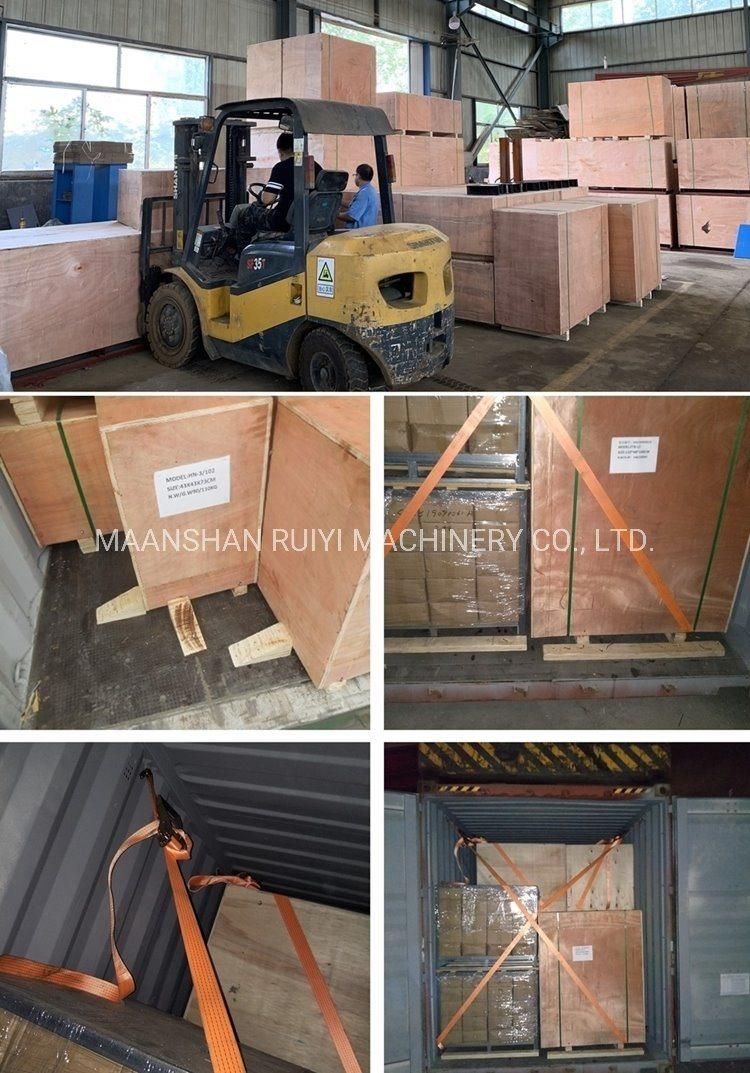

GOOD PACKAGE AND SAFTY DELIVERY

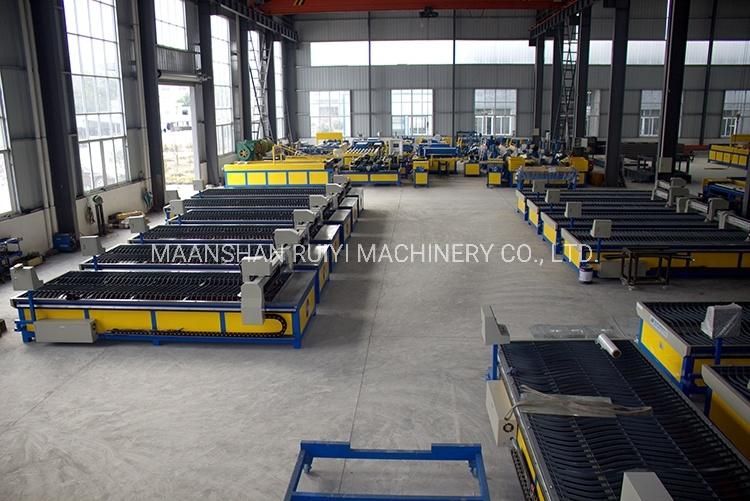

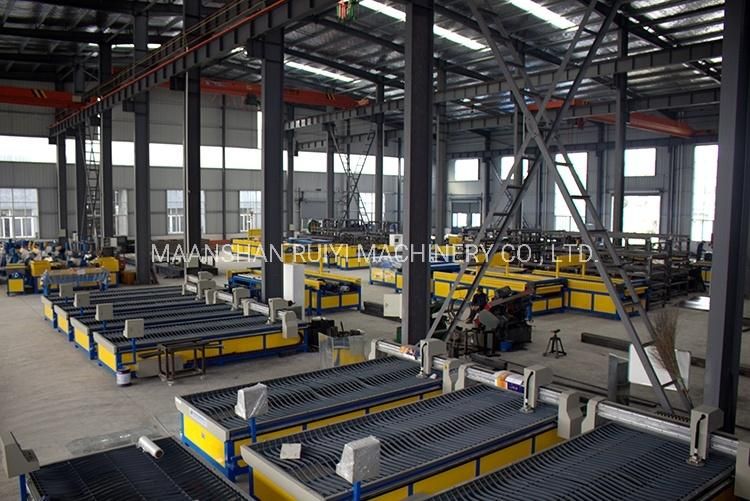

FACTORY SHOW


FAQ
1. Q: Are you a manufacturer or trading company ?
A: We are a manufacturer.

2.Q:How about the quality of your machines?
A: Our company  is a famous brand in china,through our 19 years research in technology,our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Brillante machines.And where there are our machines,there are good reputation and terminal user satisfaction.

3. Q:What can you provide for after-sales service?
A: 24 hours' online service-- technical support by email or calling
Training how to install and use the machine.
Respect your feedback after receiving the goods.
Provide technical exchanging.
Provide the VIDEO with Install and debug for small and medium size machines if needed.
Oversea install and debug for CNC and other large / heavy and precision equipment.
Engineers available to service machinery overseas.

4. Q:If we have very special request for the production line,could you help me to do the design?
A:Experienced mechanical designer customized-design provided.
