Yx153-840 Galvanized Metal Floor Deck Roll Forming Machine

Zhangjiagang City Saibo Science & Technology Co., Ltd.
  • Type：Rolling Machine
  • Forging Forming Method：Roll Forming
  • Power Source：Electric
  • Feature：High Efficiency
  • Certification：ISO9001, CE
  • Warranty：12 Months

Base Info

  • Model NO.：YX153-840
  • Customized：Customized
  • Advantage：Easy to Maintenance
  • Condition：New
  • Color：Blue and Yellow
  • Roll Station：42 Stations
  • Material of Rolls：45# Forge Steel
  • Shaft Dia：115mm
  • Main Power：33kw
  • Transport Package：No Packing
  • Specification：CE SGS
  • Trademark：SAIBO
  • Origin：Jiangsu, China
  • HS Code：84552210
  • Production Capacity：300 Units,Year

Description

Basic Info.

Model NO. YX153-840 Customized Customized Advantage Easy to Maintenance Condition New Color Blue and Yellow Roll Station 42 Stations Material of Rolls 45# Forge Steel Shaft Dia 115mm Main Power 33kw Transport Package No Packing Specification CE SGS Trademark SAIBO Origin Jiangsu, China HS Code 84552210 Production Capacity 300 Units/Year

Product Description

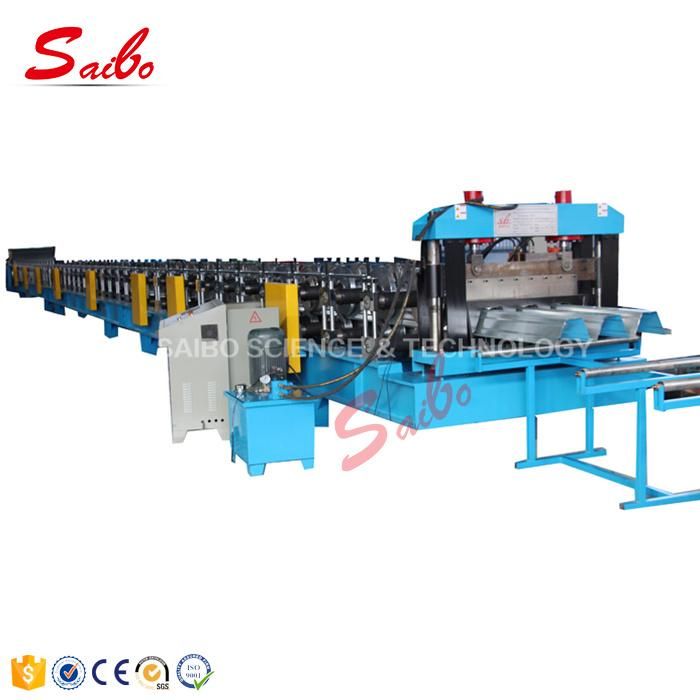

YX153 Metal Deck Roll Forming Machine
Yx153-840 Galvanized Metal Floor Deck Roll Forming Machine

1. Brief introduction:
A. Simple structure and beautiful outlook;
B. Easy to setting and operation
C. Little noise and high working efficiency.
2. Main technology parameter:
1. Size of sheet (mm): 1500mm
2. Working speed: 12-15m/min(not including cut-to-length)
3. Roll station: 42 stations
4. Material of rolls: 45#, polished and coated with chrome
5. Diameter: 115mm
6. Main power: 33 kw
7. Hydraulic station motor power: 7.5 kw
8. Hydraulic pressure: 20 Mpa
9. Electrical control system: PLC control OMRON Panasonic
10. Material of cutting: Cr12MOV
11. Thickness: 0.8mm- 1.5mm
12. Tolerance of length: ± 1.5 mm
13. Transmission: Double chain 1.2 inch
