• Model NO.：HJ-SRM201906
• Annual Capacity：100,000tons to 200,000tons
• Raw Matetial：Billets , Scrap etc.
• Warranty：3 Years
• Workshop Electric Capacity：3150kVA
• Main Motor Power：6000kw
• Ancillary Equipment Power：550kw 380V
• Transport Package：Seaworthy Packing or as Customers′request
• Specification：SGS, BV, ISO
• Trademark：Hangji
• Origin：Shaanxi, China
• HS Code：8455213000
• Production Capacity：30 Sets,Year

Basic Info.

Model NO. HJ-SRM201906 Annual Capacity 100,000tons to 200,000tons Raw Matetial Billets , Scrap etc. Warranty 3 Years Workshop Electric Capacity 3150kVA Main Motor Power 6000kw Ancillary Equipment Power 550kw 380V Transport Package Seaworthy Packing or as Customers′request Specification SGS, BV, ISO Trademark Hangji Origin Shaanxi, China HS Code 8455213000 Production Capacity 30 Sets/Year

Product Description

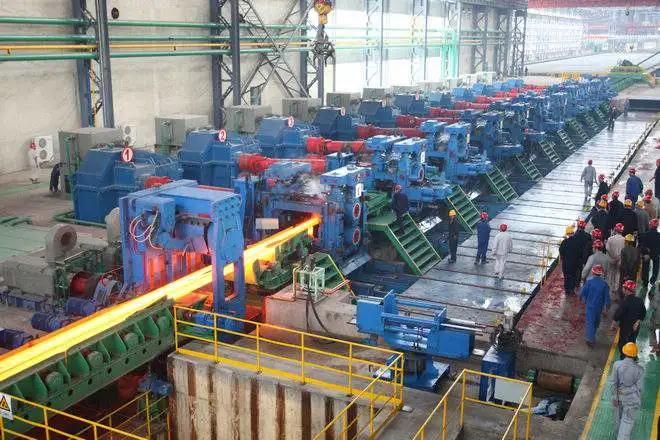

Hot-Rolled Section Steel Production Line

Summarize1.Briefings: The product line is hot rolled flange steel. The main process is as follows: the raw material 150 billet into the continuous heating furnace for heating; temperature of 1150 degrees Celsius hot continuous casting billet after the conveyor roller table feeding to Φ520 two and a half horizontal mill shuttle rolling in circles, the final Production of qualified products; finished by the flange coiler is made into a disc, the last cooling, packaging, weighing, listing, storage.Process flow:
Feeding→Continuous heating→Tapping→Shuttle rolling→Cooling→
Dividing shear→Straightening→Weighting→Storge
2.Input Material: 150x230x1200mm  Billet
3.Output Products:  I-beam 200mm; U-beam 250mm; Angle steel 150mm;
4.Annual Capacity: 100,000-200,000 Tons/Year
5. Declaration
5.1. Each and every piece of the machinery we provide can be operated smoothly. The operating noise meets the national standard.
5.2. The supplier will provide technical support and guidance on site while the demander covering the cost.
5.3. The rolling line is compact and can be operated smoothly with low cost.

Main Equipment List:

NO.	Equipment	Unit	Qty.	Remark
1	Φ650 Rolling mill unit
1.1	Three-roll rolling mill housing	set	2
1.2	Two-roll rolling mill housing	set	1
1.3	Universal joint	pcs	8

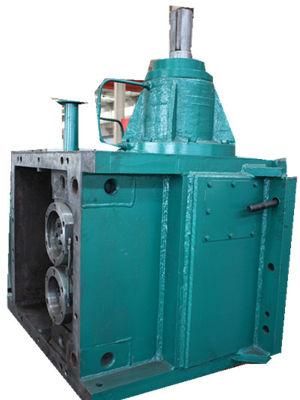

1.4	Gearbox A=650	set	1
1.5	Reducer	set	1
1.6	Flying wheel	set	1
1.7	Motor	set	1
1.8	Roller	pcs	8
1.9	Bearing	set	32
1.10	Bearingbox and Roller system	set	16
1.11	Rolling mill, gear box, flying wheel,motor base; coupling	set	1
2	Dividing shear	set	1
3	Straightener	set	1
4	Cooling bed	set	1
5	Roller system
5.1	Lifting table Before the first mill	set	1
5.2	Roller table after the first mill	set	1
5.3	Lifting table Before the second mill	set	1
5.4	Roller table after the second mill	set	1
5.5	Roller table before the roll forming mill	set	1
5.6	Roller table after the roll forming mill	set	1
5.7	Dischagring roller table	set	1
6	Reheating
6.1	Pusher	set	1
6.2	Continuous reheating furnace	set	1	29×2m
6.3	Tapping machine	set	1

Before sale: design the suitable machine based on the specific demands
Medium sale:
1.Based on customer's demand to offer moderate quotation project 2.Accept customers to visit our factory
3.Help customer work out the schedule in china
After-sale:
1.On-site training personnel 2.Appoint special aftersale service staff, arrived at the scene guide clients  installation and commission


Xi'an Weikeduo Electrical & Mechanical Equiment Co., Ltd.

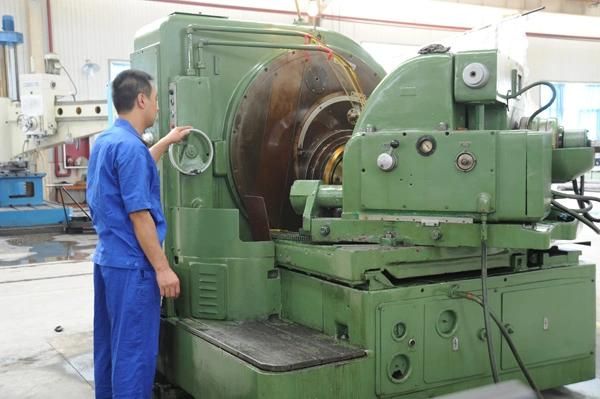

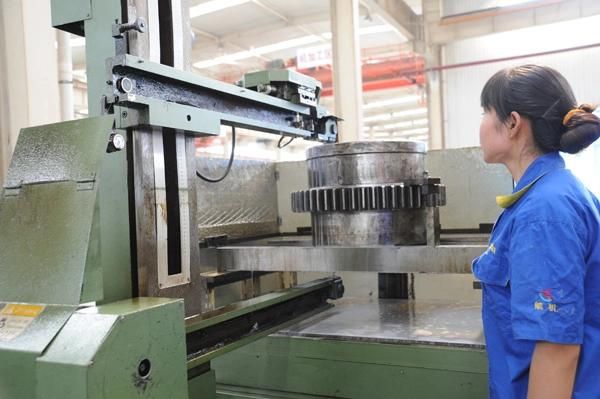

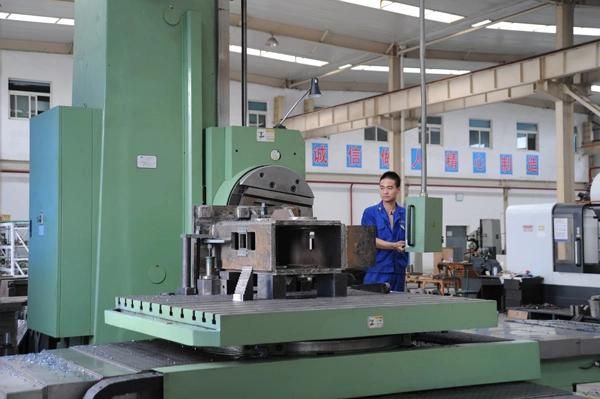

     With more than 20 years experience in metallurgical industry, The main business scope for the metallurgical machinery, high-speed gear box, hardened gear reducer. High-speed wire rod, bar, special steel rolling mill production line design, production, sales and installation; As well as for the aviation, steel, oil, electricity, coal mining machinery to provide intelligent re-manufacturing laser quenching, welding, cladding supporting processing, surface corrosion and wear-resistant alloy protective processor full set of technology development, services and applications. Crack detection of the equipment and spare parts, CMM measure and Gear detection. Products through the ISO9001 certification, the use of "Hangji" registered trademark of Shaanxi famous brand, with more than 10 patented technology, the establishment of a complete research and development, production and quality assurance system for high-tech enterprises.
