• Model NO.：YX80
• Customized：Customized
• Advantage：Work Flexible
• Condition：New
• Color：Blue and Yellow
• Transport Package：No Packing
• Specification：CE SGS
• Trademark：SAIBO
• Origin：Jiangsu, China
• HS Code：84552210
• Production Capacity：300sets,Year

Basic Info.

Model NO. YX80 Customized Customized Advantage Work Flexible Condition New Color Blue and Yellow Transport Package No Packing Specification CE SGS Trademark SAIBO Origin Jiangsu, China HS Code 84552210 Production Capacity 300sets/Year

Product Description

Product name: C purlin roll forming machine
Description:
I: Composition of machine
Roll forming main machine----------------1 unit
Manual Uncoiler-------------------------------1 unit
Control panel----------------------------------1 unit
Hydraulic station------------------------------1 unit
Manual out table-------------------------------2 unit
Spare tools-------------------------------------1 unit

II: Details of each composition

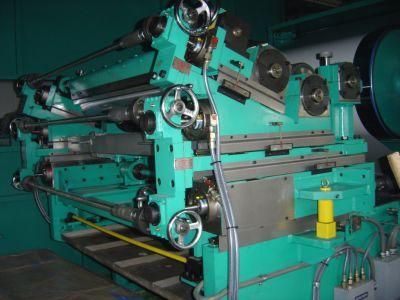

A. Roll forming main machine
1: Coil width: 195mm, 215mm, 265mm
2: Working speed: 12m-15m/min (not include cutting)
3: Roll station:
Roll forming: 14stations (ASTM52100, polished and coated with chrome HRC58-62)
Leveling station: 7 rollers ( up three rollers, down four rollers)
Diameter of roller: 76mm
Material of roller: ASTM1045, polished and coated with chrome HRC58-62
Revising station: 1 station
4: Material of main shaft: ASTM1045
5: Main power: 15kw DC motor
6: Forming thickness: 2mm
7: Transmission: By single line chain 1.5inch
8: Machine adopts new stations to make machine stronger
9: Punching:
Base on customer request this machine needs one set of punching system
Machine adopts hydraulic after cutting
Punching mould: Cr12 HREC58-62
Punching distance is adjustable by computer
10: Size of machine: About 10m*1.5m*1.2m (L x W x H) need one 40GP container
11: Cutting:
(1)Machine adopt hydraulic after cutting
(2)Cutting after forming: Cut the sheet after roll forming to required length
(3)Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
(4)Material of blade: D2with heat treatment total 3 cutters
(5)Length measuring: Automatic length measuring
(6)Tolerance of length: +/- 1.5mm

B. Uncoiler
Dimensions: 1700mm*1000mm*800mm
Width of feeding: 600mm
Capability: 5 Ton
Bound of expand &fight: 480mm-570mm
Mode of expand &fight: Inner expand &fight by manual
Way of feeding: Manual

C. Control panel Panasonic
(1)Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
(2)Automatic length measurement:
(3)Automatic quantity measurement
(4)Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
(5)Length inaccuracy can be amended easily.
(6). Control panel: Button-type switch and touch screen
(7)Unit of length: Millimeter (switched on the control panel)

D. Hydraulic station
1: Hydraulic station power: 5.5kw
2: Hydraulic pressure: 20Mpa

E. Manual out table
(1)Jointed by 60mm*40mm tube
(2)Size: 1.0m long*0.8mwide*0.6-1mhigh
(3)One out table with two support rollers

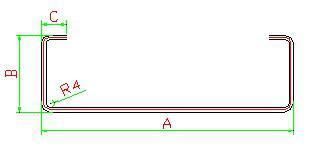

Profile:

A	B	C
100	50	20
