Jm85 Roll Forming Machine for Cold Rolling Shutter Door Garage

Xiamen Xinhonghua Machinery Co., Ltd.

Type：Hydraulic Machine
Forging Forming Method：Mold Forging
Power Source：Hydraulic Pressure
Feature：Automation
Certification：SGS
Warranty：12 Months

Base Info

Model NO.：JM85
Customized：Customized
Advantage：Work Flexible
Condition：New
Forming Steps：14steps
Motor Power：4kw
Hydraulic Motor Power：2.2kw
After-Sales Service Provided：Engineers Available to Service Machinery Overseas
Delivery Time：Delivery Immediately After The Machine Isassembled
Roller Material：Gcr15
Shaft Material：40cr
Cutting Material：Cr12MOV

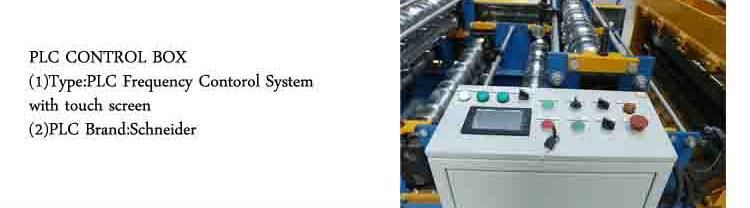

PLC：Schneider
Tolerance：±2mm
Transport Package：Standard Package for Export
Specification：SGS
Trademark：XHH
Origin：Xiamen, China
HS Code：8455229090

Description

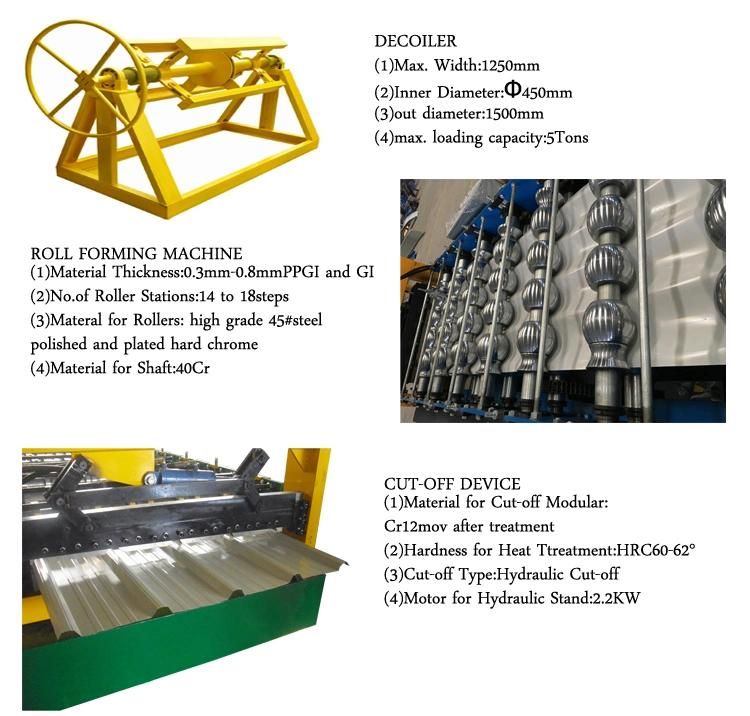

Size4000*900*1400mmWeight2500KGSMotor Power4kwHydraulic Motor Power2.2KWForming Steps14stepsProcessing Speed8-12m/minVoltage220V/60HZ/3PHEffective Width85mmMaterial Width136mmMaterial Thickness0.8-1.0mmCut-off systemHydraulic cutting deviceMaterial of principal axishigh grade 45# forged steelMaterial of roller45#steel with hard chrome platingMaterial of bladeCr12 mould steel with quenched treatment 60-62°CMaterial for frame of machineFine welded structural steelSprocket wheel45 steel high-frequencies quenchMaterial for producing roofingnormal colored painted and galvanized sheets with strength 245, 345MPA; Jm85 Roll Forming Machine for Cold Rolling Shutter Door Garage

Jm85 Roll Forming Machine for Cold Rolling Shutter Door Garage

Jm85 Roll Forming Machine for Cold Rolling Shutter Door Garage

Jm85 Roll Forming Machine for Cold Rolling Shutter Door Garage

Jm85 Roll Forming Machine for Cold Rolling Shutter Door Garage

Jm85 Roll Forming Machine for Cold Rolling Shutter Door Garage

Jm85 Roll Forming Machine for Cold Rolling Shutter Door Garage

Jm85 Roll Forming Machine for Cold Rolling Shutter Door Garage

Jm85 Roll Forming Machine for Cold Rolling Shutter Door Garage

Jm85 Roll Forming Machine for Cold Rolling Shutter Door Garage

Jm85 Roll Forming Machine for Cold Rolling Shutter Door Garage

Jm85 Roll Forming Machine for Cold Rolling Shutter Door Garage

Recommended

Hydraulic Notching Machine
Max. Shearing Thickness4-6MMMax. Shearing Width200MMStrength of Shearing Sheets450N/MM2Shearing Angle0-90°Cut times30/MINBlade Material9CrSiOverall dimension1000X1000X1200MMWeight520KGSCompanyShining Industrial Enterprise(China) Co., LtdNantong Brillante Industrial Enterprise Co., LtdEdward Pear
Manufacturing Hot Steel Rolling Mill Machines of Housingless Mill
Model No.Roller barrelΦmax/Φmin*Length700Φ700/600X800610Φ610/530X760530Φ530/460X760470Φ475/400X650370Φ370/330X650350Φ350/320X650Welcome you to inform us your requirement, like input billet size and output product size, product thickness, capacity, etc., we will provid
W24s Series Profile Bending Machine, Square Tube Bending, Tube Rolling Machine
Angle leg-inmaximum cross-section(mm)50*580*890*10100*10120*12140*16Minimum bending diameter(mm)80010001100130016001800Minimum cross-section(mm)20*330*335*336*538*445*5Minimum bending diameter(mm)400550500600700760Channel steel bent outwardChannel model81216202528Minimum bending diameter(mm)60080080
Factory Directly Sale CNC Profile Rolling Steel Pipe Bending Machine W24s Series
Angle leg-inmaximum cross-section(mm)50*580*890*10100*10120*12140*16Minimum bending diameter(mm)80010001100130016001800Minimum cross-section(mm)20*330*335*336*538*445*5Minimum bending diameter(mm)400550500600700760Channel steel bent outwardChannel model81216202528Minimum bending diameter(mm)60080080
W11 Series Symmetric Rolling Machine with Three Rollers /Powered Slip Rolls Machine
The sameDetailed Photos of 2 rolls bending machine , hydraulic 3 rolls bending machines, 4 rollers plate rolling machine and so on , Prima can supply all of them :About Prima Factory:Nanjing Prima CNC Machinery Co., Ltd. is located in the center of China's machine tool industry, Mingjue Industrial P

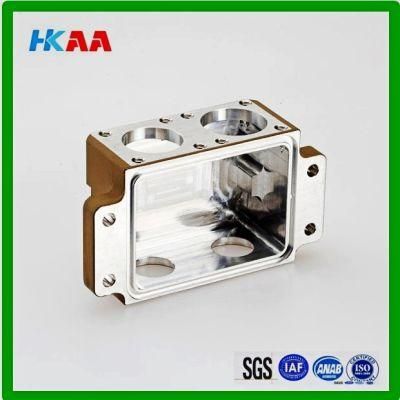

CNC Milling / Machining Aluminum Enclosure Block
