Standing Seam Roofing Machines with Panel Roll Cutting Forming Machine
Xiamen Xinhonghua Machinery Co., Ltd.- Dimension：1700*1100*1200mm
- Weight：800kgs
- Motor Power：1.5kw
- Voltage：380V,50Hz,3pH
- Effective Width：220-530mm
- Material Width：290-600mm
Base Info
- Model NO.：KLS25-530
- Material Thickness：0.5-0.8mm
- Delivery Time：Delivery Immediately After The Machine Is Assemble
- After-Sales Service：Engineers Available to Service Machinery Overseas
- Height of Roofing：25mm
- Transport Package：Nude in Container
- Trademark：XHH
- Origin：Xiamen of China
- HS Code：84552290
- Production Capacity：20 Sets,Month
Description
Basic Info.
Model NO. KLS25-530 Material Thickness 0.5-0.8mm Delivery Time Delivery Immediately After The Machine Is Assemble After-Sales Service Engineers Available to Service Machinery Overseas Height of Roofing 25mm Transport Package Nude in Container Trademark XHH Origin Xiamen of China HS Code 84552290 Production Capacity 20 Sets/MonthProduct Description
KLS25-220-530 Portable Standing Seam Roofing Machines, Panel Forming Machine and Metal Roof Machine:

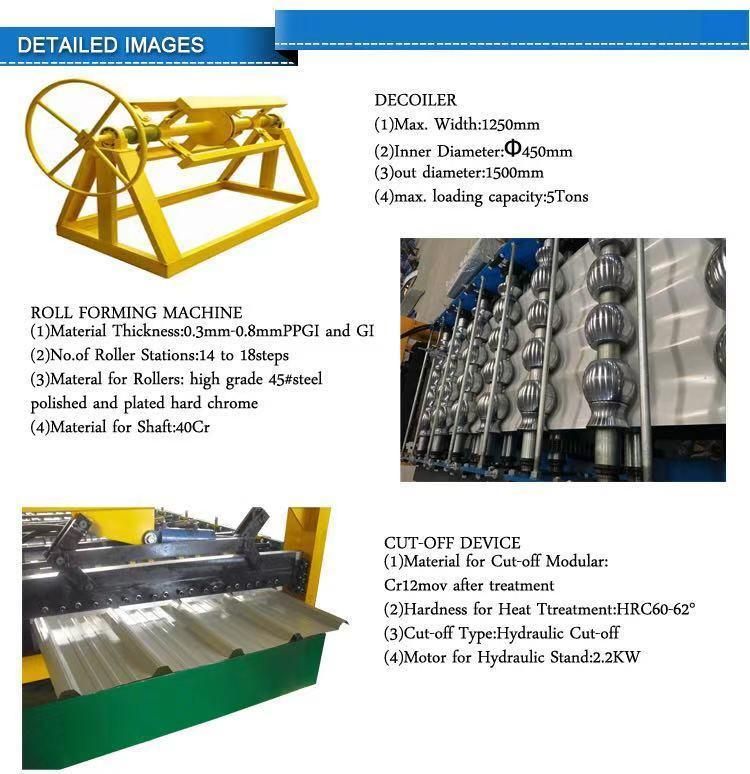

Main Accessories:
1. Main forming machine
2. 5 Tons Manual Uncoiler
3. Run Out Table.
Main Technic:
| 1. | Dimension | 1700*1100*1200mm |
| 2. | Weight | 800KGS |
| 3. | Motor Power | 1.5KW |
| 4. | Power for hydraulic forming cutter | 0.75KW |
| 5. | Voltage | 380V/50HZ/3PH |
| 6. | Forming Steps | 6 steps |
| 7. | Forming Speed | 6-8m/min |
| 8. | Thickness for Steel | 0.5-0.8mm |
| 9. | Height of Roofing | 25mm |
| 10. | Effective Width for Roofing | 220-530mm |
