Standing Seam Roof Panel Forming Machine for Aluminium Making (YX65-400-425)
Xiamen Xinhonghua Machinery Co., Ltd.- Dimension：6500*1600*1400mm
- Weight：6500kgs
- Motor Power：5.5kw* 2
- Hydraulic Power：2.2kw
- Voltage：380V,50Hz,3pH
- Material Width：575mm, 600mm
Base Info
- Model NO.：YX65-400-425
- Effective Width：400mm,425mm
- Material Thickness of Aluminum：0.6-1.0mm
- Material Thickness of Steel：0.6-0.8mm
- Type：Standing Seam Roofing Machine
- Transport Package：Standard Export Packge
- Specification：SGS
- Trademark：XHH
- Origin：Xiamen of China
- HS Code：84552290
- Production Capacity：20 Sets,Month
Description
Basic Info.
Model NO. YX65-400-425 Effective Width 400mm,425mm Material Thickness of Aluminum 0.6-1.0mm Material Thickness of Steel 0.6-0.8mm Type Standing Seam Roofing Machine Transport Package Standard Export Packge Specification SGS Trademark XHH Origin Xiamen of China HS Code 84552290 Production Capacity 20 Sets/MonthProduct Description
Standing Seam Roof Panel Forming Machine
Dimension:6500*1600*1400mm
Motor Power:5.5kw* 2
The detail informations of Standing Seam Roofing Machine,Standing Seam Roofing Forming Machine are as follow;
Main Technical Date:
| 1. | Dimension | 6500*1600*1400mm |
| 2. | Weight | 6500KGS |
| 3. | Motor Power | 5.5KW*2 |
| 4. | Hydraulic Power | 2.2KW |
| 5. | Voltage | 380V/50HZ/3PH |
| 6. | Material Width | 575mm,600mm |
| 7. | Effective Width | 400mm,425mm |
| 8. | Material Thickness of Aluminum | 0.6-1.0mm |
| 9. | Material Thickness of Steel | 0.6-0.8mm |
| 10. | Forming Speed | 8-14m/min |

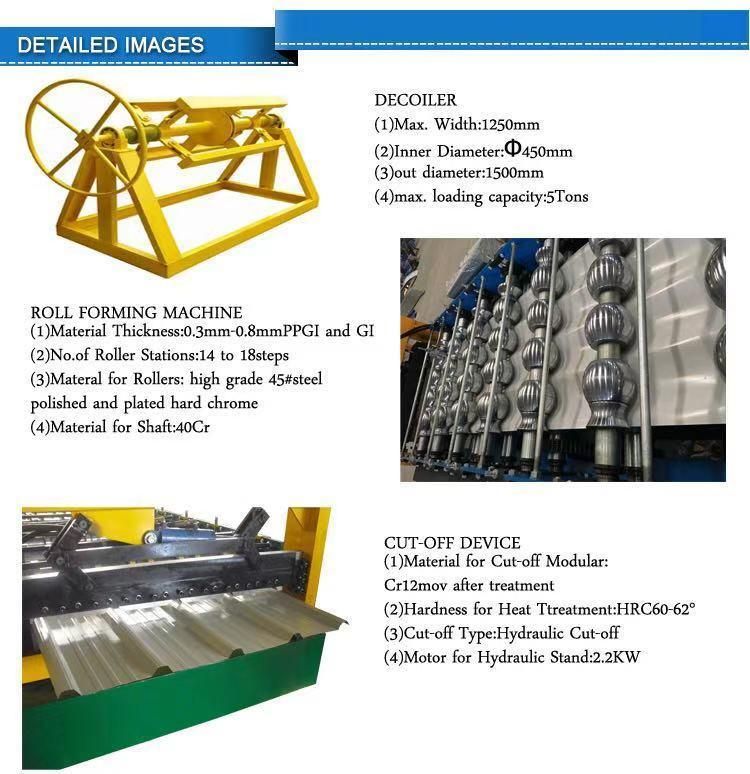

Main Accessories:
1. Main standing seam roofing forming machine;
2. 5 tons manual decoiler;
3. Hydraulic system;
4. PLC computer controlling system with touch screen;
5. Hydraulic forming cutter;
6. Protetive Cover;
7. Operational manual;
8.tools.
Usage: making standing seam roofing panel with straight and tapered-shaped for gardens,warehouses.
