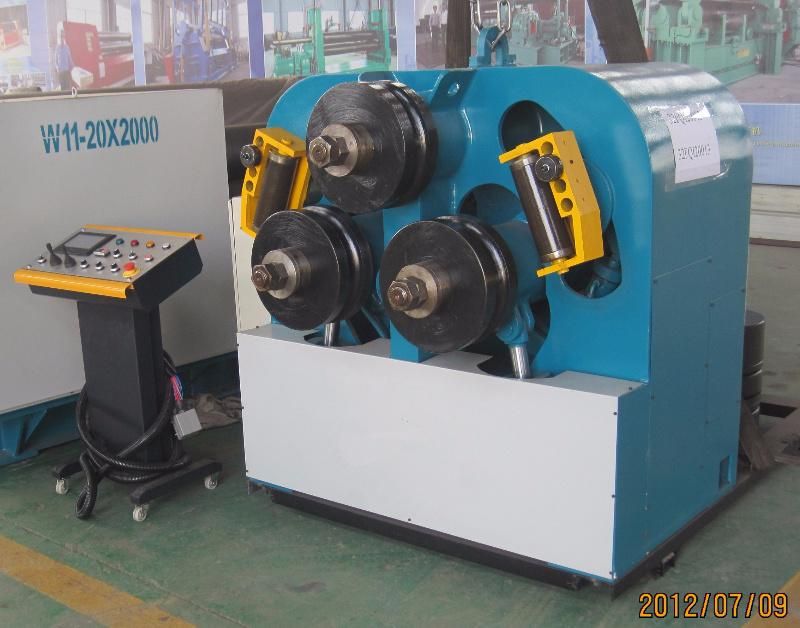

W24s Series Profile Bending Machine, Square Tube Bending, Tube Rolling Machine
Nanjing Prima CNC Machinery Co., Ltd.- Type：Rolling Machine
- Forging Forming Method：Mold Forging
- Power Source：Hydraulic Pressure
- Feature：Precision
- Certification：CCC, CE
- Warranty：24 Months
Base Info
- Model NO.：Profile Bending Machine
- Customized：Customized
- Advantage：Work Flexible
- Condition：New
- Name：HVAC Square Duct Former Auto Duct Machine Line 2
- Function：Round Pipe
- Other Function：Profile Bending Machine
- Rolling Function：W12 16X3200mm Hydraulic 4 Rolls Symmetrical Plate
- Transport Package：Wooden Case
- Specification：5200x2100x1560mm
- Trademark：Prima
- Origin：Nanjing, China
- HS Code：8456901000
- Production Capacity：125
Description
Angle leg-in maximum cross-section(mm) 50*5 80*8 90*10 100*10 120*12 140*16 Minimum bending diameter(mm) 800 1000 1100 1300 1600 1800 Minimum cross-section(mm) 20*3 30*3 35*3 36*5 38*4 45*5 Minimum bending diameter(mm) 400 550 500 600 700 760 Channel steel bent outward Channel model 8 12 16 20 25 28 Minimum bending diameter(mm) 600 800 800 1000 1100 1700 Within the curved channel steel maximum cross-section(mm) 8 12 16 20 25 28 Minimum bending diameter(mm) 700 900 1000 1150 1600 1700 Flat-along face maximum cross-section(mm) 100/18 150*25 180*25 200*30 220*40 250*40 Minimum bending diameter(mm) 600 700 800 900 1000 1200 Flat-along edge maximum cross-section(mm) 50*12 75*16 90*20 100*25 110*40 120*40 Minimum bending diameter(mm) 500 760 800 1000 1100 1300 Round tube bending maximum cross-section(mm) 42*4 76*4.5 89*5 89*8 114*5 159*5 Minimum bending diameter(mm) 500 750 900 900 1200 2000 Round steel bending maximum cross-section(mm) 38 52 62 75 85 90 Minimum bending diameter(mm) 450 600 600 800 1000 1100 Square tube bending maximum cross-section(mm) 45*3 60*4 70*4 80*6 90*8 100*10 Minimum bending diameter(mm) 750 900 1000 1200 1600 2000
2, Standard specification:
• 1 set of standard hardened and ground rolls (special steel)
• All rolls Planetary/Gear - Hydro motor Driven
• 3-axis hardened side supports with hydraulic forward-backward movement and mechanical up-down and right-left movement
• Side supports are suitable for angle iron bending leg in -Leg Out
• Portable control panel
• Horizontal and Vertical operation
• Body constructed of stress-relieved steel
• Overload protection on hydraulic and electrical systems
• Bottom rolls hydraulically adjustable with digital readout CNC Profile Rolling Bending Machine Wk24s for Pipe, Channel, Angle Steel Factory Directly Sale CNC Profile Rolling Steel Pipe Bending Machine W24s Series

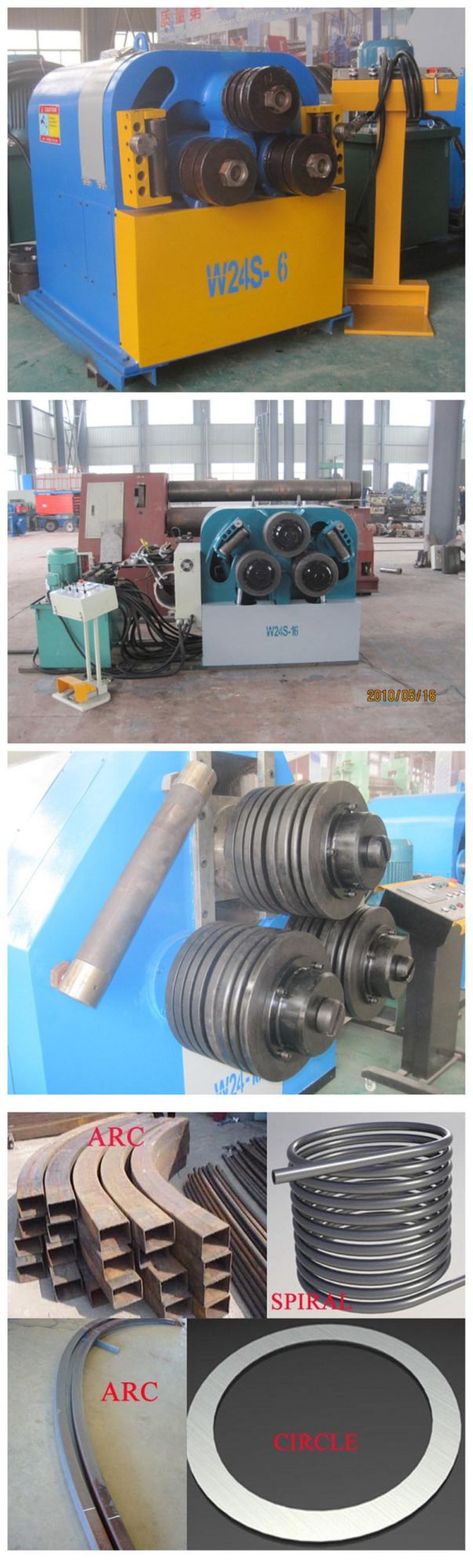

3, Main components list:Detailed Photos:
About Prima Factory:
Nanjing Prima CNC Machinery Co., Ltd. is located in the center of China's machine tool industry, Mingjue Industrial Park , Shiqiu Town, Lishui Zone, Nanjing Our company specializes in Table type CNC Fiber Laser cutting machine, exchangeable table cnc fiber laser cutting machine, press brake, shearing machine , ironworker, punching machine , HVAC ducting machine and other metal forming forging equipment development and sales, our product positioning in the middle-top quality class. We commit a modern enterprise management methods, committed management and meticulous management and zero defect operation. Based on the quality of the product management, its excellent quality, innovative design, reasonable price, and improve after-sales service to win the majority of Chinese and foreign customers praise. Primapress Brand sheet metal processing equipment. Widely used in automobile manufacturing, communications, computers and so on. Prima CNC insist on leading technology strategy, positioning in the "do-class machine, a first-class brand," the high level of long-term sales of CNC machine tools in the process, not only to cultivate a number of series of numerical control products, while cultivating a group of skilled, practical style of high-quality workforce. Enterprises have their own research and development institutions, with the domestic strong product research and development of skills. Primapress specializes in the export business, our company already has CE certification and have one international after-sales team , Our machines are widely exported to Southeast Asia, EU, USA , South America, the Middle East and other markets around 100 nations with good quality, suitable price, comprehensive after-sales service, was widely welcomed by customers and unanimously approved. Our company ambition is "build quality brand, do excellent machine",it is also the company's entrepreneurial spirit and look forward to domestic and overseas friends to visit. auto duct line 3 duct manufacture machine for hvac square tube pipe making Auto line III price HVAC duct making machine square duct seam closing machine,square duct seam closer,duct zipper W24s Series Profile Bending Machine, Square Tube Bending, Tube Rolling Machine
FAQ:
2, Standard specification: • 1 set of standard hardened and ground rolls (special steel)
• All rolls Planetary/Gear - Hydro motor Driven
• 3-axis hardened side supports with hydraulic forward-backward movement and mechanical up-down and right-left movement
• Side supports are suitable for angle iron bending leg in -Leg Out
• Portable control panel
• Horizontal and Vertical operation
• Body constructed of stress-relieved steel
• Overload protection on hydraulic and electrical systems
• Bottom rolls hydraulically adjustable with digital readout CNC Profile Rolling Bending Machine Wk24s for Pipe, Channel, Angle Steel Factory Directly Sale CNC Profile Rolling Steel Pipe Bending Machine W24s Series
3, Main components list:Detailed Photos:
About Prima Factory:
Nanjing Prima CNC Machinery Co., Ltd. is located in the center of China's machine tool industry, Mingjue Industrial Park , Shiqiu Town, Lishui Zone, Nanjing Our company specializes in Table type CNC Fiber Laser cutting machine, exchangeable table cnc fiber laser cutting machine, press brake, shearing machine , ironworker, punching machine , HVAC ducting machine and other metal forming forging equipment development and sales, our product positioning in the middle-top quality class. We commit a modern enterprise management methods, committed management and meticulous management and zero defect operation. Based on the quality of the product management, its excellent quality, innovative design, reasonable price, and improve after-sales service to win the majority of Chinese and foreign customers praise. Primapress Brand sheet metal processing equipment. Widely used in automobile manufacturing, communications, computers and so on. Prima CNC insist on leading technology strategy, positioning in the "do-class machine, a first-class brand," the high level of long-term sales of CNC machine tools in the process, not only to cultivate a number of series of numerical control products, while cultivating a group of skilled, practical style of high-quality workforce. Enterprises have their own research and development institutions, with the domestic strong product research and development of skills. Primapress specializes in the export business, our company already has CE certification and have one international after-sales team , Our machines are widely exported to Southeast Asia, EU, USA , South America, the Middle East and other markets around 100 nations with good quality, suitable price, comprehensive after-sales service, was widely welcomed by customers and unanimously approved. Our company ambition is "build quality brand, do excellent machine",it is also the company's entrepreneurial spirit and look forward to domestic and overseas friends to visit. auto duct line 3 duct manufacture machine for hvac square tube pipe making Auto line III price HVAC duct making machine square duct seam closing machine,square duct seam closer,duct zipper W24s Series Profile Bending Machine, Square Tube Bending, Tube Rolling Machine
FAQ:
Q1. Trade company or manufacturer?
A: We manufacturer
Q2. Is it easy to operate for the new user ?
A: very easy
Q3. What should I do when the machine is in trouble?
A: Take photos and videos and contact our sales at once.
Q4: How long does it take to learn how to operate a laser cutting machine?
A: A couple of hours
Q5: Is it harmful to human body when in operation ?
A: no,very safe. China supplier Tube Bending Machine, Pipe Profile Bending Machine, Section Bending Machine
