• Model NO.：ZYYX Series
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Guarantee Time：First Year Free, Lifetime Services
• Main Power：5.5kw

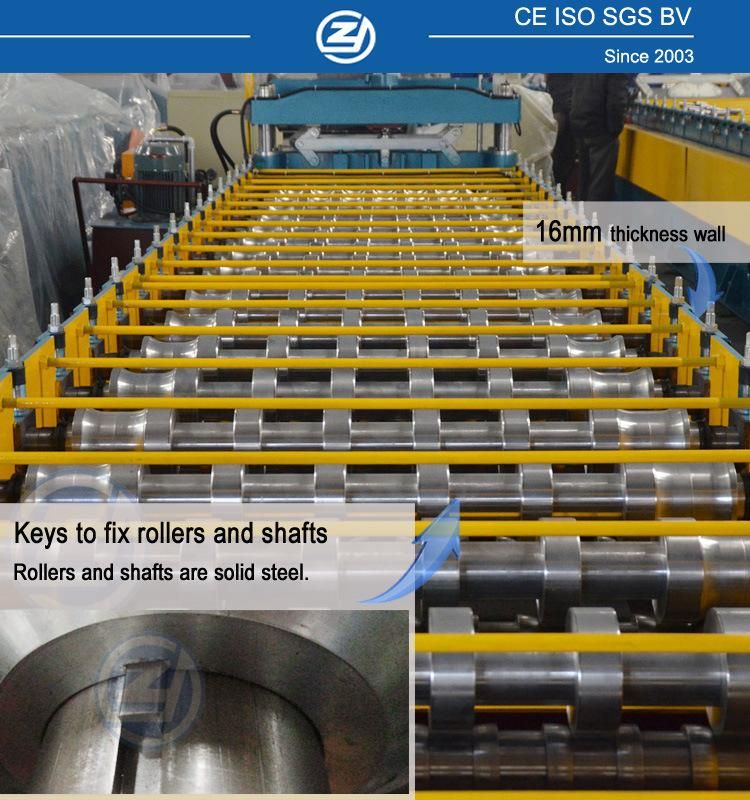

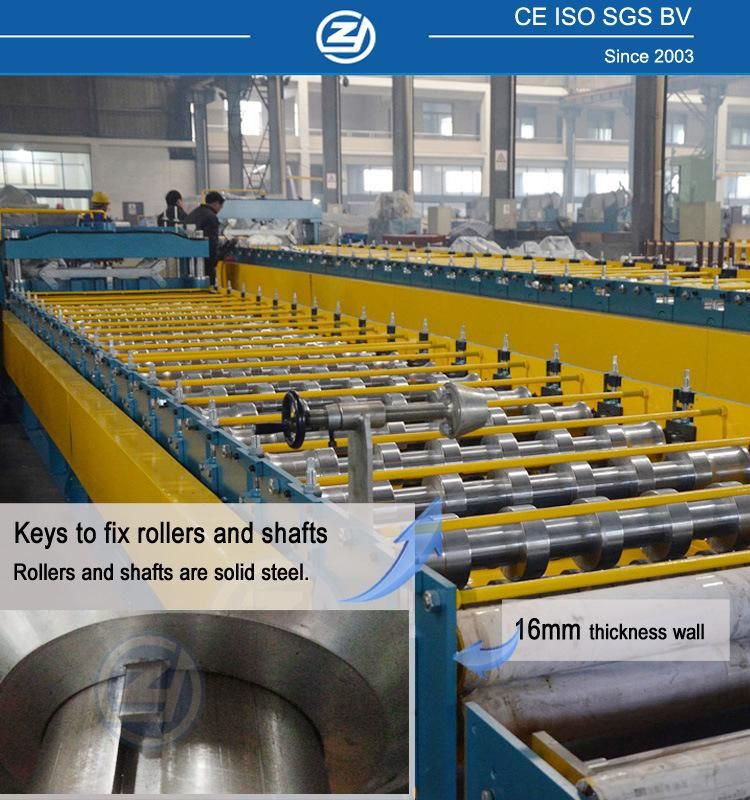

• Shafts for Rollers：Grand Twice, ID72mm Solid Steel
• Working Speed：About 1.5 - 5m,Min. for Option
• Controlling System：Mitsubishi PLC & Converter
• Machines Weight：About 9000kgs
• Machines Size：About 10m*1.7m*1.4m
• Operation Language：English or as Per Client`S Required
• Rollers Material：No.45 Forged Steel with Hard Chrome
• Tile Cutter：Cr12 Mould Steel with Quench Treatment
• Transport Package：Suitable for Sea Transport
• Specification：CE SGS BV
• Trademark：Zhongyuan
• Origin：China
• HS Code：84552210
• Production Capacity：15 Sets,Month

ItemSpecification
MaterialTypePre-painted steel coil & galvanized coilsThickness(mm)0.5-0.6Yield strength(mpa)235-345Roller material45#Chrome steelForming speed(m/min)About 15-20Output speed(m/min)1.5-5Speed adjusting modeAC FrequencyRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mould steel Length measurementEncoderControl modeMitsubishi PLCOperating modeButton + Mitsubishi Touch screenMain motor power(kw)5.5KWTotal power(kw)11KW
Components of machine
 Decoiler1set  Feeding & guiding device1setMain roll forming machine1setHydraulic pressing system1setHydraulic cutting system1setControlling system1setRun out table 1set
Process flow

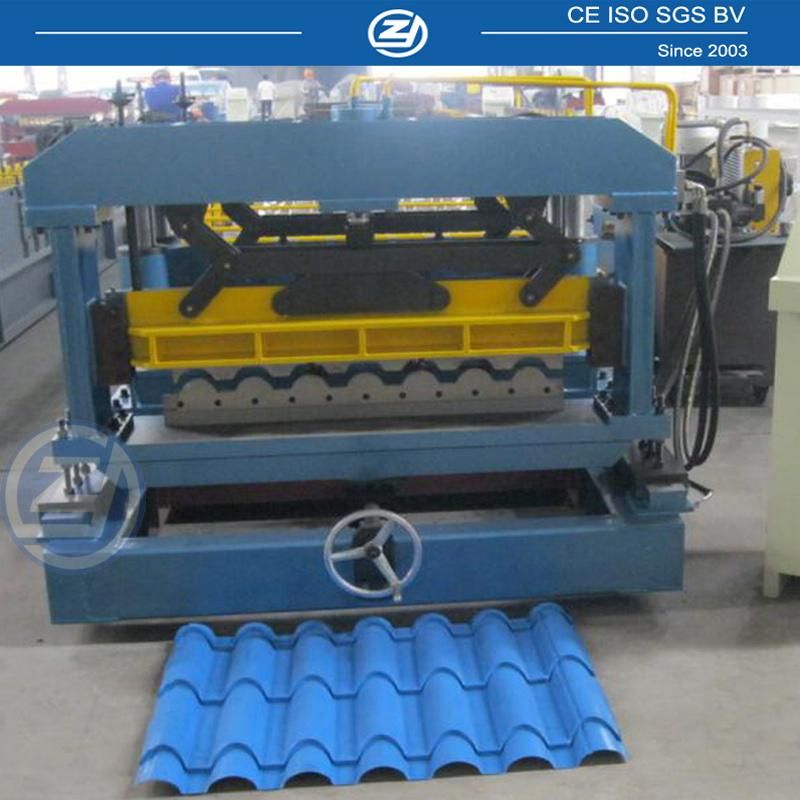

Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic pressing ---Hydraulic Cutting - product to run out table






Packing:
1. One 40feet container for loading one set tile formign machine with mechanical decoiler.
2. Main formiong machine body and decoiler is load naked (tighten to container with steel wire rope).
3. Spare parts and operating tools are loading in tooling box.

Delivery:
about 50 days after received advaced payment





We customized your machines!

To customize machine, we would love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker

Have no idea about them?
We will be glad to recommend the lacol popular profile for you----Just let us know your country!


Why us?
1.  Customize roll forming machines since 2003.
2.  Capacity: 12-15 sets/month
3.  Delivery: in only 5-8 weeks for urgent order
4.  Company occupies 6650, in which 5650 for workshops
5.  Have our own tool center. 12 sets CNC machines.
6. Technician can be sent to your factory to install the machine and train your workers
