• Model NO.：ZYYX
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Guarantee Time：First Year Free, Lifetime Services
• Machine Weight：About 8t
• Control System：Mitsubishi PLC & Converter
• Main Motor：7.5kw
• Power：380V, 50Hz, 3pH( or Made as Required)
• Operation Language：English or as Per Client`S Required
• Rollers Material：No.45 Forged Steel with Hard Chrome
• Cutter Material：Cr12 Mould Steel with Quench Treatment
• Cutting Style：Automatic Hydraulic Cut to Length
• Shafts for Rollers：Grand Twice, ID72mm Solid Steel
• Transport Package：1*40gp Container for One Machine
• Specification：CE SGS BV ISO
• Trademark：Zhongyuan
• Origin：China
• HS Code：84552210
• Production Capacity：10sets,Month

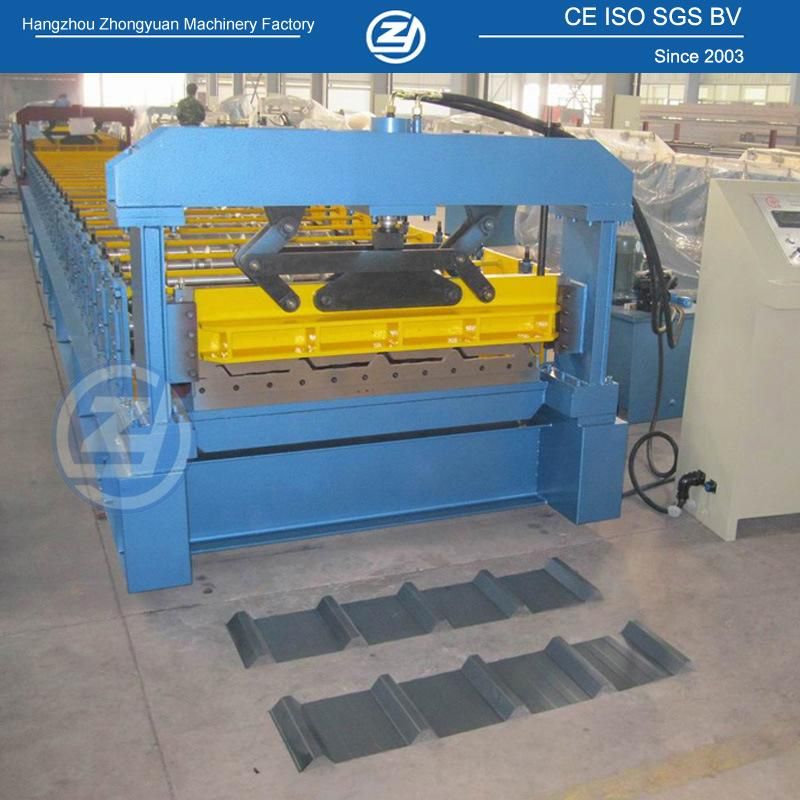

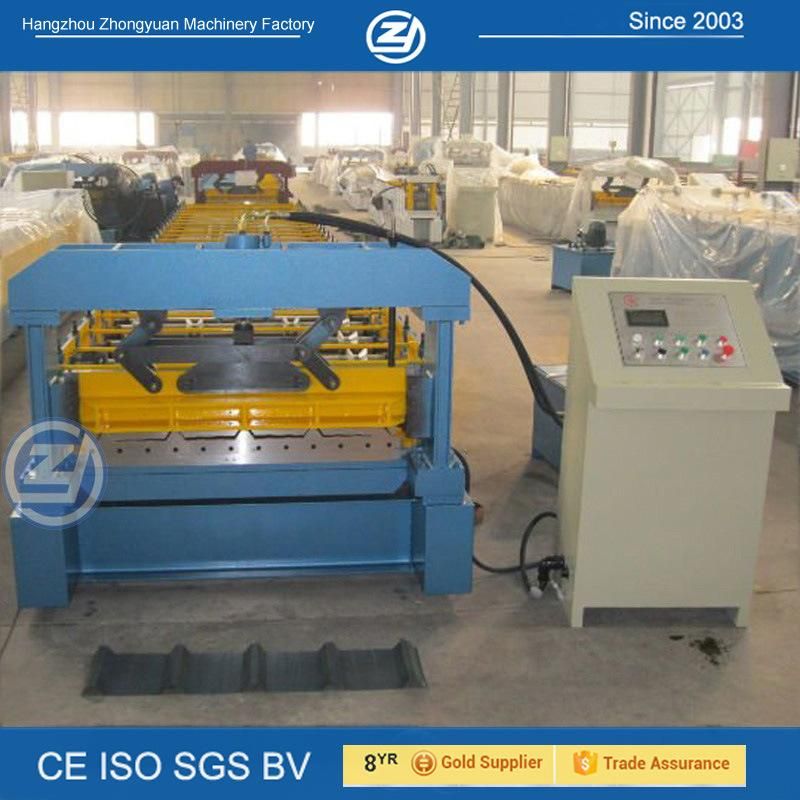

                                                                              Technical parameterItemSpecification
Raw MaterialPre-painted steel coil & galvanized coils0.3-0.7235-550Roller material45# steel , coated with ChromeShaft for rollers Solid shaft with 72mm,processed with cylindrical grinderForming speed(m/min)About 20-25Output speed(m/min)About 12 for 6m length sheetSpeed adjusting modeMitsubishi frequency transformerRoller drive                                               Decelerating motor + Chain driveCutting modeautomatic hydraulic cut to lengthCutter material Cr12 mould steelLength measurementNemicon EncoderControl modeMitsubishi PLCOperating modeButton + Mitsubishi Touch screenMain motor power(kw)7.5KWTotal power(kw)9.9 KW
Process flow
Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting - product to run out table

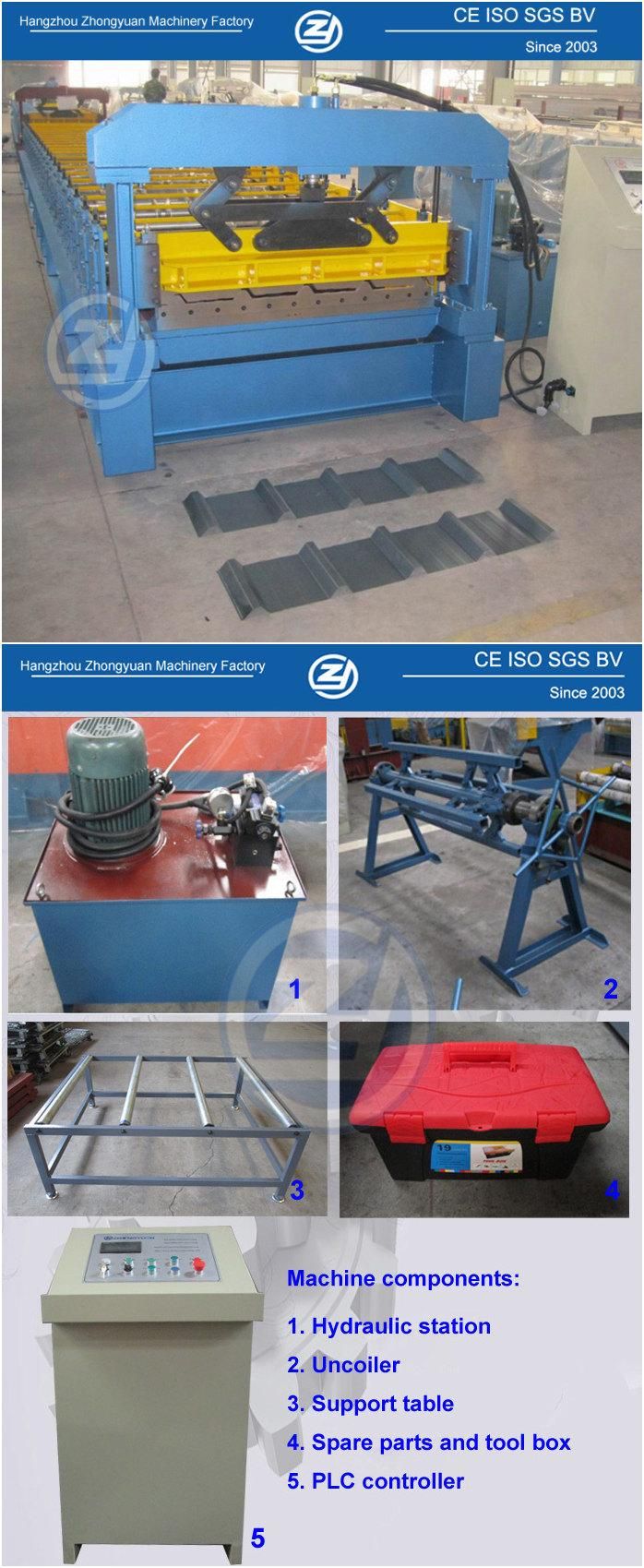

Components of machineDecoiler (manual decoiler and hydraulic decoiler for option)1set  Feeding & guiding device1setMain roll forming machine1setHydraulic cutting system1setControlling system1setRun out table (auto. Stacker for option)1set

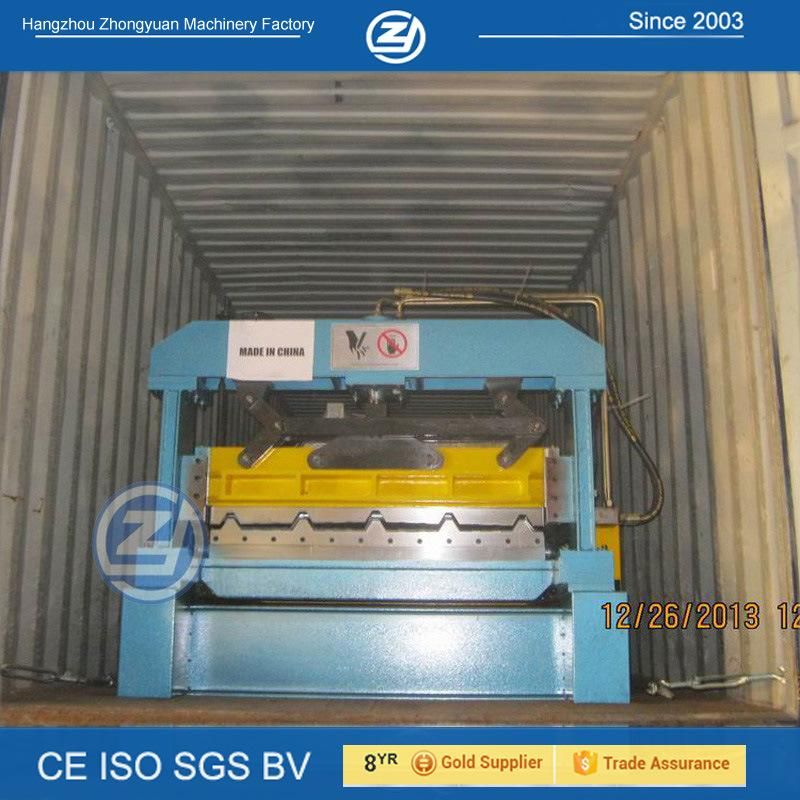

Packing:
1. One 40feet container for loading one set machine with mechanical decoiler.
2. Main machine body and decoiler is load naked (tighten to container with steel wire rope).
3. Spare parts and operating tools are loading in tooling box.

Delivery: about 50 days.




 We customized your machines!

To customize machine, we would love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker

Have no idea about them?
We will be glad to recommend the lacol popular profile for you----Just let us know your country!
