• Model NO.：KGPS-GW Series Melting Furnace
• Furnace Type：Medium Frequency Furnace
• Furnace Body：Aluminum or Steel Shell
• Furnace Capacity：50kg-30tons
• Power Factor：0.9
• Warranty：1 Year at Least
• Delivery Time：15-30 Days
• Installation Guiding：Yes
• Contruction Drawing：Yes
• Maintenance Service：Yes

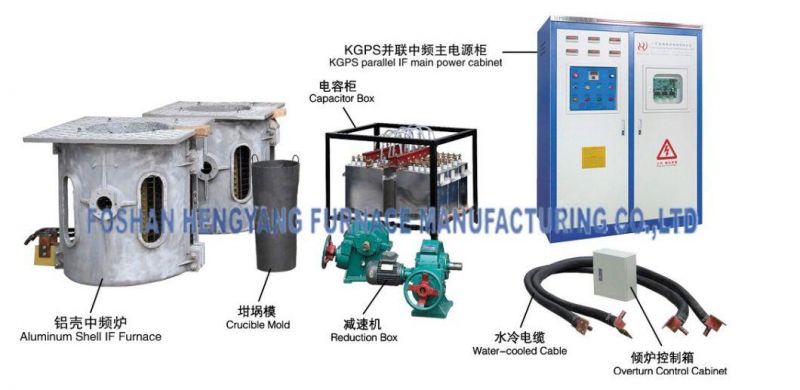

• Power Supply Cabinet：Kgps Power Supply
• Transport Package：International Export Packing Standard
• Specification：CE, ISO, SGS
• Trademark：HENGYANG
• Origin：China
• HS Code：8514200090
• Production Capacity：48sets,Month

Basic Info.

Model NO. KGPS-GW Series Melting Furnace Furnace Type Medium Frequency Furnace Furnace Body Aluminum or Steel Shell Furnace Capacity 50kg-30tons Power Factor 0.9 Warranty 1 Year at Least Delivery Time 15-30 Days Installation Guiding Yes Contruction Drawing Yes Maintenance Service Yes Power Supply Cabinet Kgps Power Supply Transport Package International Export Packing Standard Specification CE, ISO, SGS Trademark HENGYANG Origin China HS Code 8514200090 Production Capacity 48sets/Month

Product Description

Foshan Hengyang Furnace Manufacturing Co.,Ltd
 You can find different sizes furnace here and we are professional to match the right furnace for you according to your requirements. As soon as you have any interest,please don't hesitate to contact me,I believe you will get our warm service!



Advantages:
A. Equipped with built-in circulating water cooling system, equipment can be long-term work, no cleaning; Will not be damaged furring electrical power components; So-ting long machine life;

B. Configure automatic circuit breaker, with a reliable protection. Equipment power supply short circuit, open circuit, lack phase, power outages, discharge, and other circuit abnormalities are able to quickly and automatically cut off the power supply; In a timely manner to the equipment and network protection. To ensure the safety of the production operator

C. Our company is the largest enterprises in the industry in Guangdong. We are devoted to independent R&D as well as production. A rich variety of finished products and half-finished products with complete specifications and spare parts enable us to realize fast delivery. In addition, the independent after-sales department will provide follow-up services regularly as to all the products. Furthermore, many of our engineers have been engaged in the industry for over 20 years while 80% of the intermediate-frequency equipment manufacturing companies had not yet been established15 years ago


Product Specification/Models
Type: Induction Furnace
Usage: Melting Furnace
Power: 250KW
Input Voltage: 380V
Melting time: 0.25t/h
Electricity consumption: 760-700 Kw. H/t
Water consumption: 7t/h
Certificate: CE, ISO9001

We have stocks all the time so we can arrange sending out very fast!
We uphold "first quality, first customers, first service"
Sincerely provide service for you!





Furnace Capacity	Rating Power	Input Voltage	Input Phase	Input Current	Assorted Transformer	Output Voltage	Output Frequency	Melting Time	Volume	Weight
10-50KG	50KW	380V	3	80A	60KVA	750V	2.5KHZ	20-60Min	1.2 m³	350KG
100KG	100KW	380V	3	160A	120KVA	750V	1KHZ	20-60Min	6 m³	1500KG
150KG	100KW	380V	3	160A	120KVA	750V	1KHZ	30-70Min	6.5m³	1600KG
200KG	120KW	380V	3	192A	150KVA	750V	1KHZ	30-70Min	7.5m³	1700KG
300KG	130KW	380V	3	208A	150KVA	750V	1KHZ	30-70Min	8.5m³	1800KG
500KG	250KW	380V	3	400A	315KVA	750V	1KHZ	30-70Min	9.5m³	2300KG
600KG	350KW	380V	3	560A	400KVA	750V	1KHZ	40-80Min	11m³	2500KG
750KG	450KW	380V	3	720A	500KVA	750V	1KHZ	40-80Min	12m³	3800KG
1000KG	600KW	380V 380V-2	3/6	960A 480A	600KVA 800KVA	750V 1300V	0.8KHZ	50-90Min	13m³	4500KG
1250KG	800KW	380V 380V-2	3/6	1280A 640A	800KVA 1250KVA	750V 1300V	0.8KHZ	50-90Min	14m³	5000KG
1500KG	1000KW	380V 380V-2	3/6	1600A 800A	1250KVA 1500KVA	750V 1300V	0.8KHZ	50-90Min	15m³	5500KG
2000KG	1250KW	660V 380V-2	3/6	1120A 1000A	1500KVA 1800KVA	1300V	1300V	50-90Min	17m³	6000KG
3000KG	1500KW	660V 380V-2	3/6	1350A 1200A	1800KVA 2000KVA	1300V	1300V	60-100Min	20m³	7000KG
5000KG	2500KW	1000V 660V-2	3/6	2000A 1120A	3000KVA 3500KVA	1300V	1300V	60-100Min	23m³	8500KG

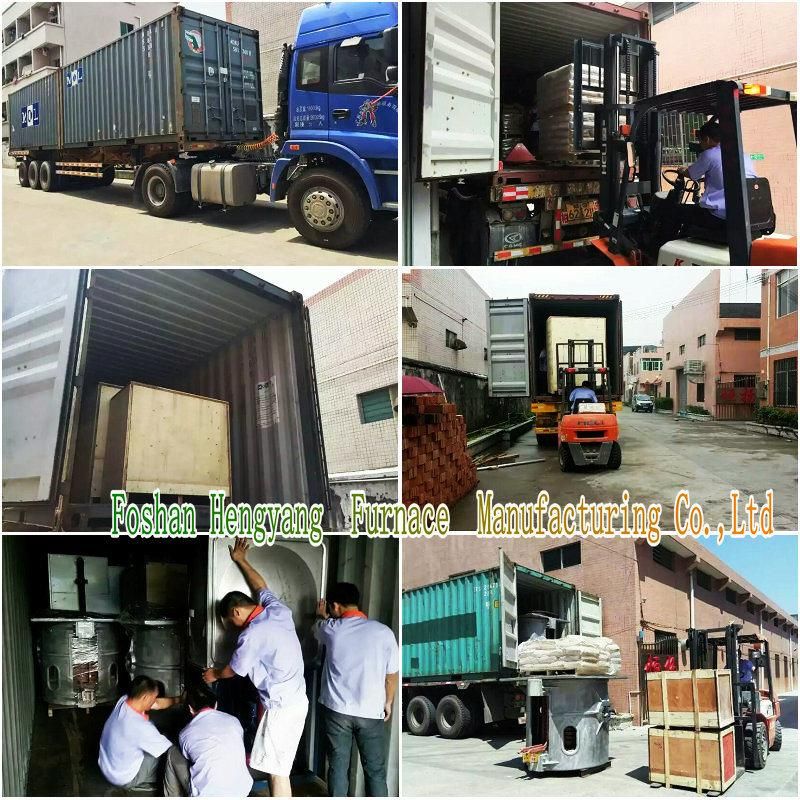

Packing & Delivery:


Company Profile
We are one of the largest leading intermediate frequency furnace manufacturers in China. We have been ISO 9001 and CE certified, achieved the quality management of international practice. Our company had been awarded High Quality Product and Faithful Organization Prizes by our government.

Our main product includes Energy Saving Intermediate Frequency Melting Furnace, Intermediate Frequency Induction Furnace, Metal Furnace, Melting Furnace, Induction Heating Furnace etc. Our Product is widely applicable to melting, warming or insulating of steel, cooper, aluminum, zinc, gold, silver or other metal or alloy, heating treatment before forging, sintering and tube-bending forming, and quenching, tempering or other heating of mechanical parts in casting and melting industries.

We are committed to deliver "turnkey" project covering not only quality and reliable products but also application related products but also application related process, technology and operator training for free f charge. We have separate after-sales department to perform regular follow-up service and reassure customers by directly solving of any problem emerged in practical production.


Our Services:
(1). Pre-sale service:

• 1. recommend the most suitable machine for customers, according to their requirements.
• 2. Inquiry and consulting support.
• 3. Sample testing support.
• 4. View our Factory.

(2). In-sale service:

• 1. Strictly manufacture the machine, according to relevant technical standards.
• 2. Take run test, according to relevant equipment test run regulations.
• 3. Strictly check up the machine, before delivery
• 4. Delivery on time.
• . After-sale service:
• 1.  The purchased equipment to the buyer through life time maintenance services.
• 2. Ensure that implements preferential price for equipment spare parts
• 3.After receiving the user fault notification shall respond within 2 hours, arrive at the scene within 24 hours traffic permitting, and remove specific weekday failure to resume production.
• 4. Our company after sales service up to 25 engineer, the major provinces and cities and regions across the country are equipped with after-sales service network
• 5. Strictly check up the machine, before delivery
