• Model NO.：CY-VTC-16-D
• Sputtering Time：1-120 Seconds
• Specimen Chamber：Quartz Glass Tube
• Specimen Stage：Dia.50mm
• Name：Magnetron Vacuum Coater
• Transport Package：Wooden Box
• Specification：dia. 50mm
• Trademark：CY
• Origin：Zhengzhou, China
• HS Code：85141090
• Production Capacity：110 Sets Per Month

Basic Info.

Model NO. CY-VTC-16-D Sputtering Time 1-120 Seconds Specimen Chamber Quartz Glass Tube Specimen Stage Dia.50mm Name Magnetron Vacuum Coater Transport Package Wooden Box Specification dia. 50mm Trademark CY Origin Zhengzhou, China HS Code 85141090 Production Capacity 110 Sets Per Month

Product Description

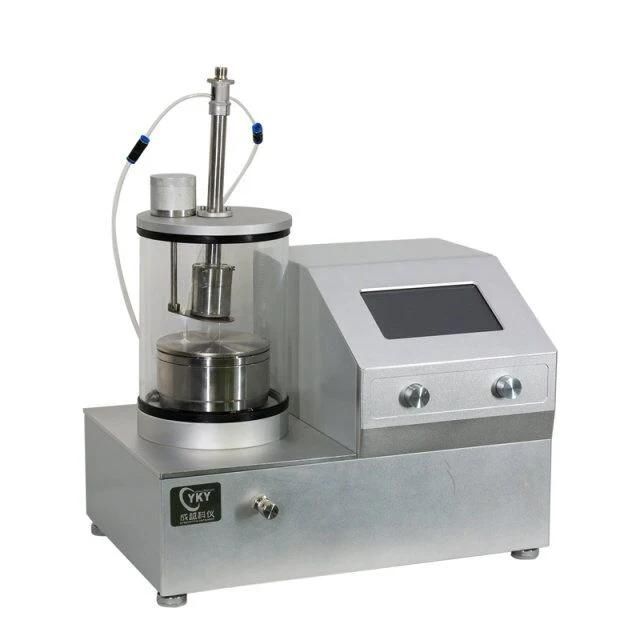

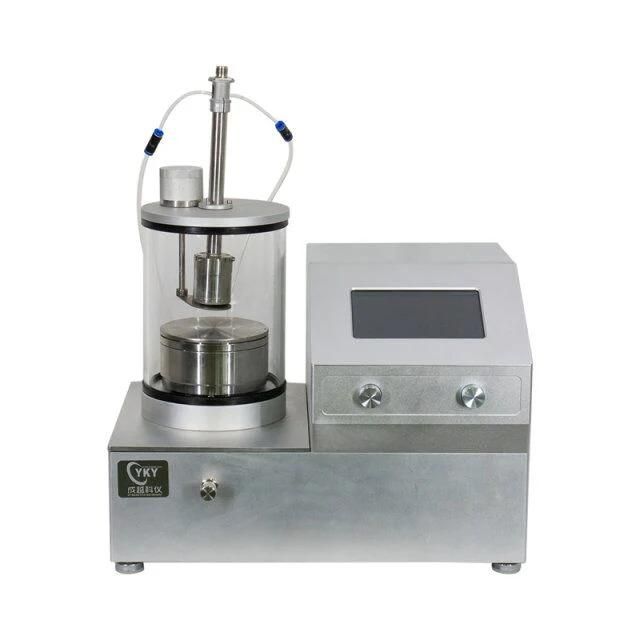

Compact DC Magnetron Sputtering Coater and Gold Target for Noble Metal Coating
is a Desktop Magnetron Plasma Sputtering Coater with a 2" target head, height adjustable sample holder. Especially for coating conductive gold film for SEM sample. It is a compact plasma sputtering coater designed for metallic coatings, such as gold, platinum, and silver. One 2" gold (4N) target is included.


Input Voltage	220 VAC 50/60Hz, 200W
Output Voltage	500 VDC
Sputtering current	0 - 50 mA (max.) adjustable sputtering current Digital current meter (mA) Over-current protection
Sputtering time	1 -120 seconds adjustable

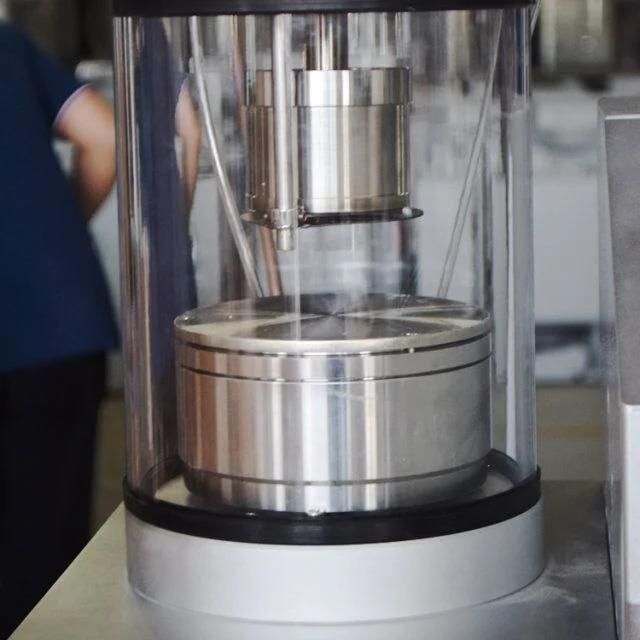

Specimen Chamber	Quartz glass tube, 165 mm OD. x 152 mm ID x 145 mm Height
Specimen Stage	2" diameter height adjustable, 30 - 80 mm from the sample to the target
Sputtering Head	2" magnetron sputtering head. One manually operated shutter for target protection.

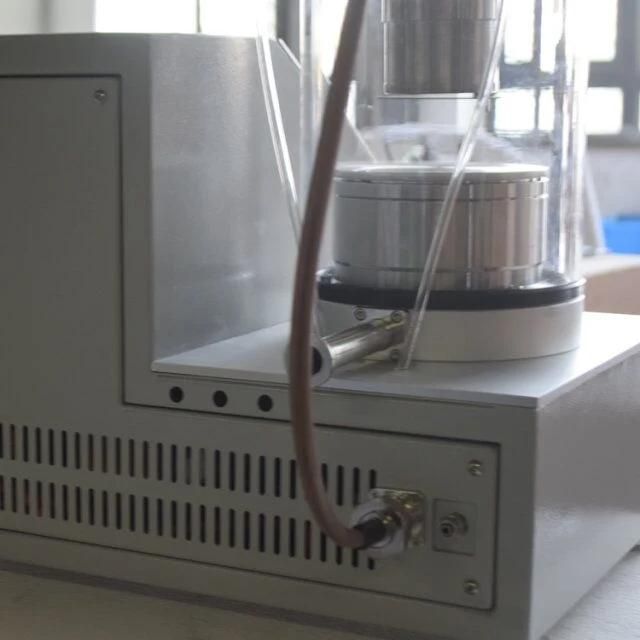

Vacuum Pressure	Digital vacuum pressure meter (Pa) KF25 vacuum pump connector Ultimate vacuum pressure 1 Pa by the mechanical pump. The Pump is not included.
Vacuum pump (optional)	The double stage rotary vane pump EQ-FYP is recommended.
Input gas	One 1/4 Swagelok type tube fitting is installed for connecting the inert gas cylinder. One metering valve is in the front panel for adjusting the input gas.
Target	One 50mm Dia. x 0.12mm gold target is included.
optional	water chiller vacuum pump
Product Dimension	L 460 mm × W 330 mm × H 520 mm
Shipping Weight & Dimension	80 lbs 45" x 45" x 40"
Compliance	CE Certified
