• Model NO.：YA YK
• Specification：Customized
• Trademark：DENP
• Origin：Shanghai
• HS Code：84742090
• Production Capacity：500sets,Y

Basic Info.

Model NO. YA YK Specification Customized Trademark DENP Origin Shanghai HS Code 84742090 Production Capacity 500sets/Y

Product Description

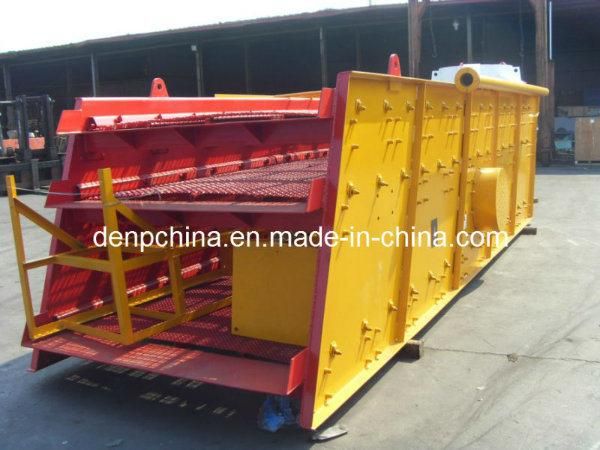

Best Quality Vibrating Screen for Crusher Plant Classifier Separator

Product Desription:

The moving road of this screen is similar as a circle, so it is called Circular Vibrating Screen. Circular Vibrating Screen is of multilayer and high efficiency. The eccentric shaft vibration exciter and eccentric block helps to adjust amplitude. This kind of screen is of long screening stream line and more sieving specifications. So it is widely used for grading in the industries of quarry, building material, transportation, energy, chemical industry, etc.



Vibrating Screen Advantages:
1.advanced structure, strong and durable
2.flexible connectivity, smooth operation
3.simple structure, convenient maintenance
4.low power consumption, low noise
5.high screening efficiency, the largest handling
6.long life, without maintenance for long term
7.low noise, long life
8.parts have strong versatility

Vibrating Screen Working Principle:
Motor through Vbelt makes vibrator eccentric block to rotate at a high speed. Rotary eccentric block produces big centrifugal force, stimulates screen box to make round motion at some amplitude, materials on the inclined sifter receive impulse from the screen box and produce continuous casting movement, in the process of touching between materials and sifter granules that is less than sieve pore is through sieve and realizes grading.

Vibrating Screen Structural Features:
1. Ring groove rivet connections, advanced structure, strong and durable.
2. To connect sieve and the sieve beams by using high strength bolts, simple structure and convenient maintenance.
3. To use eccentric block as the excitation power, strong power, low power consumption and noise.
4. Small amplitude, high frequency, large angle structure, high screen efficiency, and high processing capacity.
5. Vibrator uses a large clearance bearings, thin oil lubrication, low noise, long service life. universal parts and easy maintenance.


Model	Layer	Sieve Area(M 2 )	Screen Mesh Size(MM)	Screen Spec(MM)	Feed Size(MM)	Capacity(T/H)	Vibrating Frequency(R/Min)	Double Amplitude(MM)	Motor Power(kw)
2YA1230	2	3.6	3-50	1200*3000	200	20-80	850	8	5.5
3YA1230	3	3.6	3-80	1200*3000	200	30-90	850	8	7.5
2YA1548	2	7.0	5-50	1500*4800	400	50-190	970	8	15.0
3YA1548	3	7.0	5-50	1500*4800	400	50-200	970	8	15.0
2YA1860	2	10.8	5-80	1800*6000	400	50-280	970	8	18.5
3YA1860	3	10.8	5-80	1800*6000	400	50-300	970	8	18.5
4YK1860	4	10.8	5-80	1800*6000	400	50-300	970	8	22.0
2YK2160	2	12.81	5-100	2100*6100	400	100-380	730	8	30.0
3YK2160	3	12.81	5-100	2100*6100	400	100-380	730	8	30.0
4YK2160	4	12.81	5-100	2100*6100	400	100-380	730	8	30.0
2YK2460	2	14.64	5-150	2400*6100	400	120-430	730	8	37.0
3YK2460	3	14.64	5-150	2400*6100	400	120-430	730	8	37.0
4YK2460	4	14.64	5-150	2400*6100	400	120-430	73

FAQ:



Installation:

If the buyer ask the seller to send the technicians to guard to install the machines in the site, the buyer should take all the charges for the technicians and pay the salary.



What about Warranty?

Ours Warranty is 1 year for whole machinery Spare parts. For wear parts, we guarantee the high quality parts for long-term supply for Crusher.



If you want us recommend a suitable type and best offer for you ,please let us know as follows:

a. you only need one crusher unit or a whole crushing line? (Include the feeder ,crusher, screen, conveyor and so on)
b.what is the max size of the stone (mm/inch)?
c.what is the output size you need?

d.what is the crush material? And production capacity(tons per hour)?



Is your company an OEM factory or a trading company?

We are the manufacturer of wear parts for crushers to provide wear-resistant parts to many well-known enterprises at home and abroad. Welcome to visit our factory, we will become your excellent supplier.



Quality?

Stable high-end products,DENP brand parts are high-quality products.



Shipment?

Try to ensure delivery a 20GP within 40 days. If the order is particularly urgent, it depends on the production plan at the time.



Payment?

30% T/T advanced and the balance of 70% T/T before shipping.



How much is the remaining capacity of your plant?

On the one hand, we are working hard to increase the actual production capacity to reach the theoretical capacity target of 10,000 tons per year. On the other hand, we are adjusting the production plan to try to meet the demand for quality distributors like you.
