Steel Plasma Pipe Cutting Machine

Shanghai Tayor Heavy Industry (Group) Co., Ltd.
  • Customized：Customized
  • Layout：Coaxial
  • Cutting Material：Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
  • Automatic Grade：Automatic
  • Power Source：Electric
  • Cutting Mode：Plasma Cutting

Base Info

  • Model NO.：CNCXG1000
  • Flame Cutting Thickness：5-60mm
  • Flame Max Beveling Angle：60
  • Pipe Chuck：3 Jaws Concentric Chuck
  • Number of Control Axes：2-6
  • Driving Motor：Panasonic
  • Type：Pipe and Tube Bending Machine
  • Application：Machinery & Hardware
  • Type for Cutting Machine：Flame Cutting Machine
  • Transport Package：Wooden Case and Tray
  • Specification：CE, CCC, ISO
  • Trademark：TAYOR
  • Origin：Shanghai, China
  • HS Code：8456901000
  • Production Capacity：500,Year

Description

Technical specificationModelCNCXG600CNCXG800CNCXG1000CNCXG1250Cutting Pipe Diameter (mm)Φ50-630Φ60-800Φ100-1000Φ200-1250Pipe length(mm)2000-12000Cutting Speed (mm/min)80-1800Cutting Thickness(mm)Oxy-fuel:5-60mm, Plasma:1-25mmPlasma max beveling angle±45°Oxy-fuel max beveling angle±60°Basic components Pipe Chuck3 jaws concentric chuckCutting ModeOxy-fuel and PlasmaNumber of Control Axes2-6Driving MotorServo mototAvailable Plasma PowerHypertherm, Thermadyne, Kjellberg ,TAYOR LGKOther DataOperation languageEnglish or ChinesePower voltage3×380V±10% or up by user's local condition
Cutting Sample

Steel Plasma Pipe Cutting Machine

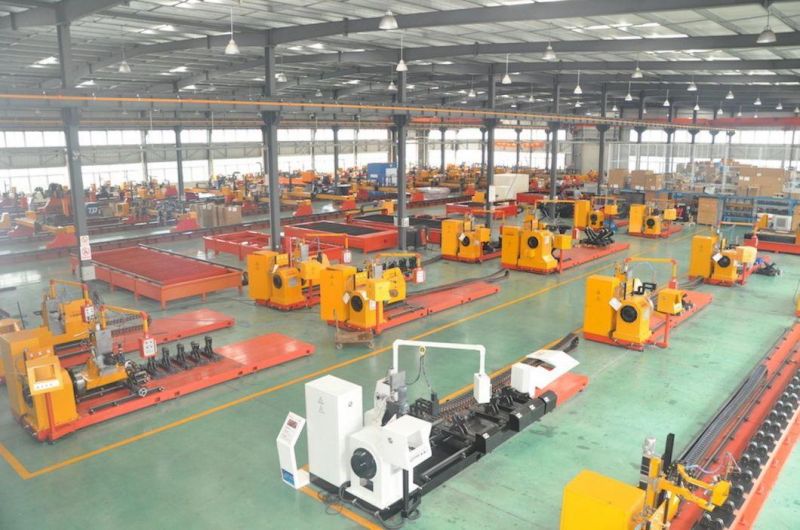

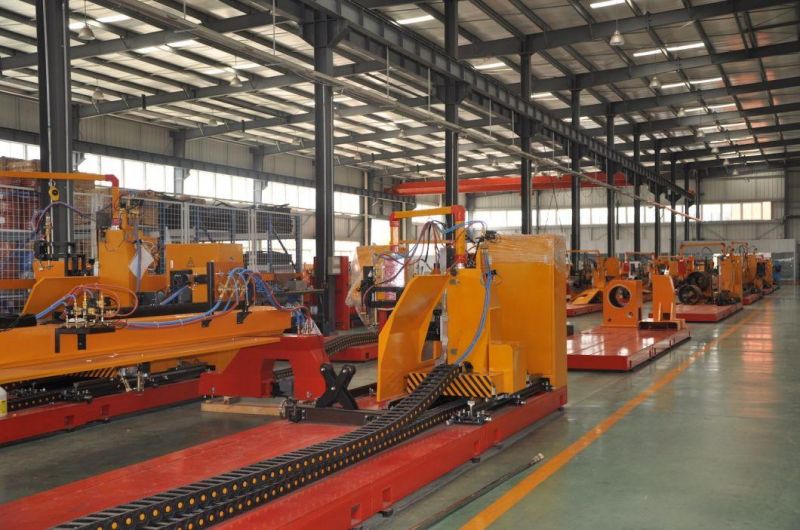

Workshop
Steel Plasma Pipe Cutting Machine
Steel Plasma Pipe Cutting Machine

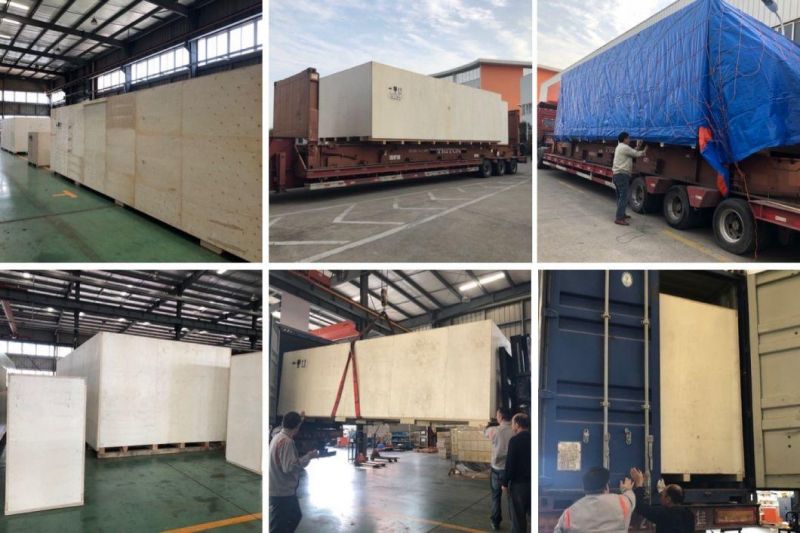

Packing and Delivery
Steel Plasma Pipe Cutting Machine

User's Site

Steel Plasma Pipe Cutting Machine
