• Model NO.：DX840
• Customized：Customized
• Advantage：Use Widely
• Condition：New

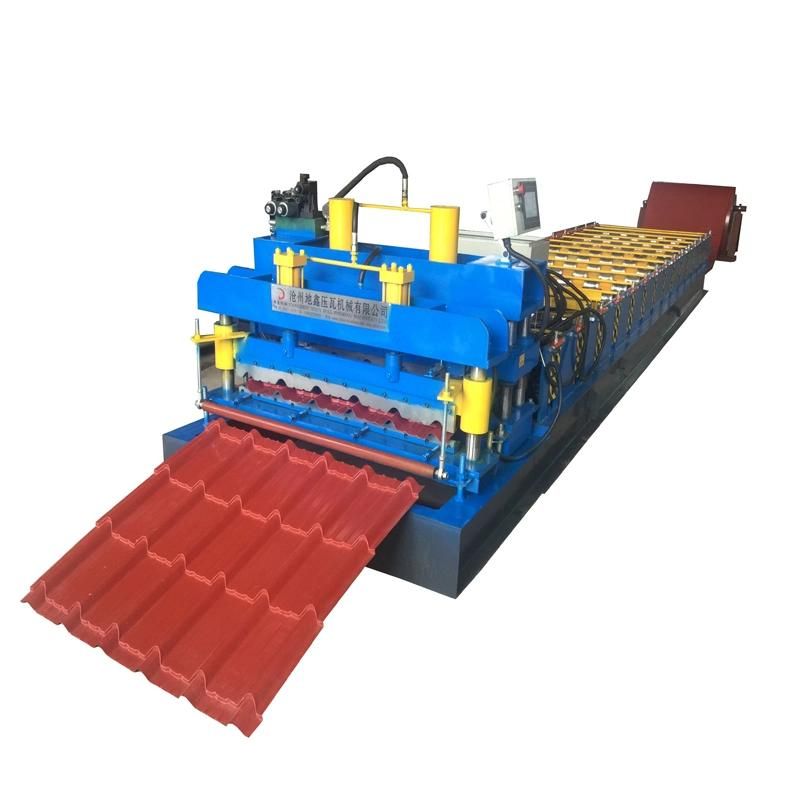

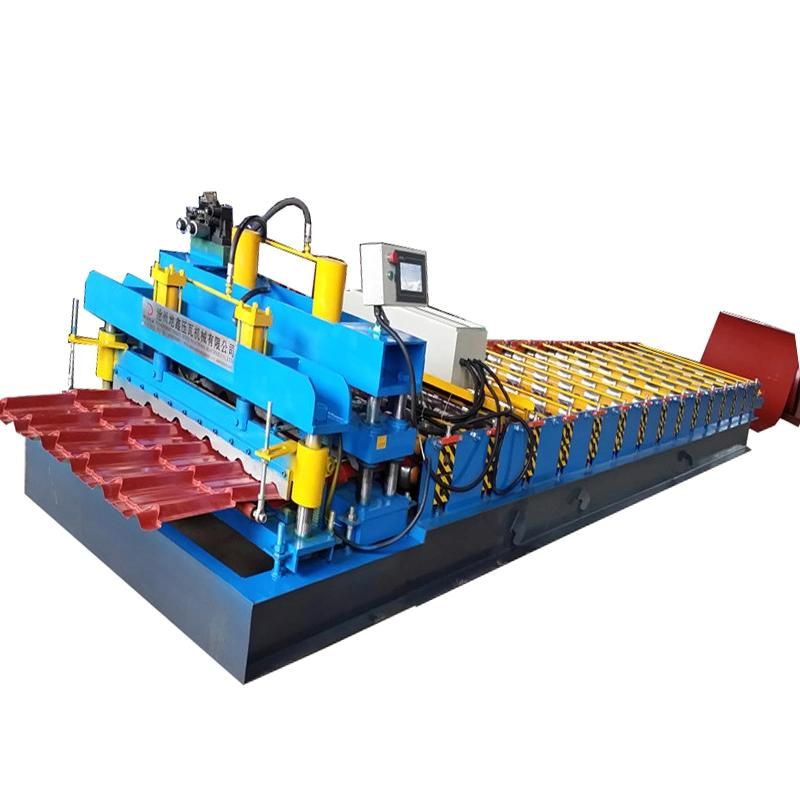

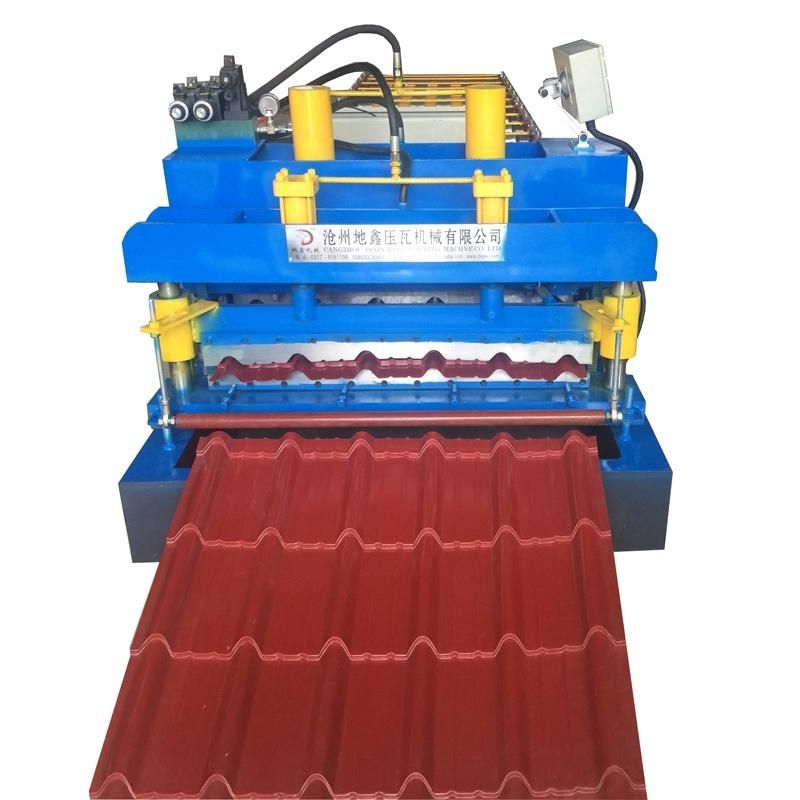

• Mode：Galvanized Roof Sheet Making Machine
• Auto：Fully Automatic
• Feeding Material：Metal Coil
• Feeding Width：1000mm
• Feeding Thickness：0.25-0.7mm Thickness
• Production Speed：2-4m,Min
• Roll Forming Speed：8-12m,Min
• Control system：PLC Computer Control with Inverter
• Size：6500mm*1500mm*1500mm
• Weight：3.2 Tons
• Transport Package：Waterproof Package
• Specification：CE SGS ISO
• Trademark：DIXIN
• Origin：China, Hebei
• HS Code：84552210
• Production Capacity：50 Sets Per Month

Article No.Item NameSpecification       1Width of feeding material1250 mm coil sheet       2 Thickness of feeding material0.3-0.8 mm coil sheet       3Roller station13 stations       4Shaft Diameter 75 mm       5Productivity3-5 m/min       6Rollers' material45# steel with 0.05mm chrome       7 Shaft material 45# steel with 0.05mm chrome       8Weight6.5 ton       9length6.5 m      10Voltage380V 50Hz 3phases      11Control PLC      12Decoiler8 tons      13Motor7.5 kw      14Driving wayChain transmission      15Chain size1.5 inch      16Cutting systemHydraulic cutter




3. One manual uncoiler for free and other accessary

4. Loading in a 20 foot container.

5. Service.

Engineer overseas service available
