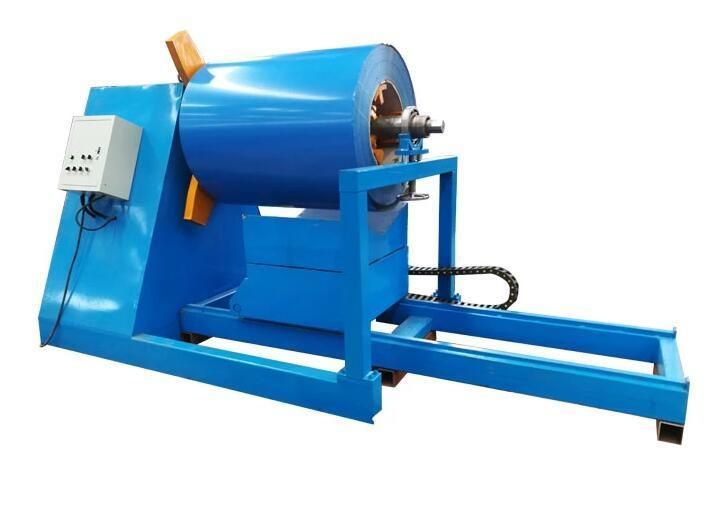

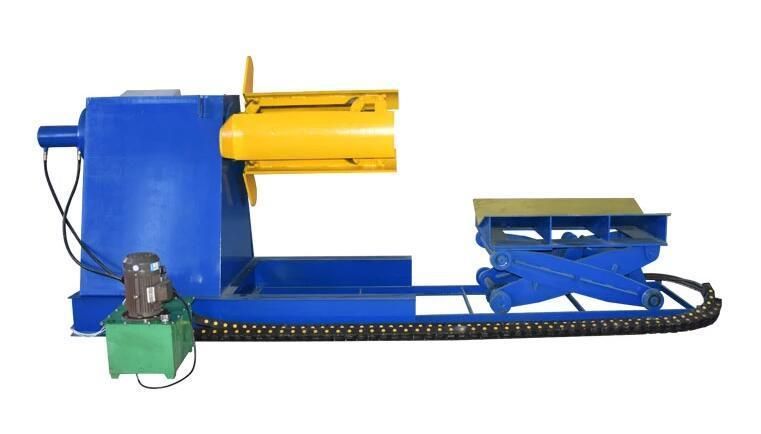

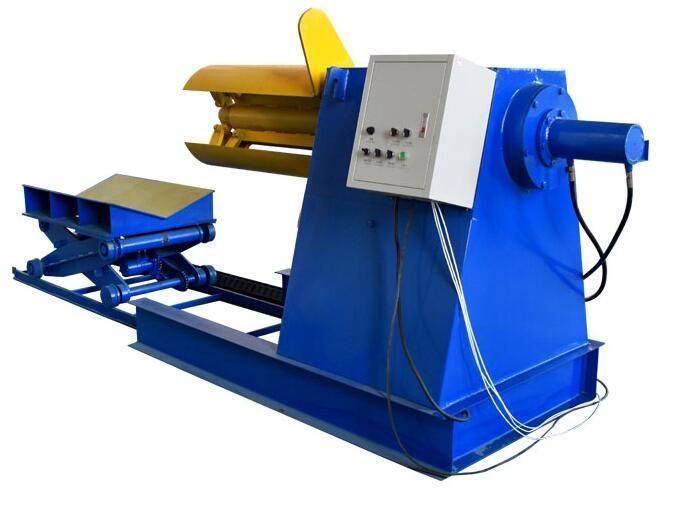

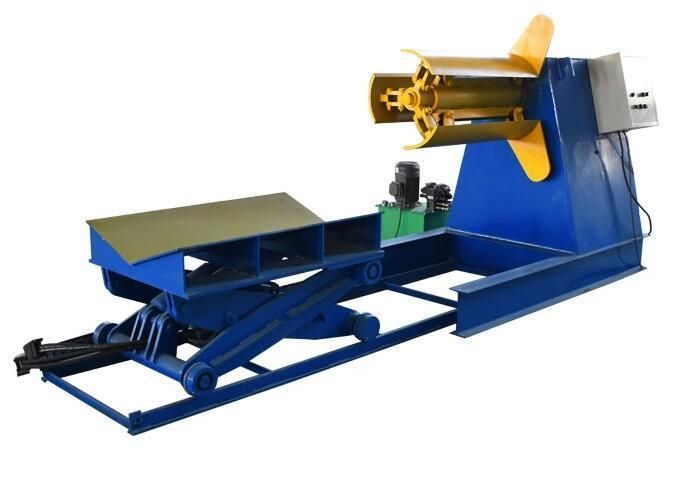

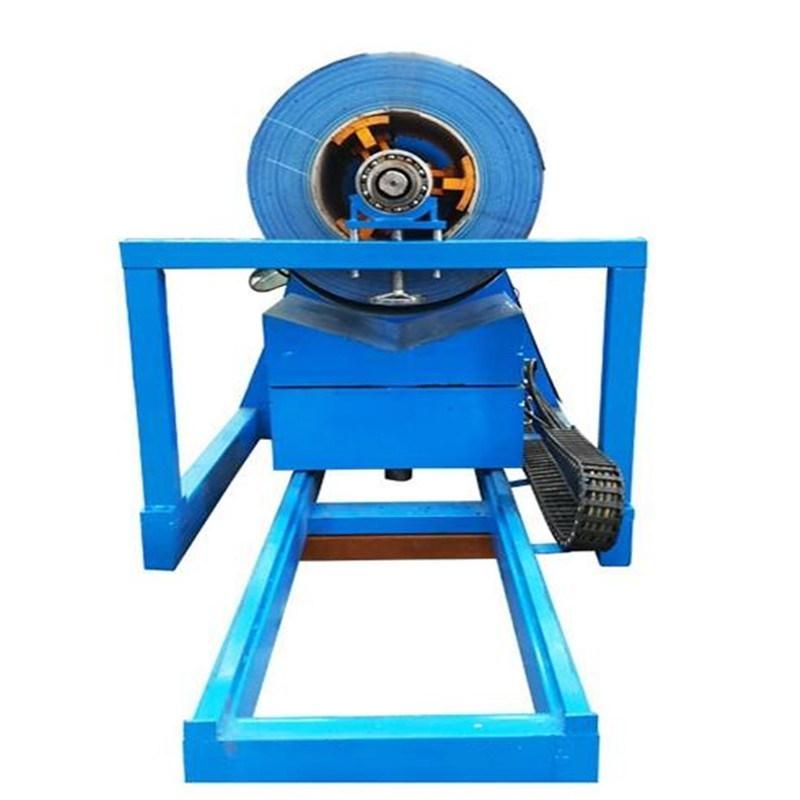

Good Quality Hydraulic Decoiling and Feeding Machine with or Without Coil Car
Cangzhou Dixin Roll Forming Machine Co., Ltd.- Type：Rolling Machine
- Forging Forming Method：Mold Forging
- Power Source：Hydraulic Pressure
- Feature：Automation
- Certification：CCC, ISO9001, CE
- Warranty：12 Months
Base Info
- Model NO.：DX decoiler
- Customized：Customized
- Advantage：Work Flexible
- Condition：New
- Name：Hydraulic Decoiling and Feeding Machine with or W
- Width：up to 2000mm
- Thickness：0.2-2.0mm, 0.3-3.0mm, 1.0-6.0mm, 2.0-12.0mm
- Max. Coil Weight：35 Tons Max
- Coil I.D：508mm,610mm,760mm
- Coil O.D：2000mm Max
- Arbor Diameter：150mm,180mm,220mm
- Drive：380V,50Hz,3pH
- Decoiling Mode：Over,Under
- Direction：According to Requirement
- Transport Package：Water-Proof Packaging, Covered with Plastic Film
- Specification：DX DECOILER
- Trademark：DIXIN
- Origin：Botou Hebei China
- HS Code：845522
- Production Capacity：20 Set Per Year
Description
hydraulic Pump Station :3KW Bearing weight: 10T feeding roller's width: 1350mm Out line dimension of machine: 2*5*2.5m Total weight: 4.8T
For use at a later date.
Line composition:
Entry coil car - Uncoiler - Loop bridge - Side guider - Slitter head - Scrap winder - Loop bridge - Tension station - Recoiler - Exit coil car
Hydraulic system
Electrical system
Technical parameters:
Material: Cold rolled, hot rolled carbon steel, stainless steel, galvanized steel, silicon steel coil, p/o coil, aluminium coil
Width: Up to 2000mm
Thickness: 0.2-2.0mm, 0.3-3.0mm, 1.0-6.0mm, 2.0-12.0mm
Max. Coil weight: 35 tons max
Coil I. D.: 508mm/610mm/760mm
Coil O. D.: 2000mm max
Arbor diameter: 150mm/180mm/220mm
Drive: 380V/50Hz/3PH
Decoiling mode: Over/Under
Direction: According to requirement
Line speed: Up to 120 m/min
Max. Number of slits: 2-30 cuts
Narrowest strip width slit into: 10-25mm
Width cutting accuracy: ± 0.05mm(strip thickness≤ 1), ± 0.1mm(strip thickness>1.5mm)
Slitting burr: 5% of the thickness of material
Installation and training:
A. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
B. Without visiting, we will send you user manual and video to teach you to install and operate.
C. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things
Our Services:
1. Customers` Design, Size, Color&Logo are accepted.
2. With15years professional manufacture experience
3. Prompt Delivery&Competitive Price
4. Main markets: Middle East, Europe, North America, Africa, Southeast Asia.
After-sales service:
1. We provide the technical support for whole life of our machines.
2. If buyers need the technician to go abroad, we will arrange the technician,
But the buyers should take all the cost, including visa, roundtripticket etc.
REMARKS:
1 The machine can according to your requirement to set the color
2 Within in one year if any parts go broken we will send new ones to replace for free
