• Model NO.：DX 840,1050,1045,760
• Customized：Customized
• Advantage：Easy to Maintenance
• Condition：New
• Item Name：Dx Electric Curving Making Machine
• Feeding Material：Trapezoidal Roof Sheet Panel
• Feeding Thickness：0.2-0.8mm
• Forming Speed：2-4m,Min
• Crimping Radian：Adjustable by PLC Computer
• Control Part：Delta PLC Control with Inverter; Frequency Convert
• Curving Mold：Cr 12 High Quenching with High Temperaute 62
• Max Production Order：Three
• Special Design：Yes
• Machine Size：3000mm*1500mm*1600mm
• Transport Package：Fit for Container Loading
• Specification：DX 840 or as your panel drawing
• Trademark：DX
• Origin：China, Hebei
• HS Code：84552210
• Production Capacity：27 Sets Per Month

Basic Info.

Model NO. DX 840/1050/1045/760 Customized Customized Advantage Easy to Maintenance Condition New Item Name Dx Electric Curving Making Machine Feeding Material Trapezoidal Roof Sheet Panel Feeding Thickness 0.2-0.8mm Forming Speed 2-4m/Min Crimping Radian Adjustable by PLC Computer Control Part Delta PLC Control with Inverter; Frequency Convert Curving Mold Cr 12 High Quenching with High Temperaute 62 Max Production Order Three Special Design Yes Machine Size 3000mm*1500mm*1600mm Transport Package Fit for Container Loading Specification DX 840 or as your panel drawing Trademark DX Origin China, Hebei HS Code 84552210 Production Capacity 27 Sets Per Month

Product Description

Bullnose Roof panel Curving Roll Forming Tile Making Machine/crimping curved roof machine

1.Machine Technique parameters

1.Processing material	aluzinc/galvanized steel/colored steel coil
2.Material thickness	0.25-0.8mm
3.Feeding width:	IBR sheet
4.Effective width	IBR sheet
5.Main motor power	4kw with servo motor
6.Pump station power	4kw
7. Shaft diameter	75mm
8.Forming steps	Top 2 steps, down 4 steps, as machine pictures.
9.Main frame	300H steel frame
10. Side plate thickness	16mm
11.Roller material	45# forged steel, with hard chrome plating
12.Control systerm	(Taiwan brand)Delta PLC control system with touch screen
13.Cutting blade material	Cr12
14.Working speed	About 3-5m/min
15. Transmission way	1 inch chain drive
16. Machine size (mm)	About 2000*1500*1300mm
17. Machine weight	About1.5ton
18.Power supply	380v,3phase,50hz or accodring to customer request

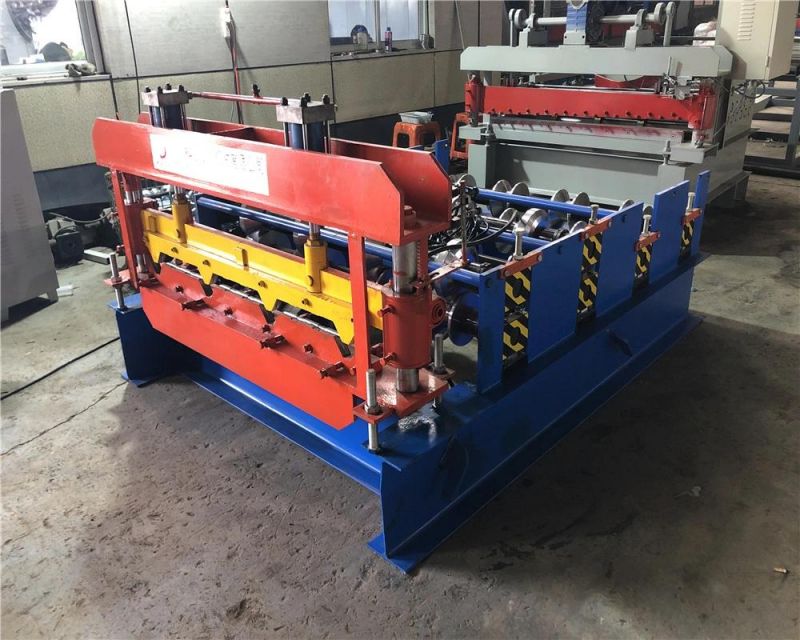

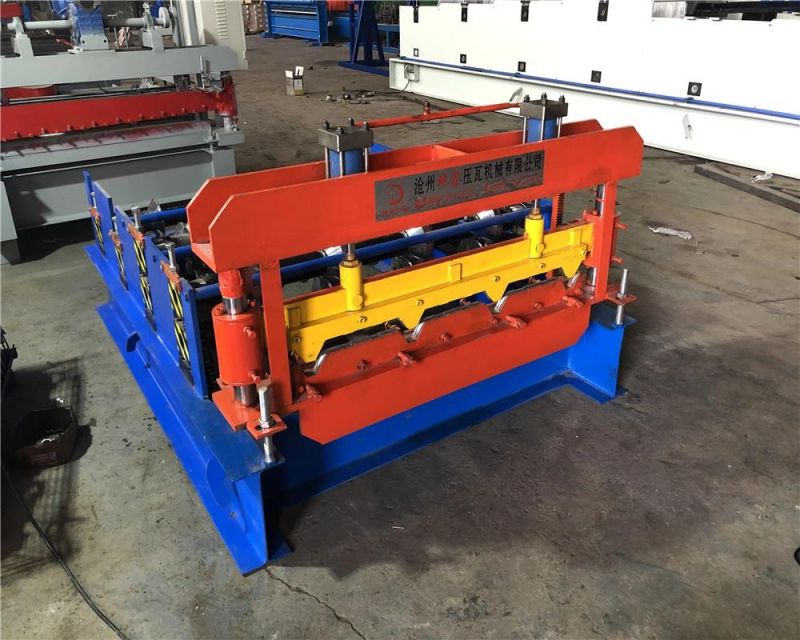

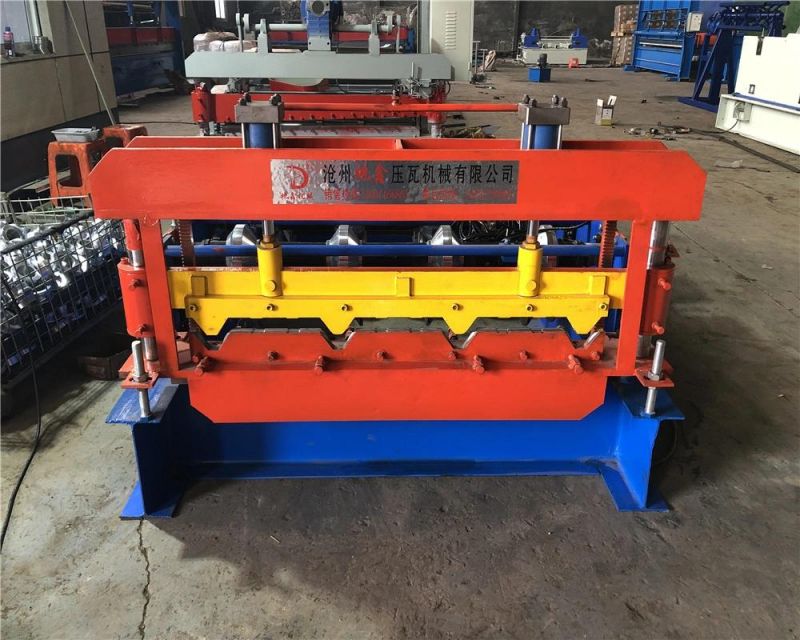

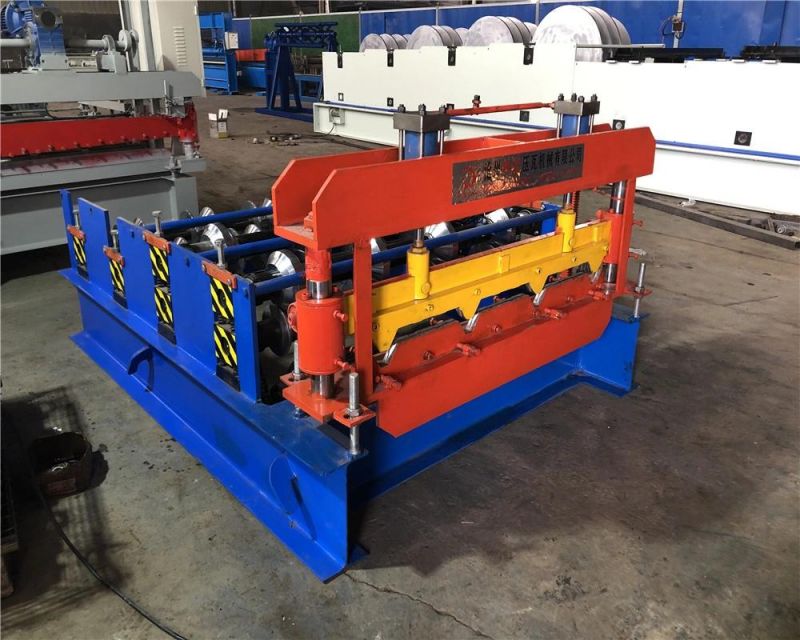

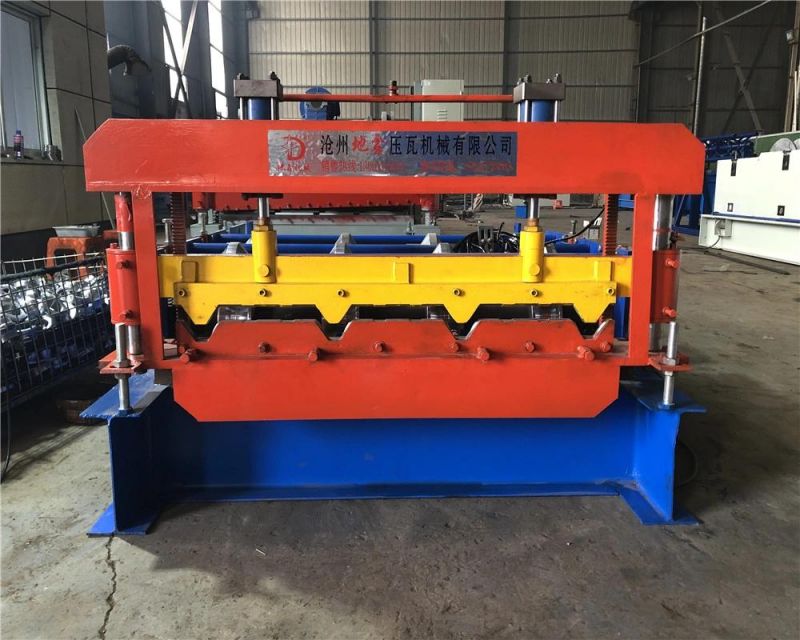

2.Some machine pictures for your reference .

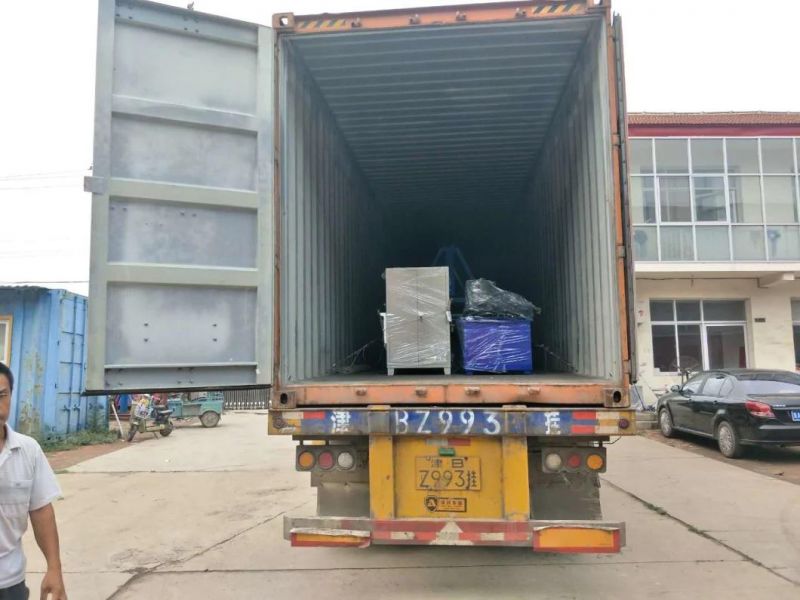

3.Packing and shipping
 Standard export packing and delivery
1. One 40ft container for loading one set machine with manual decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.

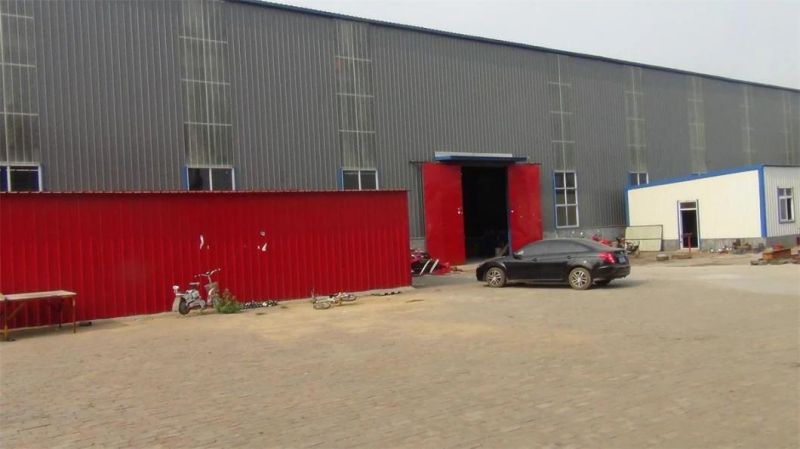

Cangzhou Dixin Roll Forming Machine Co.,ltd is a professional manufacturer and exporter which has its own factory and also cooperate with several production factories and associated enterprises, concerning with the design, development and production of cold roll forming machines,material of building. We specialize in the automated production line of sheet cold roll forming machines. We are able to provide an integral resolution schema of cold roll forming system through a combination of advanced system design and equipment. Based on our advanced research and commercial team, we are able to research and development, manufacturing and sale of standard and non-standard cold roll forming equipment for our clients world widely.


Delivery:
The machines will be ready within30 days from receipt of down payment as well as approval of sales contract, technical scheme and profile drawing. The shipment will be made within 10 days after the seller receives the balance by T/T.

Terms of payment:
30% of the contract amount as down payment after signed the contract; the balance is to be paid by T/T before shipment. Installation charge is to be paid before installation by T/T.

Cost of installation:
The buyer should pay the installation charges (USD 50 one man one day). to the seller's appointed account by T/T before the seller's technicians go to the buyer's factory. The buyer pays the seller's technicians travel cost outside China, including round air tickets fee, accommodation and food, provide transportation from living hotel to the work place, necessary communication, and insurance, etc.

Product warranty:
12 month, and we will provide the technical support for the whole life of the equipment.
