• Model NO.：roof roll forming machine
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Name：Roof Roll Forming Machine
• Feeding Material：Metal Steel Sheet,Color Steel,Galvanized Sheet
• Feeding Thickness：0.3-0.8 mm for Common Use
• Motor Power：3 Kw
• Shaft：75 mm, High Grade No. 45 Carbon Steel
• Roller：0.05mm Chromn and High Grade No. 45 Carbon Ste
• Control System：PLC Automatic Control System
• Cutting Blade：Cr12 Mould Steel with Quenched Treatment
• Forming Steps：13 Rows or as Your Requirement
• Type of Forming：Single Station with Chain Transmission
• Transport Package：Water-Proof Packaging, Covered with Plastic Film
• Specification：DX840,850
• Trademark：DX
• Origin：Botou Hebei China
• HS Code：845522
• Production Capacity：20 Set Per Month

Basic Info.

Model NO. roof roll forming machine Customized Customized Advantage Use Widely Condition New Name Roof Roll Forming Machine Feeding Material Metal Steel Sheet/Color Steel/Galvanized Sheet Feeding Thickness 0.3-0.8 mm for Common Use Motor Power 3 Kw Shaft 75 mm, High Grade No. 45 Carbon Steel Roller 0.05mm Chromn and High Grade No. 45 Carbon Ste Control System PLC Automatic Control System Cutting Blade Cr12 Mould Steel with Quenched Treatment Forming Steps 13 Rows or as Your Requirement Type of Forming Single Station with Chain Transmission Transport Package Water-Proof Packaging, Covered with Plastic Film Specification DX840/850 Trademark DX Origin Botou Hebei China HS Code 845522 Production Capacity 20 Set Per Month

Product Description

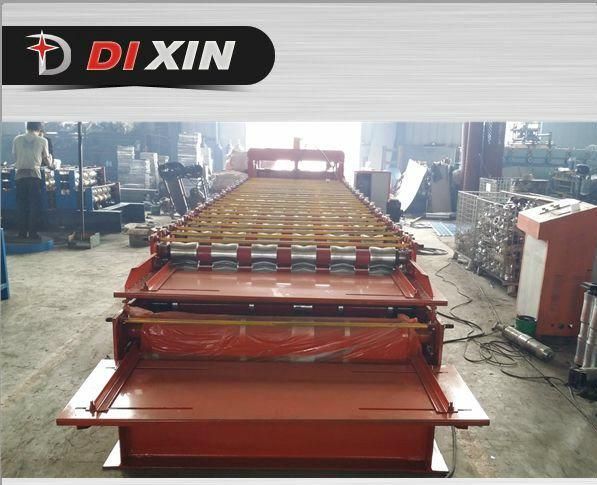

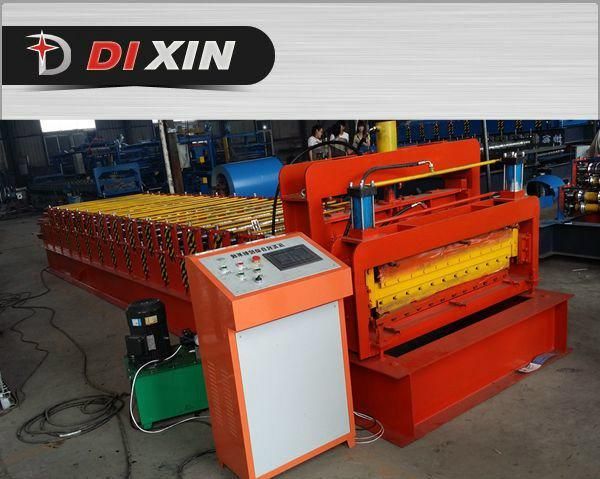

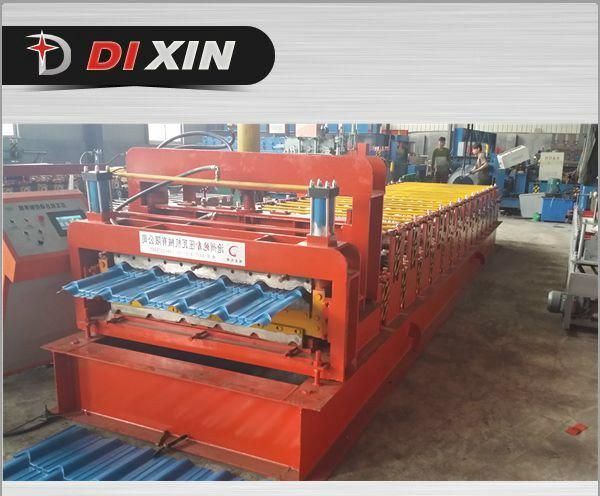

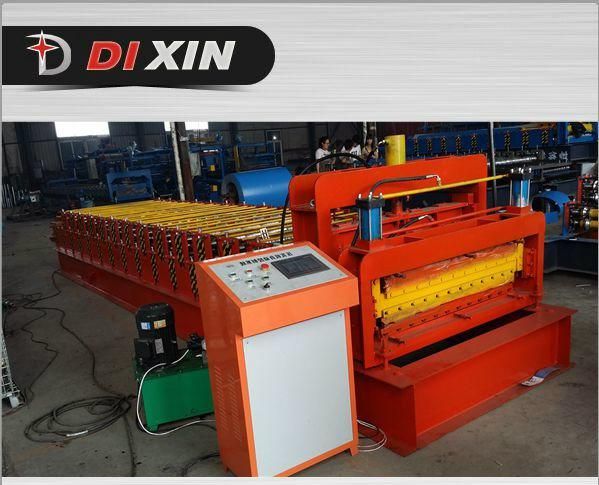

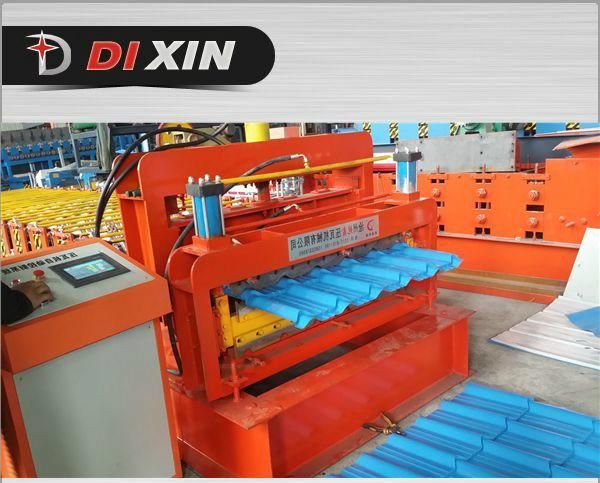

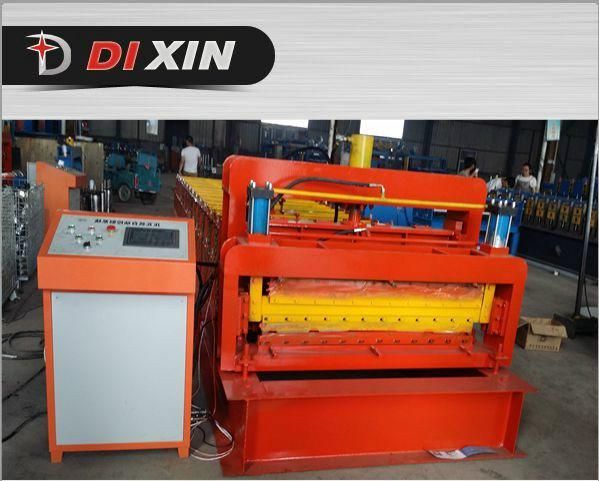

Double Deck Roof Panel Roll Forming Machine


2. Technique parameters
(1) Processing material: aluzinc/galvanized steel/colored steel coil
(2) Material thickness: 0.3-0.8mm
(3) Effective width: 840mm&825mm
(4) Feeding width: 1000mm
(5) Main motor power: 4 kw
(6) Pump power: 4kw
(7) Shaft diameter: 75mm
(8) Forming steps: upper level is 13steps, down level 15 steps
(9) Roller material: 45# forged steel, with hard chrome plating
(10) Main frame: 300H steel
(11) Medium plate thickness: 16mm
(12) Control systerm: PLC computer control with inverter
(13) Power supply: 380V, 3 Phase, 50Hz
(14) 0veral sized: 6500mm*1500mm*1400mm

3.Equipment Components
Decoiler               1Unit
Feeding Guide          1 Unit
Roll Forming System:     1 Unit
Press&Cutting Device     1 Unit
Hydraulic Station         1 Unit
PLC control System       1 Unit
Runout Table             1 Unit
4.Company Introduce

Our enterprise, Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel  purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping.
Backed by reasonable design, precision machining and selected material, both our standard and customized machines are characterized by long life span, precise forming and easy operation. With our customers' trust, our machines have been sent to America, Australia, Russia, India, Sri Lanka, Nigeria, Pakistan, Uzbekistan, Mozambique, Angola, Turkey, Brazil, etc.  We can satisfy the different needs of different markets.
Warmly welcome to China to visit our factory and select the machines you need. Our address,Fuzhuang Industrial Development Zone, Botou City, Hebei Province, China.

Any questions, we will reply to you promptly.
WARMLY WELCOME TO OUR NEW FACTORY!

number	profile and curved roofing sheet making machine
Rolled material	0.3-0.8mm thickness, aluminium sheet, galvanized sheet, colored steel sheet and various steel plates
Effective width	1030mm
Feeding width	1250mm
Forming steps	15
Roller	45# forged steel, hard chrome plating within 0.05mm
Diameter of shaft	75mm
Main frame	300H steel
Main motor power	4 kw
Pump power	4 kw
Medium plate thickness	16mm
Sprocket chain	1.2 inch
Drive  type	by chain
Cutting Blade	Cr12, heat treatment 60-62°C
Frequency Converter	It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm).

Our Serivice:
1. we can produce the special machine,send your drawing to us,we can design for you.
2. if you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.
3. we provide a one year warranty and lifelong technical support, we can send our technicians to you to give you on-site training.
The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations and a daily wage of US50.
4. engineers available to service machinery overseas.
5. if you come to visit our factory,we can book the room for you, car pick up to send.

Thanks for visiting our products, if you have interest, pls leave your message, or you can contact us, speical design is avaliable!
If you want to get more information about our equipment ,
Please feel free contact Nancy
Tel:8615227219783
