Hydraulic Corner Crimping Machine for Aluminum Window and Doors Lmd-120
Shandong Eworld Machine Co., Ltd.- After-sales Service:on Line
- Warranty:One Years
- Voltage:380V 50Hz
- Motor Power:1.5 Kw
- Air Consumption:2L,Min
- 2L/Min:16 MPa
Base Info
- Model NO.:LMD-120
- Air Consumption Pressure:0.5-0.8 MPa
- Contour Dimension:830*1000*1200mm
- Weight:380kg
- Transport Package:Seaworthy Package
- Specification:830*1000*1200mm
- Trademark:Eworld
- Origin:China
- HS Code:84752919
- Production Capacity:10 Sets ,Month
Description
Basic Info.
Model NO. LMD-120 Air Consumption Pressure 0.5-0.8 MPa Contour Dimension 830*1000*1200mm Weight 380kg Transport Package Seaworthy Package Specification 830*1000*1200mm Trademark Eworld Origin China HS Code 84752919 Production Capacity 10 Sets /MonthProduct Description

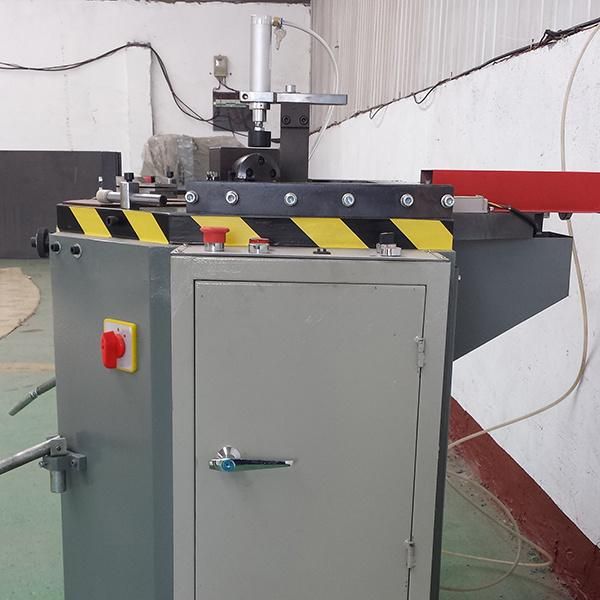

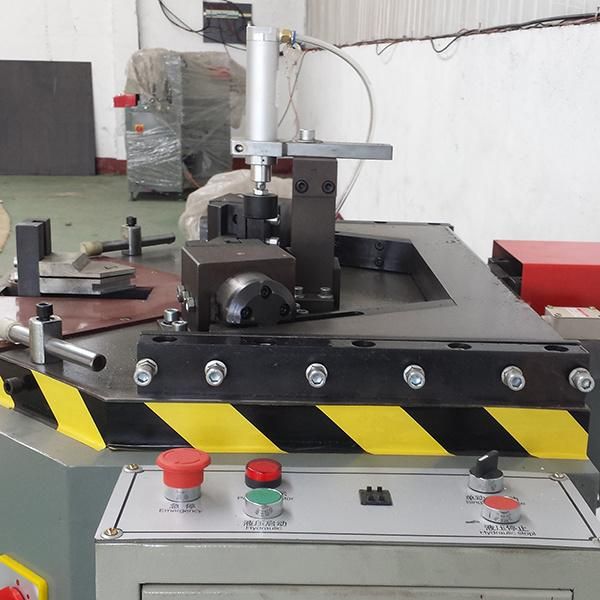

Corner Crimping Machine for Aluminum Window and Doors
1. Equipment features

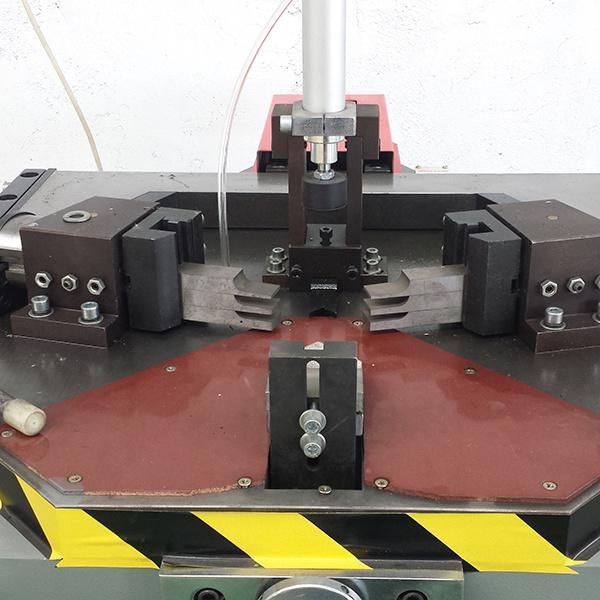

1). The machine is used for production line of hi-grade alu-alloy doors and windows. mainly used for extrusion and connection of 90º seam casement window with angle jointing operation, place an angle-alu in cavities of two driven striking blocks punch towards the flute of angle-alu, Extruding the seam of two profiles makes strength, efficiency and precision of the connection higher than using any means for connection.
2).This machine is used for combining the aluminum profile together to be a whole frame after processed.
3).We also have double head corner combining machine, and four corner combining machine, if you need, I can also list in the quotation, but generally, from begining production, use the single head type is enough for your Aluminum window door production.
4).Before you buy the machine, please make sure then tell me your local power supply,then we can make the right according to your true voltage.
5).We have in store, if you need, we can ship in short time for you.
2.Technical parameters
Model number | LMD120 |
Voltage | 380V 50Hz |
Motor power | 1.5 Kw |
Air consumption | 2L/min |
Most pressure | 16 Mpa |
Air consumption pressure | 0.5-0.8 Mpa |
Contour dimension(L×W×H) | 830×1000×1200mm |
Weight | 380Kg |
