Long Tape Casting Coater with Adjustable Doctor Blade
Zhengzhou CY Scientific Instrument Co., Ltd.- Type:Coating Spray Gun
- Coating:Vacuum Coating
- Substrate:Ceramic
- Certification:CE, TUV
- Condition:New
- Traverse Speed:0 - 80mm,Sec Variable
Base Info
- Model NO.:CY-L800
- Stroke Length:10-800mm Adjustable
- Accuracy of Film Thickness:+,- 0.01mm
- Vacuum Chuck:Aluminum Alloy
- Name:Long Tape Casting Coater
- Delivery:One Week
- Transport Package:Wooden Box
- Specification:250x800mm
- Trademark:CY
- Origin:Zhengzhou, China
- HS Code:8543709990
- Production Capacity:210 Sets Per Month
Description
Basic Info.
Model NO. CY-L800 Stroke Length 10-800mm Adjustable Accuracy of Film Thickness +/- 0.01mm Vacuum Chuck Aluminum Alloy Name Long Tape Casting Coater Delivery One Week Transport Package Wooden Box Specification 250x800mm Trademark CY Origin Zhengzhou, China HS Code 8543709990 Production Capacity 210 Sets Per MonthProduct Description

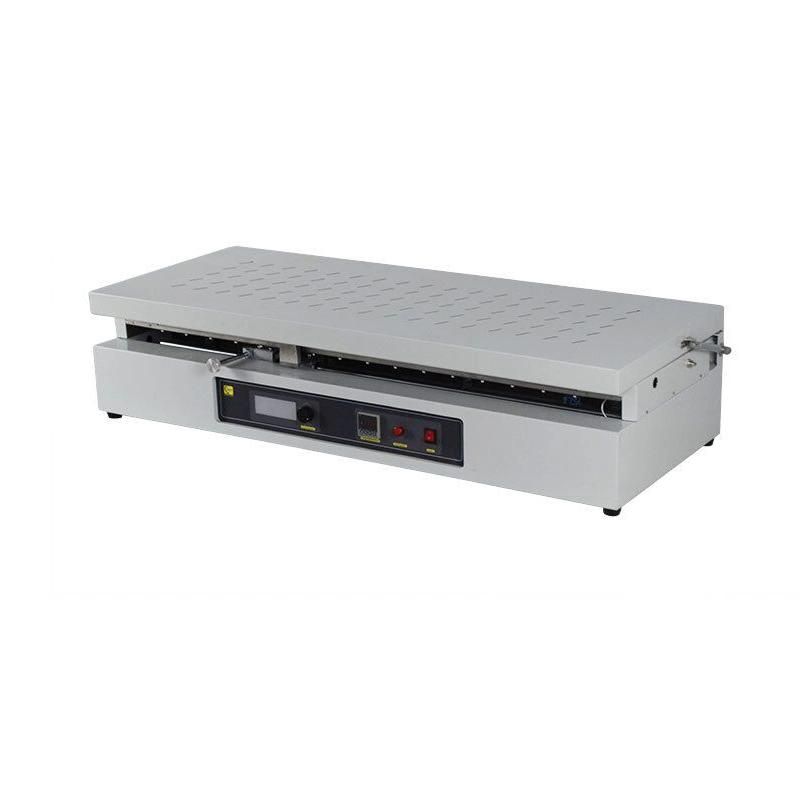

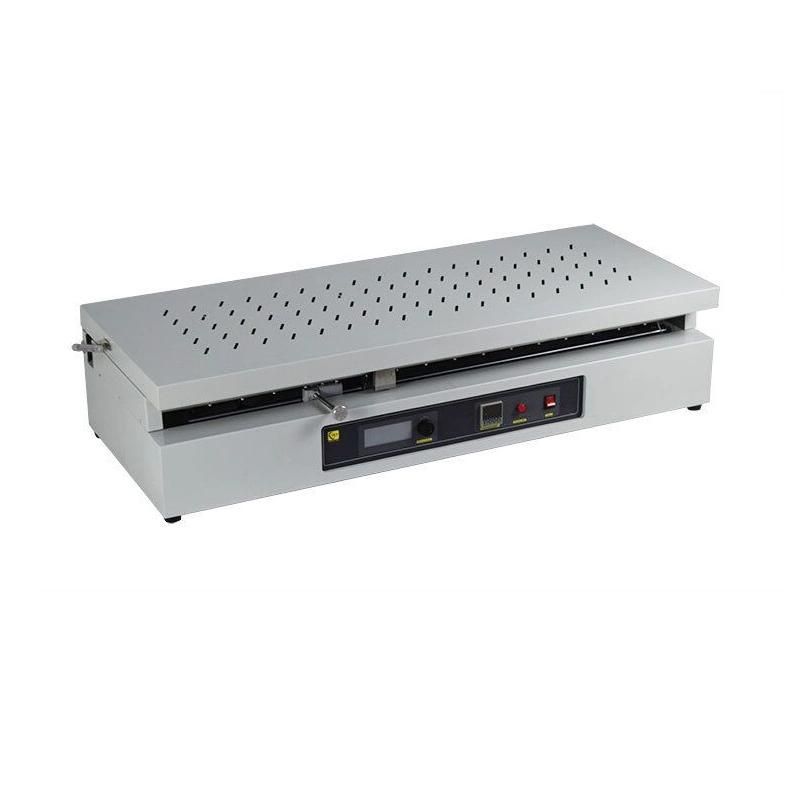

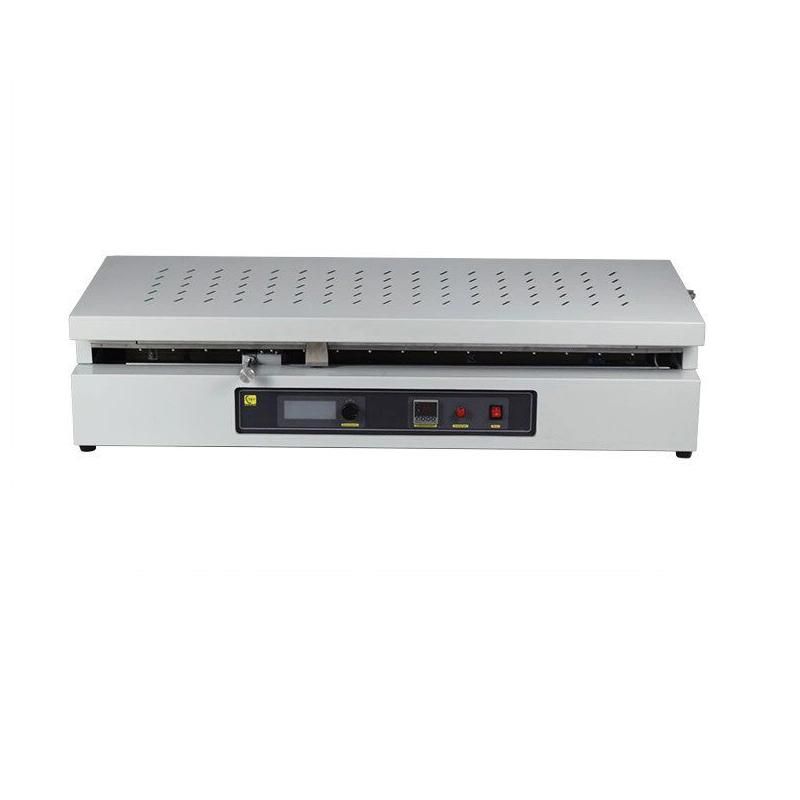

Long Tape Casting Coater (10"Wx 32"L ) Vacuum Bed with Adjustable Doctor Blade & Optional HeaterCY-L800 is a CE Certified 800 mm long tape casting coater with the vacuum chuck, and micrometer adjustable applicator. It is designed for producing the long thick film and has a unique driving system to produce smooth coating at all types of materials. It is specially designed for electrocoating of various cylindrical batteries such as the 18650 format.
Working Voltage | INPUT: 24VDC |
Power | 120W |
Traverse Speed | 0 - 80mm/sec variable |
Stroke Length | 10 - 800mm adjustable by using Adjustable Position Switch |
Platform | Aluminum alloy flat vacuum chuck Vacuum chuck Dimensions: 800mm(L) x 250mm(W) x 25mm(H) |
Vacuum Pump (Optional) | A vacuum pump is required, but not included. |

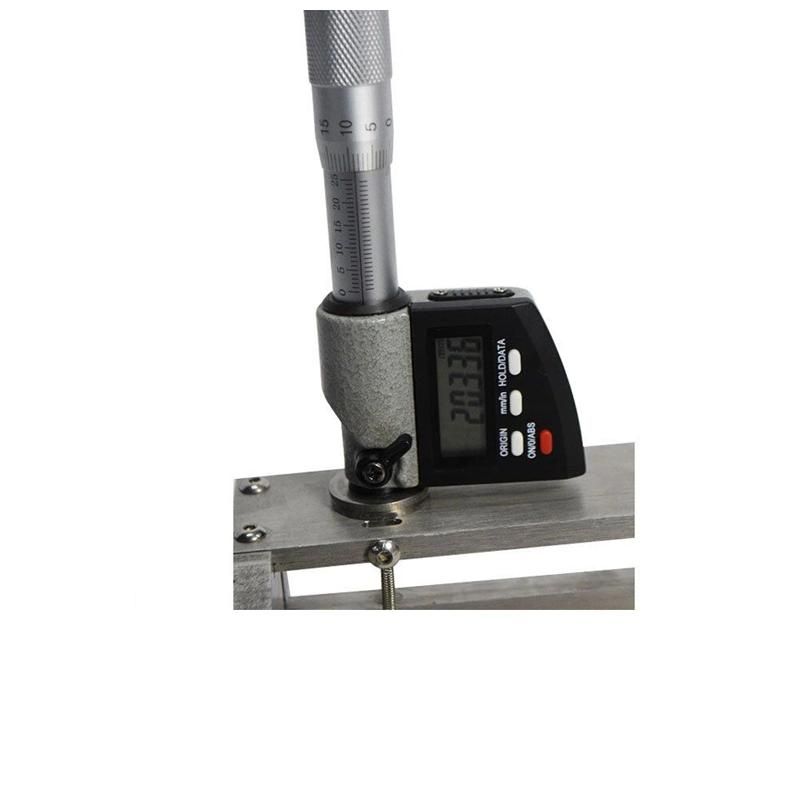

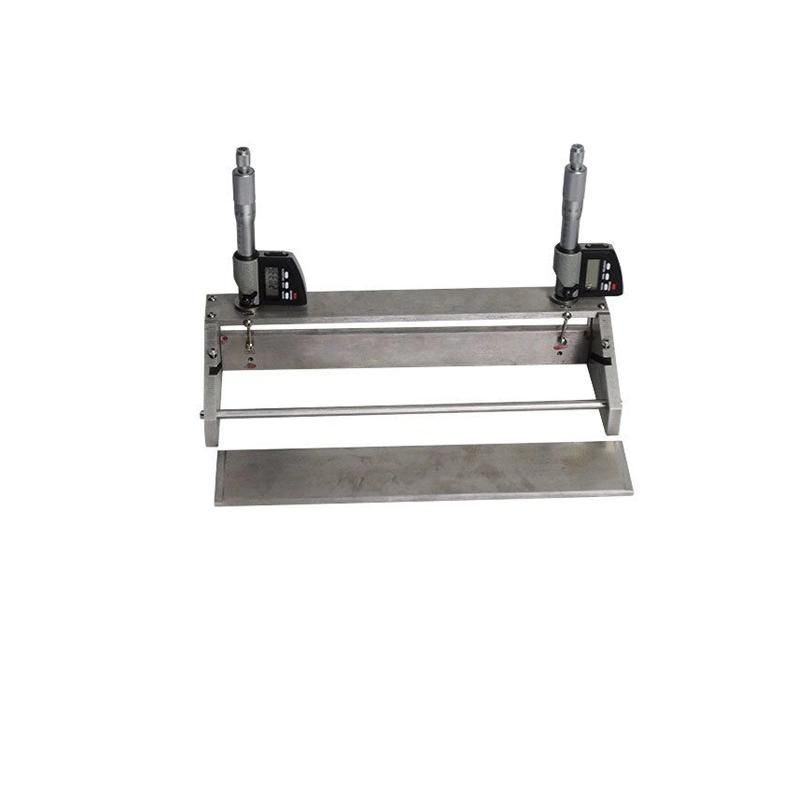

Film Applicator | Built in pushing bar for using micrometer adjustable applicator. 180 mm width Applicator with micrometer adjustable head included making coating up to 800mm(L) x 180mm(W) |
Max. Coating Area | 800mm(L) x 250mm(W) |
Accuracy of Film thickness | +/- 0.01mm |
Heating Lid | Heating lid is available at extra cost for drying. Working voltage of heating lid would be the same as the input voltage for the coater. Please select the voltage for MSK-AFA-L800-H from product options bar. Max. working power: 1000W Max. heating temperature: 80°C |
Machine Dimensions | Without heating lid: 960mm(L) x 370mm(W) x 240mm(H) With heating lid: 900mm(L) x 370mm(W) x 313mm(H) |
Net weight | 40 kg (90 lbs) |
Compliance | CE certified |
