• Model NO.：COLO-500PGC1A
• Condition：New
• Powder Coating：Testing Machine
• Brand：Colo
• Model：Intelligent Operation Function
• Voltage：110,220
• Power(W)：50W
• Weight：21kg
• Warrenty：1 Year
• Transport Package：Wodden Case
• Trademark：COLO
• Origin：Hangzhou. China
• HS Code：8424899990
• Production Capacity：3000PCS

Basic Info.

Model NO. COLO-500PGC1A Condition New Powder Coating Testing Machine Brand Colo Model Intelligent Operation Function Voltage 110/220 Power(W) 50W Weight 21kg Warrenty 1 Year Transport Package Wodden Case Trademark COLO Origin Hangzhou. China HS Code 8424899990 Production Capacity 3000PCS

Product Description

Automatic powder painting equipment


Product description:

 The fluidzed powder in the powder hopper is sucked up in the injector by the conveying air. Through the powder hose the powder air mixture reached the gun
The powder is electrostatically charged immediately it reaches the gun nozzle.An intense field also exists between the gun nozzle and the grounded workpiece. The electrostatically charged powder sprayed onto the workpiece adheres to the latters surface.
This line voltage is converted in the control module to high frequence current,this currents stpped up by the high-voltage transformer and the HV-cascade in the gun to 100KV and applier to the electrodes.
The converying air and the dosing air is to be requlated on the control module , the fluidizing air on the peneumatic unit.The powder is fluidized by forcing air from bleow truough a proous plastic plate.The fluidized powder gets liguld like properties.

Picture display

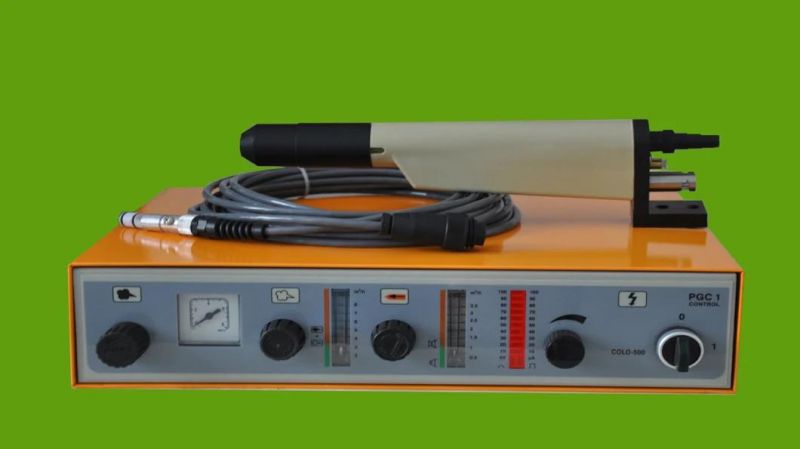

The COLO-500PGC1-A It is a costs-effective machine,  It is a copy model of the famous Swiss brands of machine,
so it has some parts import in Italy like original machine. It good for all the workpiece,Especially in the flat workpiece,corner workpiece and some complex workpiece.

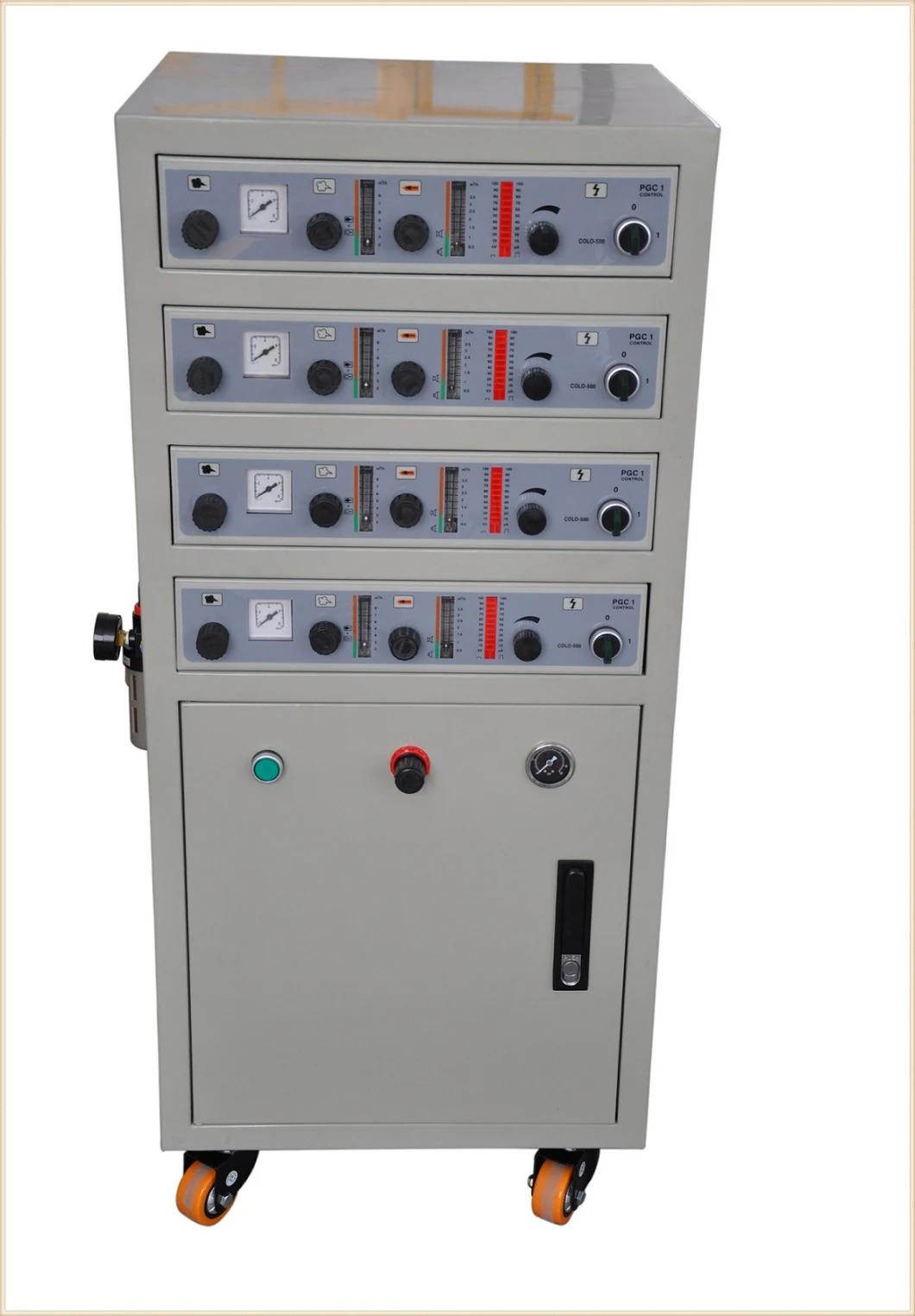

The COLO-500PGC1 control cabniet used for automatic powder spray booth,can save human resources and improve work efficiency,can have a big production.

It matched with the gun,and also used for the spray booth.
80storable programs
Frequency: Japanese Mitsubishi
Increased Uniformity Advanced digital control.
Smooth, Swift and Precise movement for speedy and uniform coating.
Reduce powder consumption.
Quick Job Change Pr-programmable preset settings for automatic selection of stroke and speed.
User-friendly touch screen control to control speed and stroke length.
Adjustable counterbalance weights allow perfectly balanced gun movement
Any requirements ,just feel free to send your email
