1000W Stainless Steel Fiber Laser Cutting Machine
Perfect Laser (Wuhan) Co., Ltd.- After-sales Service：Online Support
- Warranty：1 Year Warranty
- Customized：Customized
- Layout：Coaxial
- Cutting Material：Copper, Iron, Aluminum, Metal Alloy, Stainless Steel
- Automatic Grade：Automatic
Base Info
- Model NO.：PE-F1000-3015
- Power Source：Electric
- Cutting Mode：Laser Cutting
- Laser Power：500W,1000W
- Laser Type：Import Fiber Laser
- Working Area：3000mmx1500mm 1300*2500mm

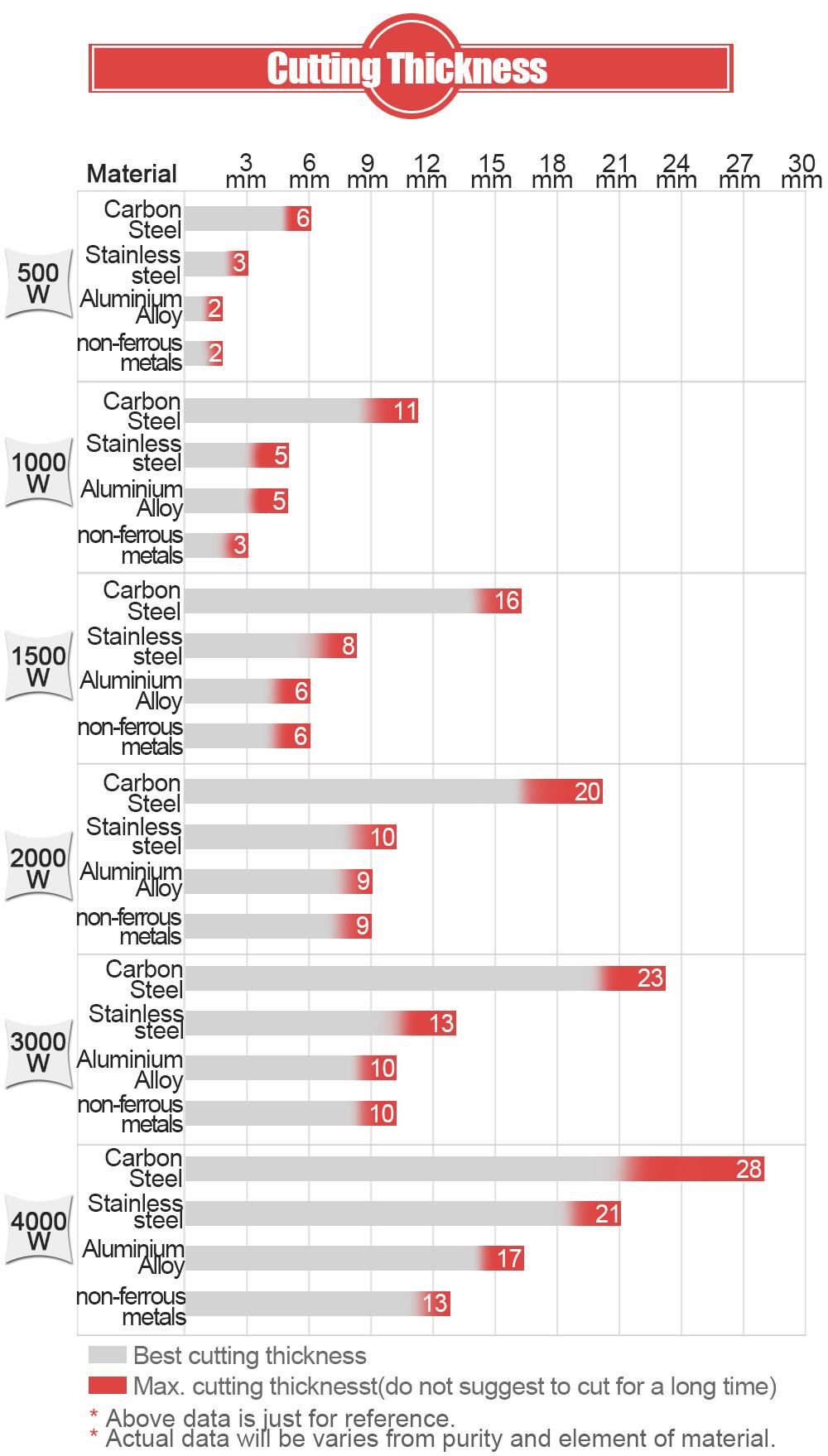

- Max. Cutting Thickness (Carbon Steel)：4-12mm

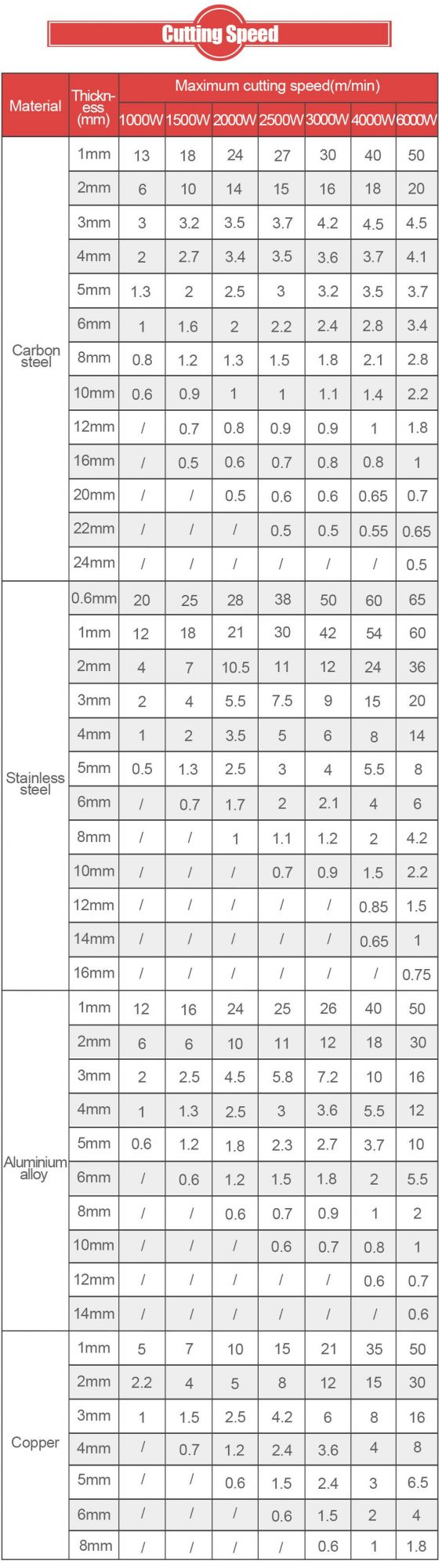

- Max. Cutting Speed：20-30 Meter , Min (up to Materials)
- Transmission Method：Ball Screw Transmission
- Table-Driven System：Japanese Famous Kawasaki Servo Motor & Driver
- Focus Method：Following and Automatic Adjust Focus
- Location Precision：0.05mm
- Max. Moving Speed：100m,Min
- Transport Package：Export Sea-Worthy Packing
- Specification：ISO,CE,TUV Certificate
- Trademark：Perfect Laser
- Origin：China
- HS Code：8462219000
- Production Capacity：2000 Units, Month
Description
Perfect Laser Professional Laser Cutting Software
Fiber Laser Cutting Machine Details Instructions
1. Advanced Germany Technology: ensure most high tech in the world.
2. Advanced Laser Optical System: Ensure Excellent Laser Beam Quality Double-Xenon-lamp technology,can strongly improve the laser power and laser beam quality.
3. Laser Path Pre-view & Pre-position Function: Laser beam is in-visible by adopting "Red Light Pointer",Realize the laser path pre-view and Pre-position function.
4. Pre-view and pre-run function: Simulate the laser cutting path, Pre-run the cutting path in advance,Ensure finding the accurate cutting position.
5. Unique Mirrors and Lens Cooling Technology: All mirrors and lens is cooled by water, Takes the mirror heat during working, Prolong its' lifetime, Save future operation cost.

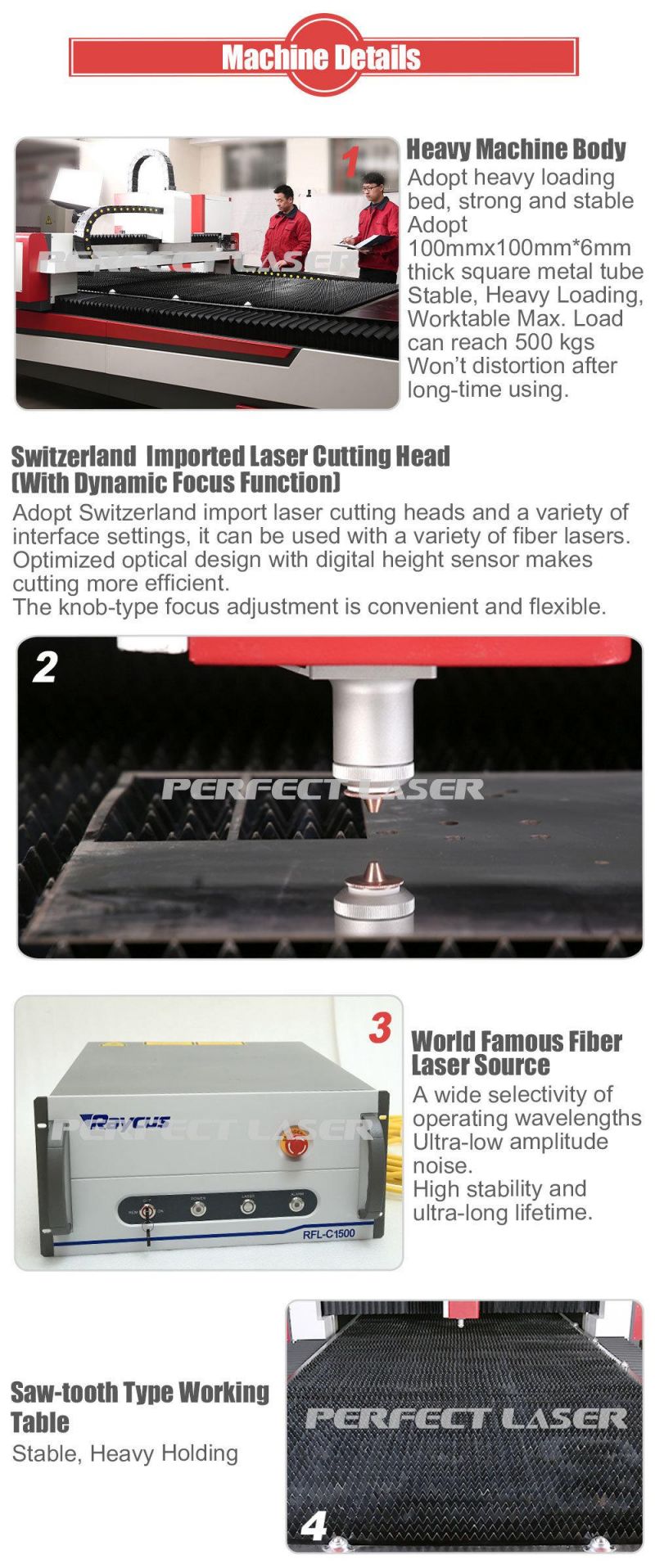

6. Heavy Machine Body: Adopt 100mm*100mm*6mm thick, square metal tube Stable, Heavy Loading,Won't distortion after long-time using, Worktable Max. Load can reach 500 kgs. Adopt a funnel-type machine bed design, Work with conveyor belt, Easy for user to get the cutting pieces from the machine front.
7. Auto transfer system: Can automatically transfer the cutted work-pieces into the front of machine, Improve working efficiency, Save labor energy, No need user to take it by hand. Make the work-pieces neat and beautiful.
8. Auto Oil-filling system: Press for once, can lubricate the machine transmission rod for 2-3 months.
9. Red light pointer: As the laser beam is in-visible, We adopt red light pointer to indicate the real position of the laser beam, Make cutting more accurate.
10. Dynamic Auto-focus System: Keep the same distance between the metal sheet and laser head,Realize the accuracy of cutting effect.
11. Auto-feeding Design: Adopt feeding wheel design, Make the material feeding easier, Labor energy saving.
12. Cutting Powder and Smell Absorbing System: Absorbing the cutting power and dust out of the room,No dust, No smell, Air-Proof, Make cutting process environmental.

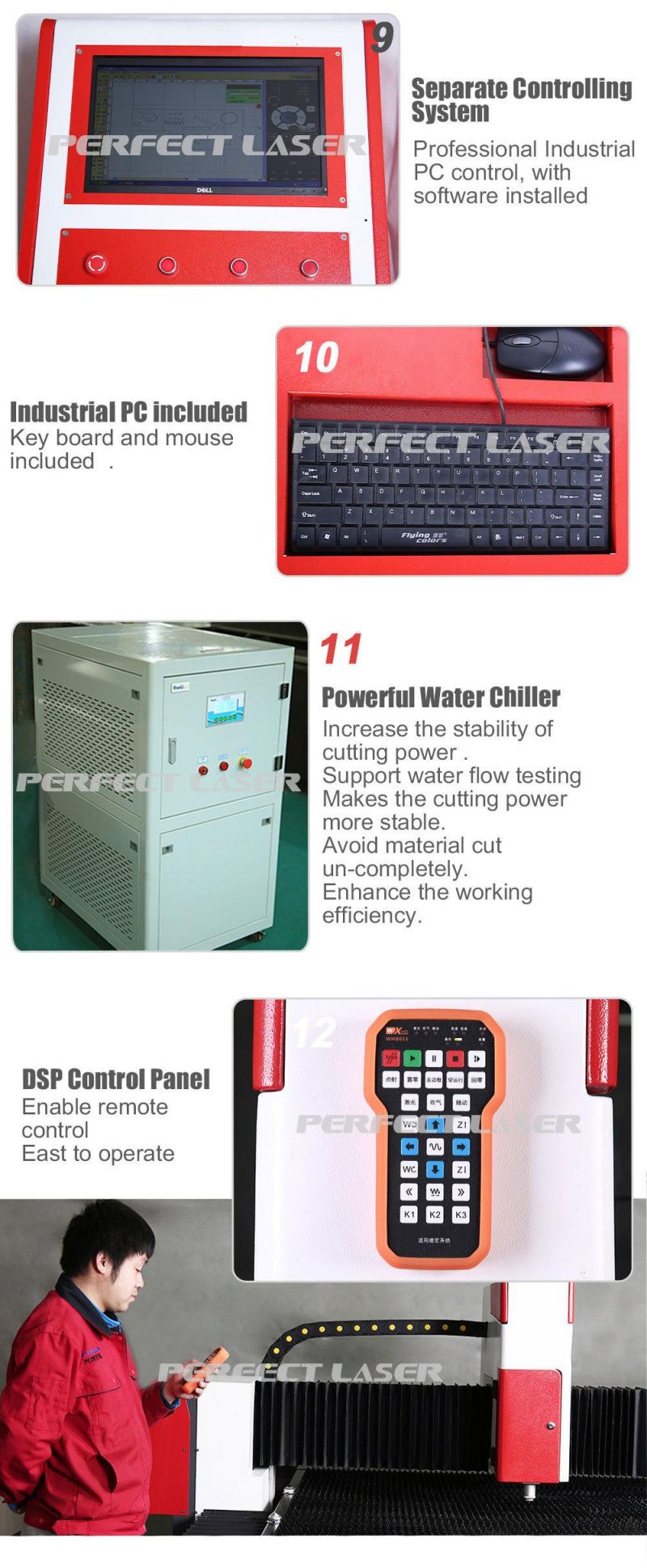

13. DSP Control Panel (Optional Item): East to operate, Enable remote control.
14. Industry Computer: CPU is Intel Core i3, DDR3 is 4G, SSD is 250G.
15. 7P Powerful Water Chiller: Increase the stability of cutting power, Support water flow testing, Makes the cutting power more stable. Avoid material cut un-completely. Enhance the working efficiency.
16. Professional Laser Cutting Software: Adopt CNC 2012 latest version, with powerful editing function,Friendly interface, Easy to Use. Supports DXF, PLT, G-Code and many graphs.
17. Laser Source: Adopt USA imported Laser Xenon lamp, Double lamp Technology Strongly improve the power and laser beam quality.
18. USA Dynamic auto focus system: When metal sheet is not so plain, Adjust the focusing distance automatically.
19. Saw-tooth Type Working Table: Stable, Heavy Holding.
20. Taiwan Made Ball Screw Rod: Diameter 50mm ball screw rod, High accuracy linear running guide rail,Improve the precision and accuracy of the machine.
21. Taiwan Linear Guide Rail: High speed with, Lower noise volume, High accuracy and long life span.

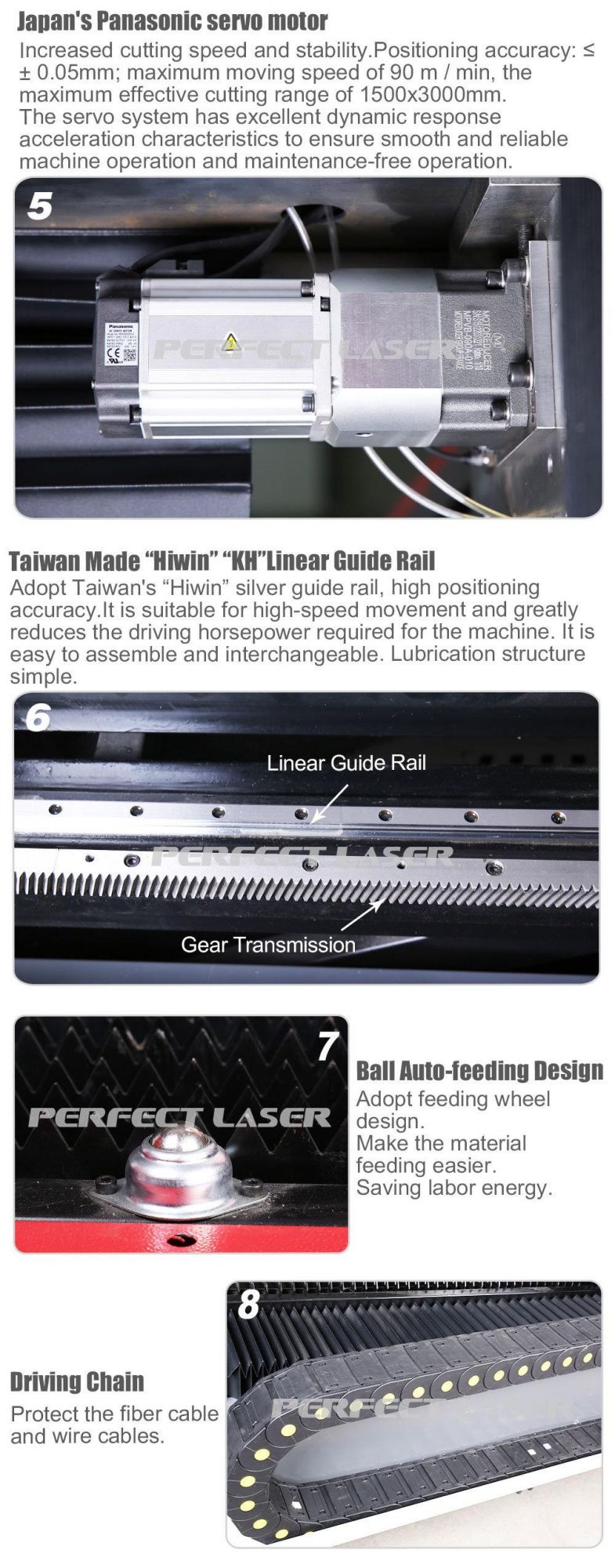

22. Japanese Panasonic Servo motor and Driver: Extreme precise positioning, Make moving positioning mechanism operate smoothly, Reliably and free of maintenance.
23. 45 degree lens: 3 screws in the 45 degree lens, Easy to adjust laser path.
24. Foot Switch: Press it for cutting easily.
Company Profile
Online Trade ShowsOur Products have already exported to more than 180 countries. If You Want to Know More Transaction Details,
Please Feel Free to Contact Us !!
Contact us:
Perfect Laser Co., Ltd. (China)
Conatct Person:Sally / sales department
Tel:0086-18062623851
Fax:0086-2786775865
Add: HengRuichuangzhi Technology Park, No.13 YangQiaohu Road, Jiangxia District, Optical Village, Wuhan, Hubei, China(430200).
