Compact Mini Desktop Polaron Plasma Sputter Coater for Metal Materials
Zhengzhou CY Scientific Instrument Co., Ltd.- Type:Coating Spray Gun
- Coating:Vacuum Coating
- Substrate:Aluminum
- Certification:CE, TUV
- Condition:New
- Sample Stage:Dia.40mm
Base Info
- Model NO.:CY-1100X-SPC12-LD
- Sputtering Distance:15-18mm
- Control Panel:Touch Screen
- Vacuum Chamber:Fused Glass
- Sealing Flange:Stainless Steel
- Warranty:One Year
- Name:Desktop Sputter Coater
- Transport Package:Wooden Box
- Specification:dia. 100mm
- Trademark:CY
- Origin:Zhengzhou, China
- HS Code:8543709990
- Production Capacity:210 Sets Per Month
Description
Basic Info.
Model NO. CY-1100X-SPC12-LD Sputtering Distance 15-18mm Control Panel Touch Screen Vacuum Chamber Fused Glass Sealing Flange Stainless Steel Warranty One Year Name Desktop Sputter Coater Transport Package Wooden Box Specification dia. 100mm Trademark CY Origin Zhengzhou, China HS Code 8543709990 Production Capacity 210 Sets Per MonthProduct Description

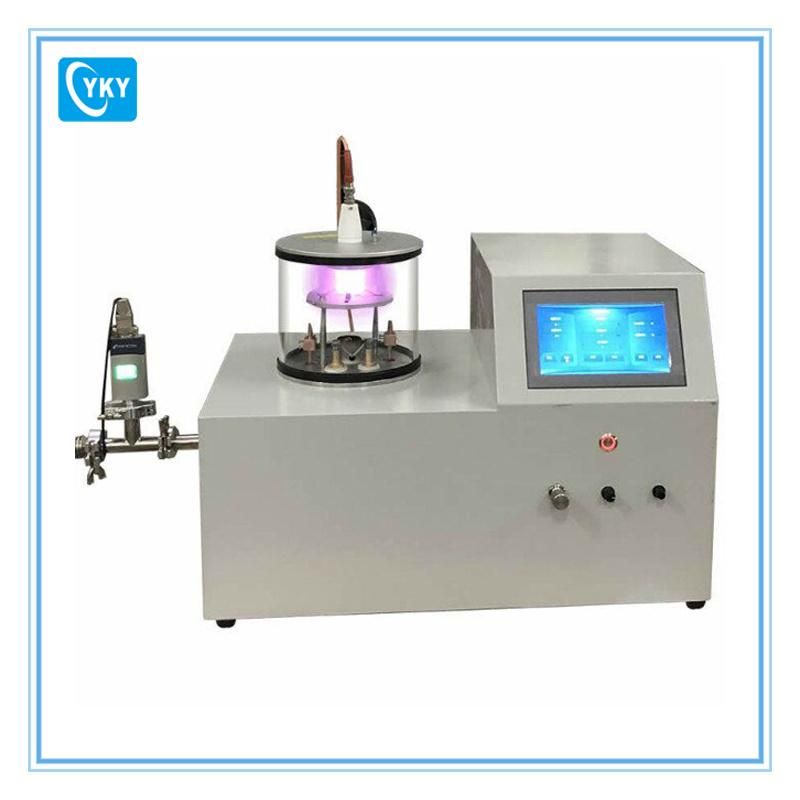

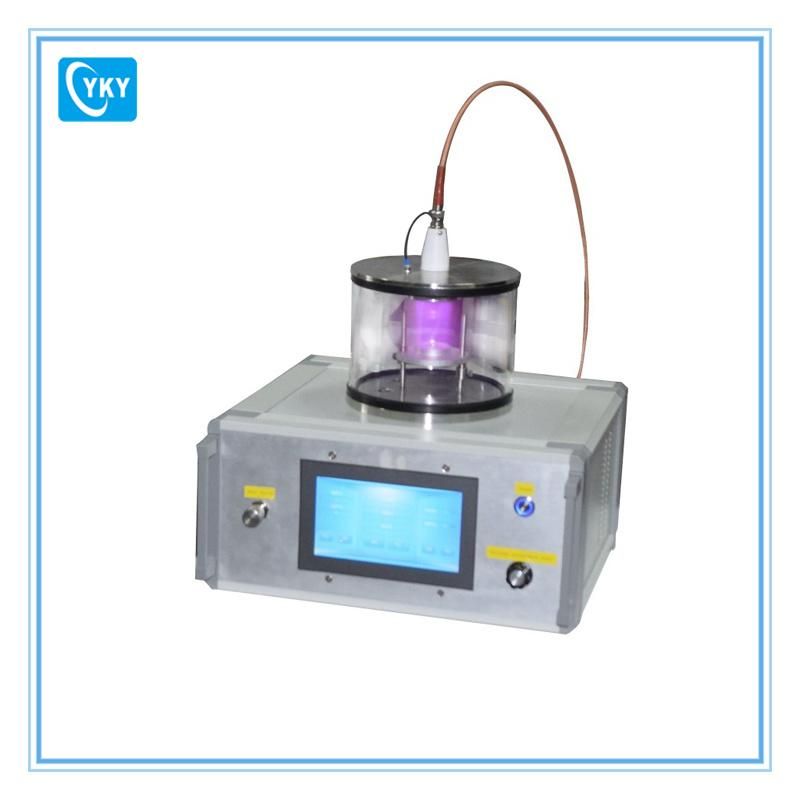

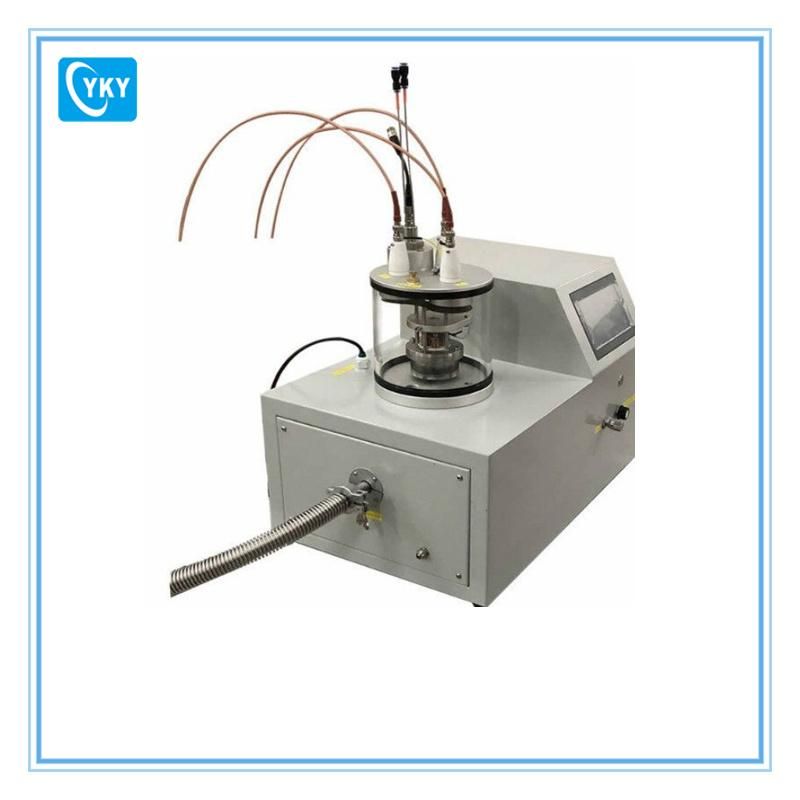

Compact Mini Desktop Polaron Plasma Sputter Coater for Metal Materials CY-1100X-SPC12-LDCY-1100X-SPC12-LD is a compact plasma sputtering coater designed for making metallic coatings, such as gold, platinum, Indium and silver etc. Especially for coating conductive gold film for SEM sample. The plasma sputtering coater is shipped with all necessary accessories for immediate use, including one sputtering head with gold sputtering target (gold cathode), vacuum pump, stainless steel bellows and quick clamps.
Input Power | Single phase 208 - 240 VAC, 50 / 60 Hz < 1000 W (including vacuum pump) |
Vacuum Chamber | Vacuum chamber: 100 mm ID x 130 mm H, made of fused glass Sealing flange made of stainless Needle valve on front panel for gas flow control |

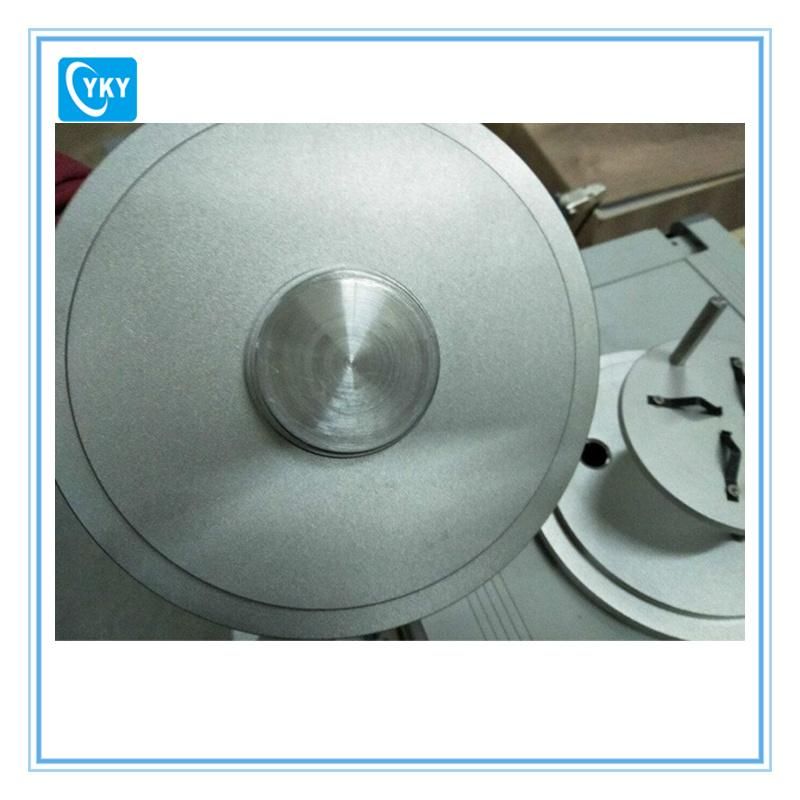

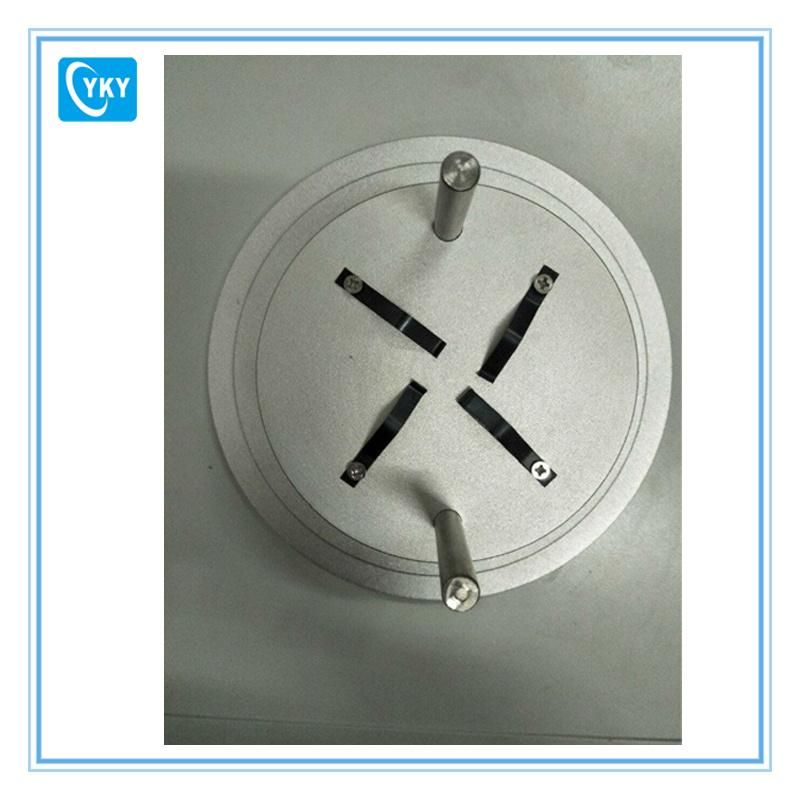

Sample Stage | Stage size: 40 mm Dia. Sputtering distance range: 15 - 80 mm adjustable |
Control Panel | Vacuum gauge and sputtering current meter for monitoring deposition Needle valve on front panel for gas flow control Sputtering timer: 0 - 110 s adjustable |
Vacuum Pump | The followings are included: 156 L/m Double Stage Rotary Vane Vacuum Pump with vapor trap (Max vacuum 10^-2 Torr) Stainless steel bellows with KF16 adapter and quick clamps Two Stage Exhaust Filter on vacuum pump to eliminate oil vapor contamination One High purity Au target (57 mm Dia. x 0.12 mm, 4N purity) Optional: you may use a turbo pump to achieve 10^-4 Torr vacuum by a turbo pump |
Sputtering Targets | Target size requirements: 57 mm Dia. x 0.5 mm max |
Size | 480 mm L x 320 mm W x 280 mm H |
Net Weight | 20 kg |
Shipping Weight | 55 kg (120 lbs) |
Compliance | CE approval |
