• Model NO.：A-M
• Warranty：6 Months
• Size：Standard
• Material：Tungsten Carbide
• Processing Methods：Cutting Tooth File
• Section Shape：Knife-Shaped
• Color：Unicolor
• Condition：New
• Shape：a, B, C, D, E, F, G, H, J, K, L, M
• Tooth Pattern：Double or Single
• Type of Cutting：Medium Cut, Fine Cut, Double Cut, Aluminum Cut
• Handle Material：Tungsten Carbide
• Quality Grade：Professional Level
• Standard：SGS
• Folded：Unfolded
• Quality：High Quality, Customised Available
• Features：Good Wear Resistance, High Precision
• Materials：100% Raw Materails
• Transport Package：Standard Export Box
• Specification：33x29x19cm
• Trademark：GW
• Origin：Zhuzhou
• HS Code：82100000
• Production Capacity：500000PCS,Month

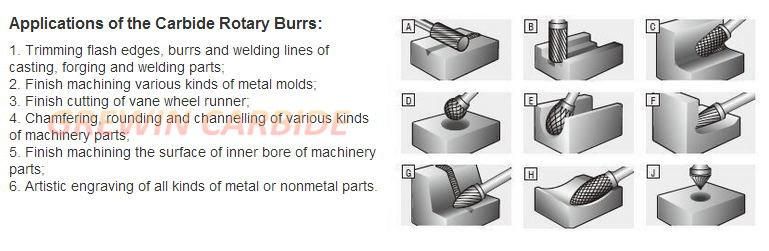

Shapes of carbide burrs1.Cylindrical (Plain End)-Shape A;
2.Cylindrical (End Cut)_Shape B;
3.Cylindrical (Radius End)-Shape C;
4.Ball-Shape D;
5.Oval-Shape E;
6.Tree (Radius End)-Shape F;
7.Tree (Pointed Ends)-Shape G;
8.Flame-Shape H;
9. 60°Cone-Shape J;
10.Taper (Radius End)-Shape L;Conical Round Nose-Shape L;
11. Cone -Shape M;
12. 90°Cone-Shape K;
13.Inverted Cone-Shape N;
14.Disc Type with arc edge_Shape W;
15.Disc Type-Shape X;
16.Dics type with 90°Angle-Shape Y

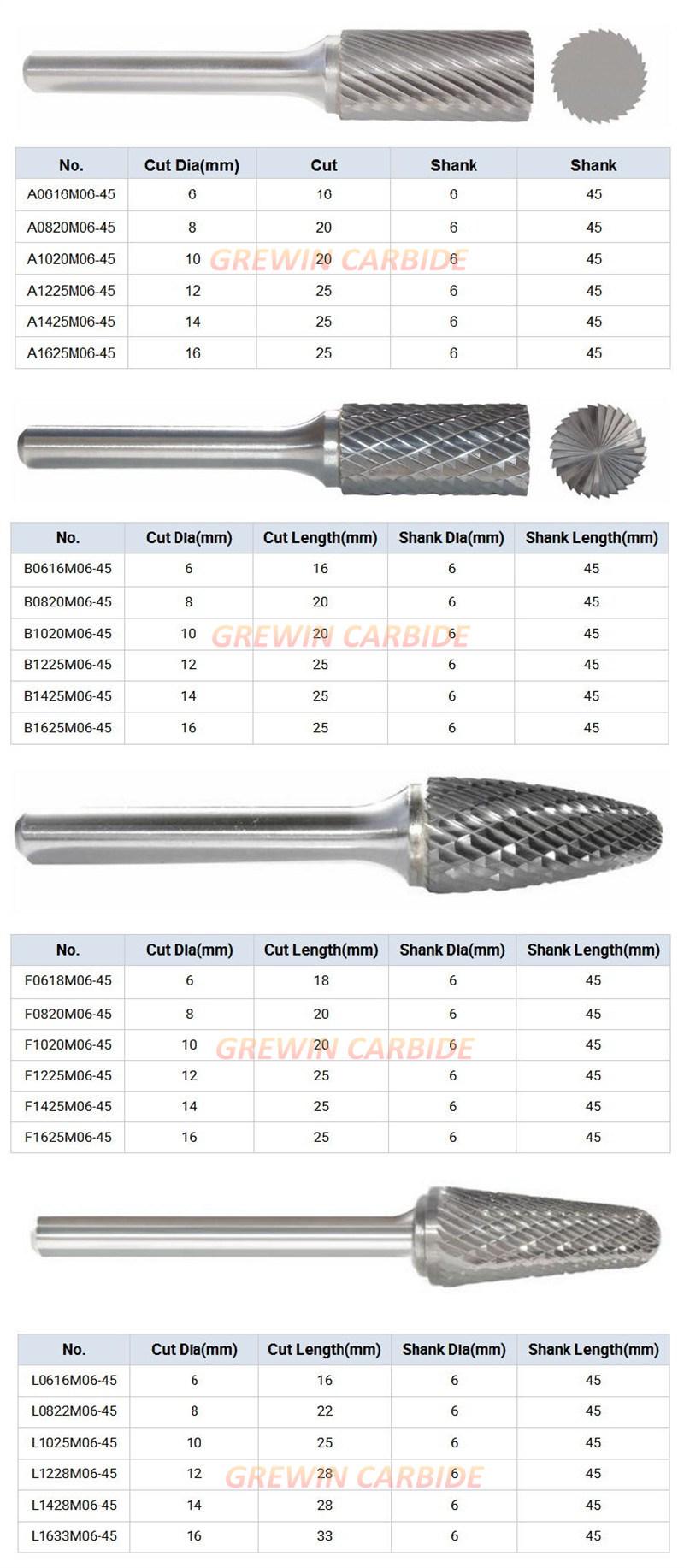

4.Standard size                                         SizesOrder No.Blade diameterBlade Length Stem diameterGeneral lengthA0313M03313350A0413M04413450A0616M06616656A0820M06820660A1020M061020660A1225M061225665A1425M061425665A1625M061625665A0804M0684654A1005M06105650A1205M06125650A1606M06166650C0313M03313350C0413M04413450C0616M06616646C0820M06820660C1020M061020660C1225M061225665C1425M061425665C1625M061625665D0303M0332.7350D0403M0443.6450D0605M0665.4655D0807M0687.2657D1009M06109654D1210M061210.8655D1412M061412652D1614M061614.4654E0610M06610660E0813M06813658E1016M061016661E1220M061220660E1422M061422662E1625M061625665F0313M03313350F0618M06618658F0818M06818658F1020M061020660F1225M061225665F1425M061425665F1625M061625665G0313M03313350G0618M06618658G0817M06817657G1020M061020660G1225M061225665G1425M061425665G1625M061625665H0307M0337350H0618M06618658H0820M06820660
☆Product description

The carbide alloy rotary file is the fitter and mold labor's indispensable advanced tool, its characteristic is substitutes for the belt handle small grinding wheel and the non-dust pollution, the service life is equal to several hundred belt handle small grinding wheel, the processing effciency enhances above 5 times, below abrasive machning degree of hardness HRC70 each metal and the nonmetallic meterial, grinding surface roughness may reach Ral.6, convenience grasps, use to be simple, safe reliable, reduces the arduous manual labor greatly, reduce the cost of production.


Material	Carbide/ tungsten steel
Cut	Standard/Single/Double/aluma
Outline&Code	cylinder(type A) cylinder with round head(type C) spherical (type D) Oval(Type E) Arc with round head(type F) Arc with pointed top(type G) cone with pointed top(type M) cone with round head(type L) torch (type H)

☆Specification

Single-cut burrs are for general purpose work and provide good material removal.

Double-cut burrs produce smaller chips for greater operator control on applications such as stainless steels and ferrous materials.

Aluma-cut burrs have a wide flute design for easy stock removal without loading on applications such as nonferrous and soft materials.

Standard-cut burrs are widely uesed and leave a fine finish

☆Our Services

More than 2000 products are available. Assembly line production, high standard and strict requirements.
OEM Services Offered
Customized Tools Offered
Free laser marking on tools and boxes Offered
Fast delivery time and Convenient Transportations. We have discount on shipping cost from our courier companies, such as FedEx, DHL, TNT, UPS etc.

☆Payment

T/T, Western Union, Paypal (Choose your convenient way)

☆Shipment

FedEx, TNT, DHL, UPS, EMS, etc.
The port is Beijing, Shanghai, Guangzhou, Shenzhen, any port in China. (choose your convenient way)

☆Package details

(1) One plastic pipe packs one piece, 10 pieces per group.

(2) Use air bubble paper to encase the plastic pipes.

(3) Put goods encased with air bubble paper into the carton box.

(4) Laser print brand name on cutter shank, 1 PCS in a plastic tube, 10 PCS per group.

☆Product Show



















☆Company Information

Zhuzhou Grewin Tungsten Carbide Tools Co., Ltd is located in hometown of Chinese carbide industry - Zhuzhou city. The company has more than 20 years' experience in manufacture, design and sale of various kinds of carbide products, main products include: Carbide end mills, carbide rods, indexable inserts, brazed inserts, wire drawing dies, forging dies, wood working tools, saw tips, mining buttons, etc

The company has passed ISO 9001: 2008 quality system, possesses advanced production equipments, complete testing instruments, strong R&D center and QC teams.
With excellent quality, strong technical support, and good after sales service, Grewin Carbide brand products are sold to more than 50 countries in the world, such as Europe, USA, south east Asia, Middle East, south America, etc.
The company is dedicated to " WE GROW, WE WIN". Grewin Carbide is growing up with the World's carbide technology, to meet the demand of our customers from all over the world.
