Gw Carbide - Silicon Carbide Sealing Rings / Cemented Carbide Sealing Rings
Zhuzhou Grewin Tungsten Carbide Tools Co., Ltd.- Certification：ISO9001
- Standard：Standard
- Material：Metal Rubber
- Application：Metal Cutting Machine, Metal Processing Machinery Parts, Bearing
- Type：Rotary Seal
- Performance：High Pressure
Base Info
- Model NO.：all sizes
- Shape：O-Ring
- Grade：Yg6, Yg3, Yg6X, Yg8, Yg12, Yg15, Yg20, Yg25
- Brand：Grewin
- Features：Good Wear Resistance, High Precision
- Materials：Solid Carbide
- Cutting Shape：Roll Ring
- Certificates：ISO9001-2008, SGS
- OEM：Accepted
- Sample：Free
- Delivery Time：About 15 Days
- Transport Package：Plastic&Carton
- Specification：33x23x19
- Trademark：G&W
- Origin：Zhuzhou China
- HS Code：8466910000
- Production Capacity：5000 PCS,Month
Description
Basic Info.
Model NO. all sizes Shape O-Ring Grade Yg6, Yg3, Yg6X, Yg8, Yg12, Yg15, Yg20, Yg25 Brand Grewin Features Good Wear Resistance, High Precision Materials Solid Carbide Cutting Shape Roll Ring Certificates ISO9001-2008, SGS OEM Accepted Sample Free Delivery Time About 15 Days Transport Package Plastic&Carton Specification 33x23x19 Trademark G&W Origin Zhuzhou China HS Code 8466910000 Production Capacity 5000 PCS/MonthProduct Description
Description:1.100% virgin raw material
2. Sintered in HIP Furnace
3. Many sizes & types available
4. ISO9001: 2008 certificate

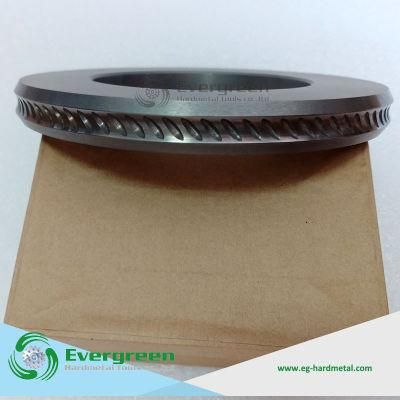

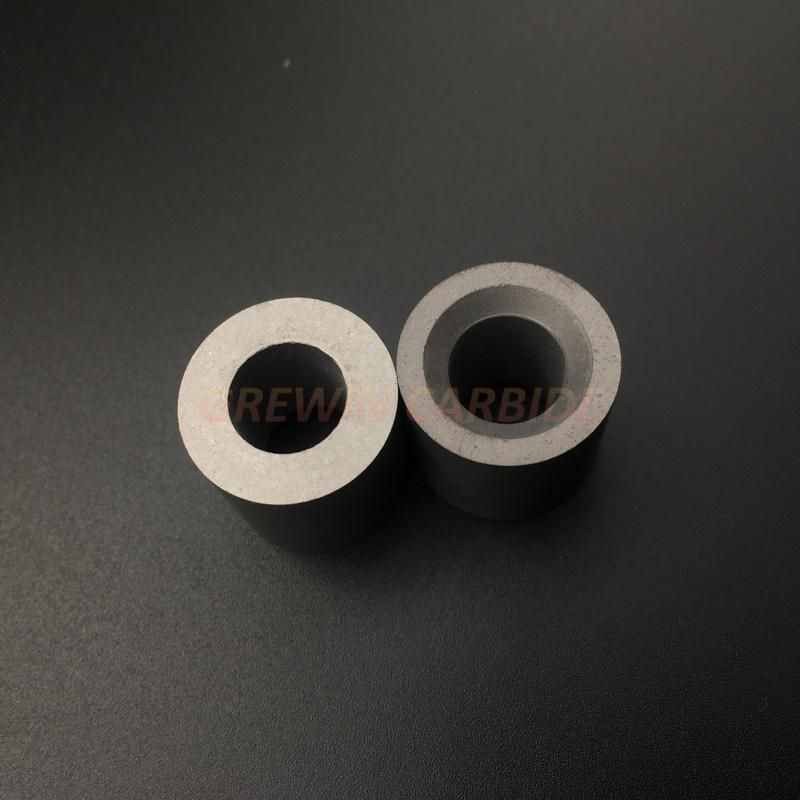

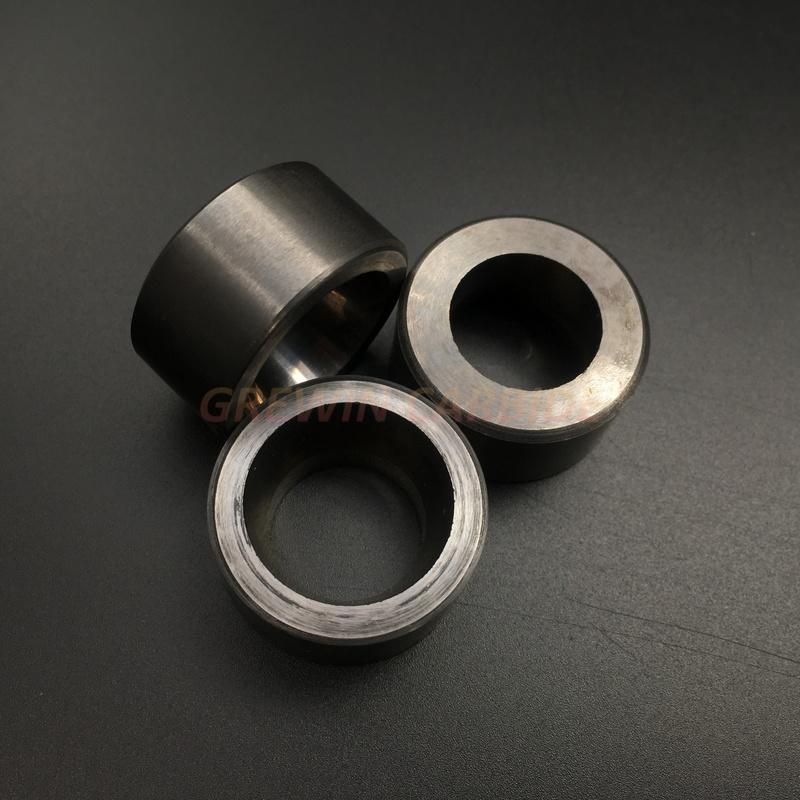

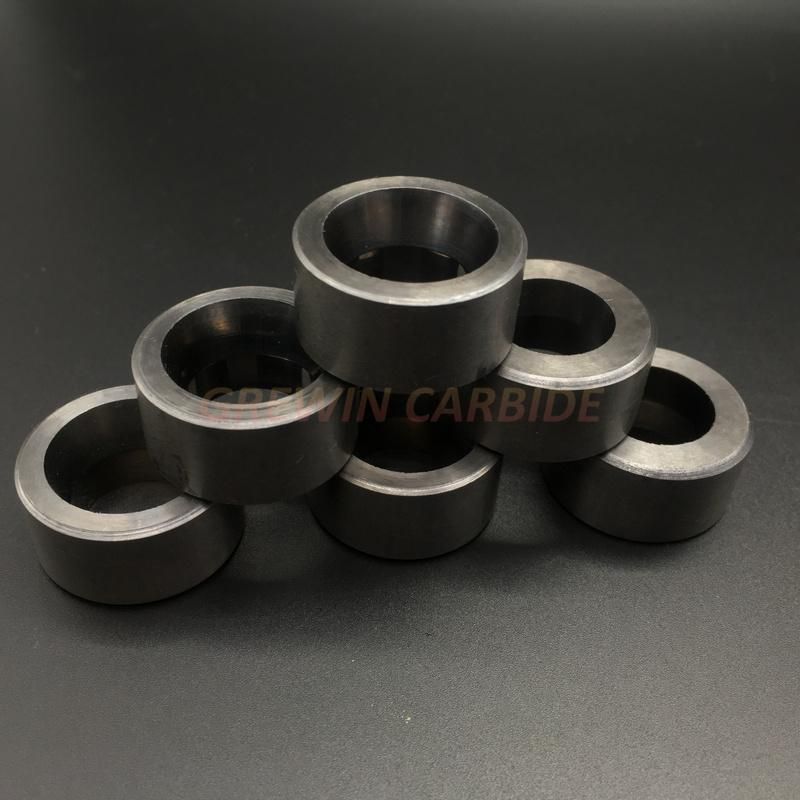

Tungsten Carbide Roll Ring as the characters of high wear resistance, high corrosion resistance and good compressive properties. It's widely used in petrochemical industries and other industries which call for high properties of the mechanical sealing rings or prats.
We can offer roller rings with different dimensions and can also produce it according to your requirements, like making groove before the sintering which can shorten the delivery time effectively and leave out the expensive and time-consuming machining process for you.
We make stress elimination for each product.
The working procedures: Fully communicate with the customers to understand their different demands. So our engineers can give you advice when you choose the grade, determine the data of grinding and cutting, use roll and trace the roll performance.
| Grade | Binder (Wt %) | Density (g/cm3) | Hardness (HRA) | TRS (>=N/mm²) |
| YG6 | 6 | 14.8 | 90.0 | 1520 |
| YG6X | 6 | 14.9 | 91.0 | 1450 |
| YG6A | 6 | 14.9 | 92.0 | 1540 |
| YG8 | 8 | 14.7 | 89.5 | 1750 |
| YG12 | 12 | 14.2 | 88.0 | 1810 |
| YG15 | 15 | 14.0 | 87.0 | 2050 |
| YG20 | 20 | 13.5 | 85.5 | 2450 |
| YG25 | 25 | 12.1 | 84.0 | 2550 |
Welcome to contact us any time. It is our responsibility to discuss with you and to work out the solutions for you!
