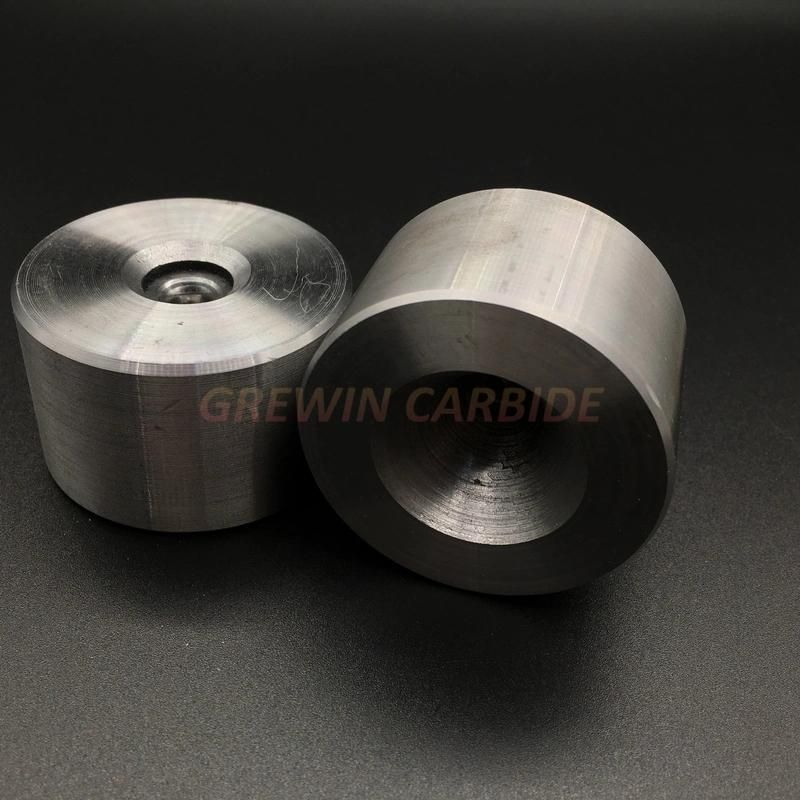

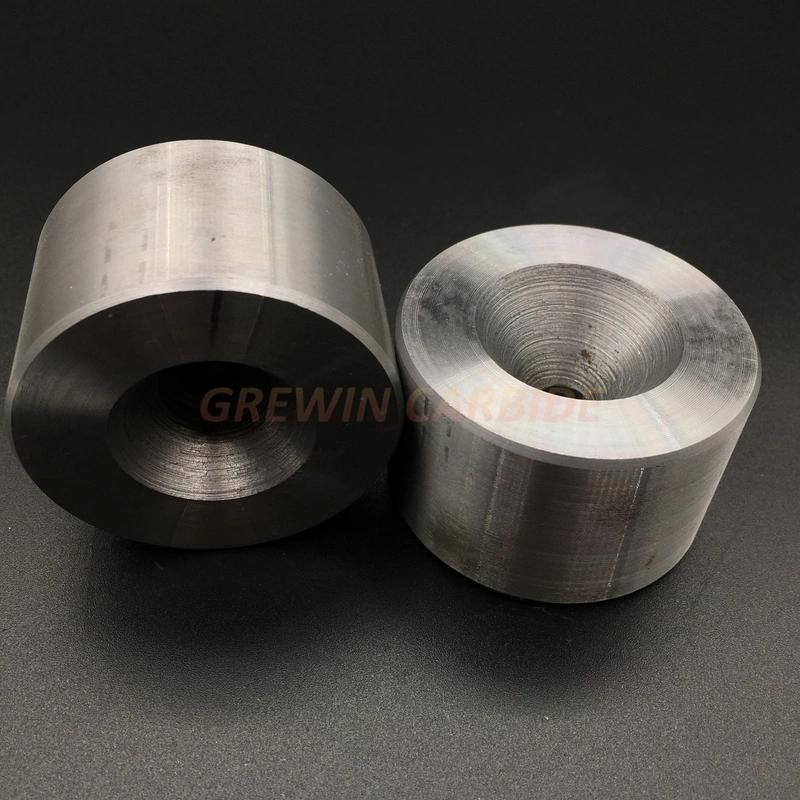

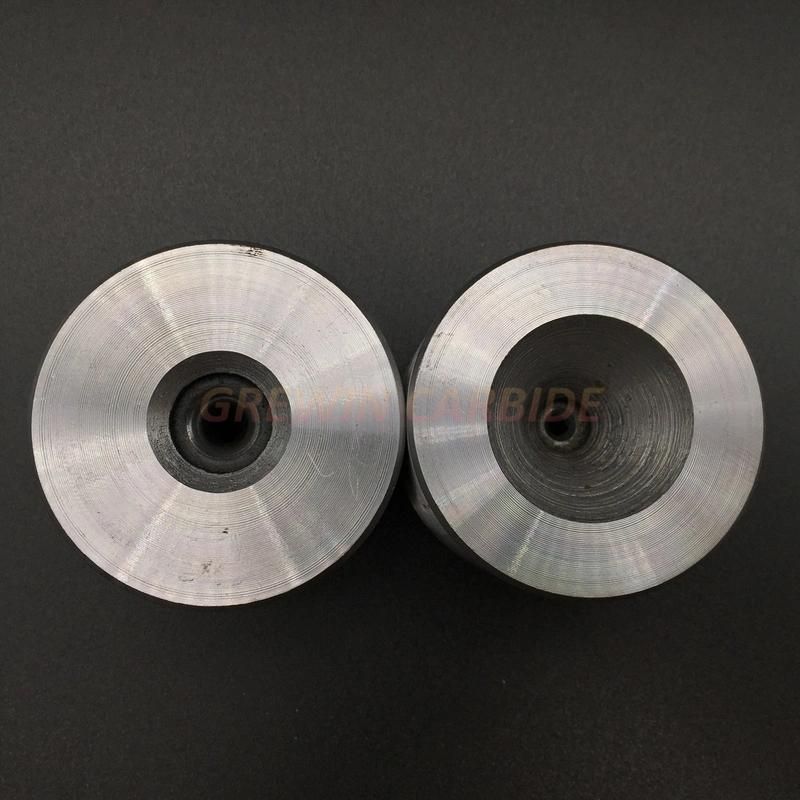

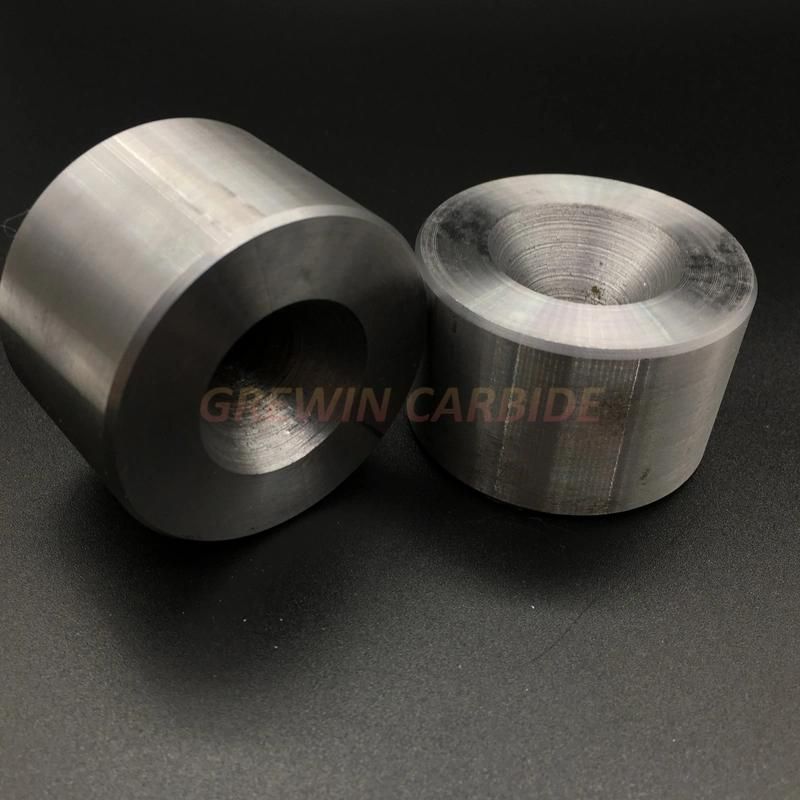

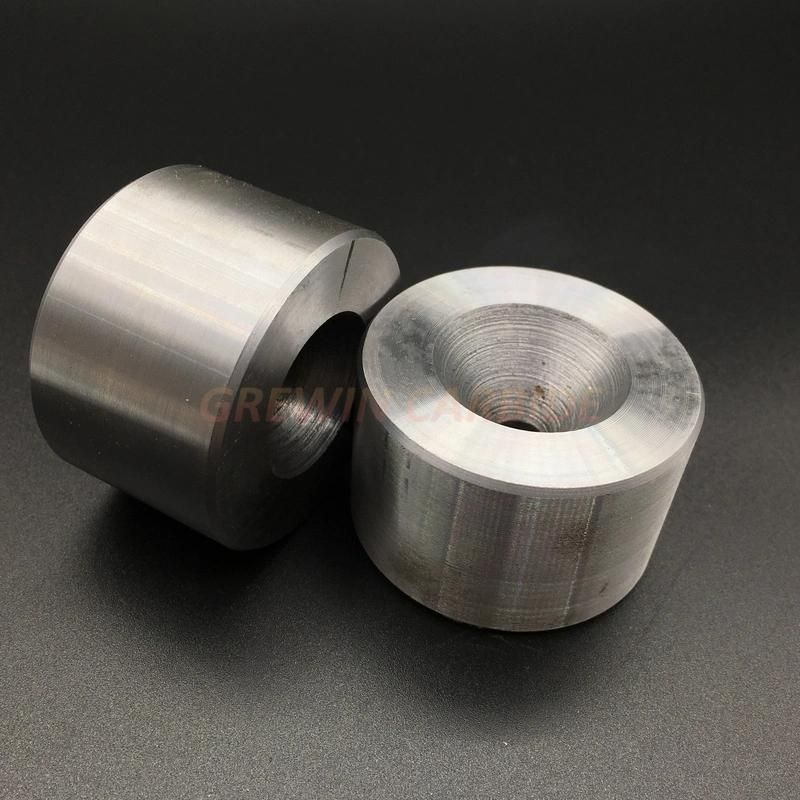

Gw Carbide-Carbide Wire Drawing Dies
Zhuzhou Grewin Tungsten Carbide Tools Co., Ltd.- Certification：ISO9001, ISO
- Application：Metal Cutting Machine, Metal Processing Machinery Parts, Hardware, Household Appliances, Electronic, Wire Industry, Textile
- Type：Tungsten Carbide Nib
- Shaping Mode：Compression
- Hole Type：Round Mould
- Cavity：Single-Cavity
Base Info
- Model NO.：S11, S13, W103, W104, W105, 6x4, 9x6, 16x13
- Warranty：1 Year
- Material：Tungsten Carbide
- Surface Treatment：Blank or Finish Grind
- Customized：Standard or Customised
- Grade：Yg3, Yg3X, Yg6, Yg6X, Yg8, Yg11, Yg15
- Types：S11, S13, R, W104, W105, 6X4, 9X6, 16X13, etc
- Tolerance：Blank, Finish Grind, Finish Grind with Steel Case
- Workpiece：Steel, Metal, Cast Iron, Stainless Steel Ect
- Characterisitics：High Precision, High Hardness etc
- Place of Origin：Zhuzhou, Hunan Province, China
- Samples：Free
- OEM：Avaiable
- Sizes：Alll Sizes Are Avaiable
- MOQ：10PCS
- Transport Package：Standard Export Carton
- Specification：D9 x 6, D16 x 13, S11, S13, W type
- Trademark：GW
- Origin：Zhuzhou Hunan
- HS Code：8207209000
- Production Capacity：100 Tons Annually
Description
For steel and alloy metal or rods and tubes.K40 14.5 2400 88.5 K45 14 2800 87 For high shrinkage of steel bars and pipes
Types
type 01, type 10, type 11, S11, type 12, type 13, S13 ,type 21, type 22, type 23, type 30, type 31, type 40, type41, type42, type60, R-2, R-4, R-5, R-6, R-7, R-8(9,10) , type V , type W, Type W (ß), type WTA.

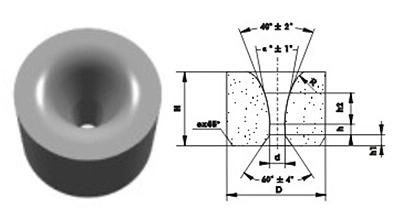

Type S11-carbide drawing die nibs with large reducing angles for drawing ferrous metal wires.
S11-8 6 0.3-1.0 0.3-1.0 14° 10 8 0.7 0.7 14° 13 10 0.4-2.8 0.4-2.8 16° 15 13 0.5-3.0 0.5-3.0 16° 16 14 0.4-3.8 0.4-3.8 16° 20 17 1.2-4.7 1.2-4.7 18° 21 17 1.8-5.7 1.8-5.7 18° 22 18 1.7-6.4 1.7-6.4 18°

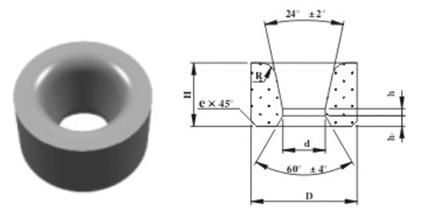

Type 22- Carbide drawing die nibs for drawing non-ferrous metal tubes
22-20 13 2.8-5.7 1.5 30 18 6.7-13.5 2-4 35 18 14.5-17.5 4 45 24 12.5-13.5 3 50 25 24.5-30.5 5-6 60 30 24.5-33.5 3.5 65 32 34.5-39.5 6 70 35 34.5-35.5 6.5 75 35 40.5-42.5 6.5 85 40 47.5 6.5 80 35 34.5-47 6.5 90 40 46-53 6.5 100 40 55-57 6.5 120 45 59-67 6.5 130 50 69-77 6.5 140 50 79-88 6.5

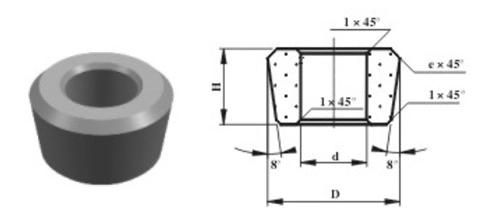

Type 30- Carbide floating plugs for drawing metal tubes
30-4 10 11 1 6 12 13,15 1 8 12 17 1 10 14 19.5,21.5 1 12 16 23.5 1 14 16 25.5,27.5 1-2 17 27 28-37 2 19 27 38.2,39.4 2 21 27 40-43 3 23 32 44-46 3-4 25 32 47-53 4 27 32 54-57 4 28 35 58-64 4
Type W
Type WTA
All dimensions in (mm)
Note: We also produce special carbide drawing die s upon the drawings.
Company Information:
Zhuzhou Grewin Tungsten Carbide Tools Co., Ltd is located in hometown of Chinese carbide industry - Zhuzhou city. The company has more than 20 years experience in manufacture, design and sale of various kinds of carbide products, main products include: carbide end mills, carbide rods, indexable inserts, brazed inserts, wire drawing dies, forging dies, wood working tools, saw tips, mining buttons, etc
The company has passed ISO 9001:2008 quality system, possesses advanced production equipments, complete testing instruments, strong R&D center and QC teams.
With excellent quality, strong technical support, and good after sales service, Grewin Carbide brand products are sold to more than 50 countries in the world, such as Europe, USA, south east Asia,middle east,south America, etc.
Grewin Carbide is growing up with the World's carbide technology, to meet the demand of our customers from all over the world.
Our Services:
More than 2000 products are available. Assembly line production, high standard and strict requirements.?
OEM Services Offered
Customized Tools Offered
Free laser marking on tools and boxes Offered
Fast delivery time and Convenient Transportations. We have discount on shipping cost from our courier companies, such as FedEx, DHL, TNT, UPS etc.
Types
type 01, type 10, type 11, S11, type 12, type 13, S13 ,type 21, type 22, type 23, type 30, type 31, type 40, type41, type42, type60, R-2, R-4, R-5, R-6, R-7, R-8(9,10) , type V , type W, Type W (ß), type WTA.
Type S11-carbide drawing die nibs with large reducing angles for drawing ferrous metal wires.
S11-
Type 22- Carbide drawing die nibs for drawing non-ferrous metal tubes
22-
Type 30- Carbide floating plugs for drawing metal tubes
30-
Type W
| Type | D | H | d | h | α° |
| W102-d | 9 | 6 | 0.4-1.3 | 0.4-0.7 | 12° |
| W103-d | 12 | 8 | 0.2-2.7 | 0.5-1.4 | 1° |
| W104-d | 15 | 10 | 0.5-5.0 | 0.5-2.0 | 14° |
| W105-d | 20 | 14 | 1.0-5 | 0.8-2.0 | 14°-16° |
| W106-d | 25 | 18 | 5.3-8.0 | 1.9-2.2 | 16° |
| W107-d | 30 | 22 | 2.9-11.7 | 2.2-3.6 | 16° |
| W108-d | 35 | 25 | 6.0-1.0 | 2.5-4.8 | 16° |
| W109-d | 40 | 27 | 10.3-16.5 | 3.2-4.6 | 18° |
| W110-d | 50 | 30 | 14.4-19.4 | 4.4-4.8 | 18° |
| W111-d | 60 | 35 | 18.5-27 | 4.8-5.6 | 18° |
| W112-d | 70 | 40 | 24.5-31.5 | 5.4-6.0 | 18° |

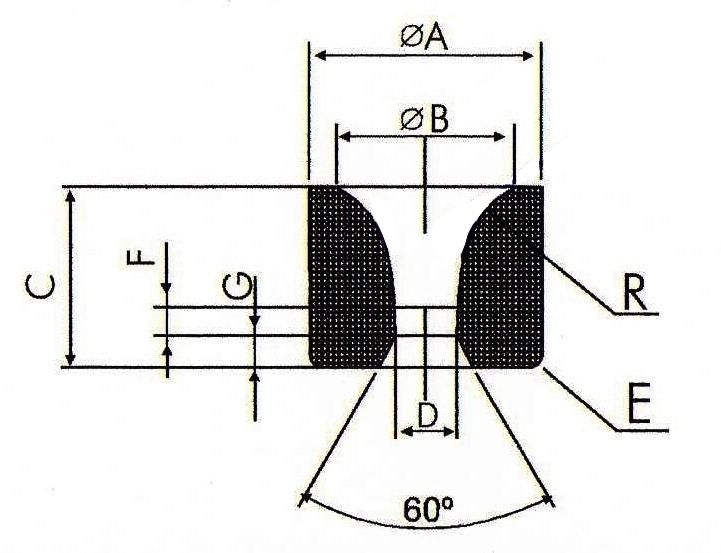

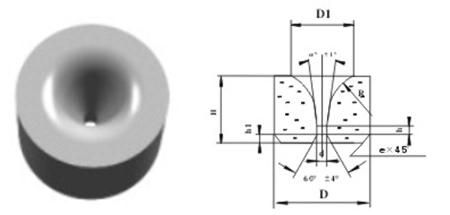

Type WTA
