• Model NO.：LJZ-500*4200
• Spinning Deformation Condition：Cold Spinning
• Spinning Belt Wheel Type：Combined Belt Wheel
• Spinning Wheel Number：Double
• Finished Product：Pipe
• Finished Product Shape：Special Shape
• Processing Profile：Aluminum
• Aluminum Cutting Saw：Aluminum Window and Door Machine
• Double Head Cutting Saw：Double Head Cutting Machine
• Transport Package：Suitable for Sea Freight
• Specification：1900kg
• Trademark：Sunny
• Origin：China
• HS Code：847780000
• Production Capacity：20 Sets Per Month

Basic Info.

Model NO. LJZ-500*4200 Spinning Deformation Condition Cold Spinning Spinning Belt Wheel Type Combined Belt Wheel Spinning Wheel Number Double Finished Product Pipe Finished Product Shape Special Shape Processing Profile Aluminum Aluminum Cutting Saw Aluminum Window and Door Machine Double Head Cutting Saw Double Head Cutting Machine Transport Package Suitable for Sea Freight Specification 1900kg Trademark Sunny Origin China HS Code 847780000 Production Capacity 20 Sets Per Month

Product Description

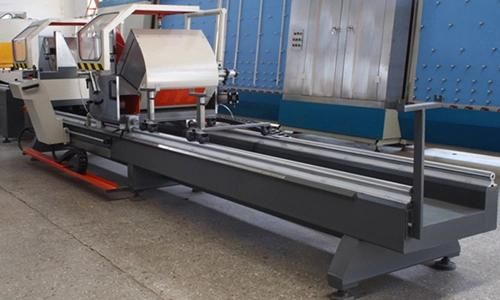

Aluminum Cutting Saw for Window and Door Machine  Aluminum window machine

1. Product Description
1). The imported numerical control system with numerically controlled cut length ensures precise dimensions.
2). The imported ball screw shaft drives the machine head to move horizontally with high precision of repeated positoning.
3). A series of optimal length data can be inputted at the same time to realize continuous cutting in series.
4). The machine adopts imported specialized saw blades for stiff alloys, imported linear guide reil pairs as cutting feed guide rails, and hydraulic damping cylinder to drive the feed of saw blades.
5). The processing range is wide, with cut length up to 4200 mm, and cut angles of 90º , 45º , 22.5º , The switchover between three angles is automatic.
6). It can cut both PVC and Aluminum Profile.
7). If your production scale is large, you can consider to buy this model.
8). Before you buy the machine, please make sure then tell me your local power supply, then we can make the right according to your true voltage.

2. Technical data
Model number              LJZ-500X4200
Operation air pressure     0.4~0.6Mpa
Power supply                    380V 50Hz or according to customer request
Cutting motor power        2.2kw× 2
Blade rotational speed   3100 r/min
Saw blade specification  D=500mm d=30mm
Cutting length     Min380mm Max4200mm
Cutting angles     90° , 45° , 22.5° , 67.5°
Contour dimension(L× W× H)   5500× 1750× 1990mm
Machine weight(about)     1900kg
