• Model NO.：918-WSKA, 918-WSKOB, 918-WSKB, 918-WSKB-B-1
• Specification：ISO, CO, CE, CCC
• Trademark：GMEC
• Origin：Zhengzhou
• HS Code：8479819000
• Production Capacity：600-1500kg 8h

Basic Info.

Model NO. 918-WSKA, 918-WSKOB, 918-WSKB, 918-WSKB-B-1 Specification ISO, CO, CE, CCC Trademark GMEC Origin Zhengzhou HS Code 8479819000 Production Capacity 600-1500kg8h

Product Description

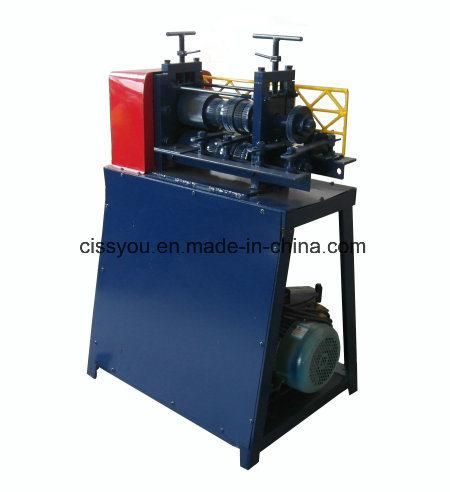

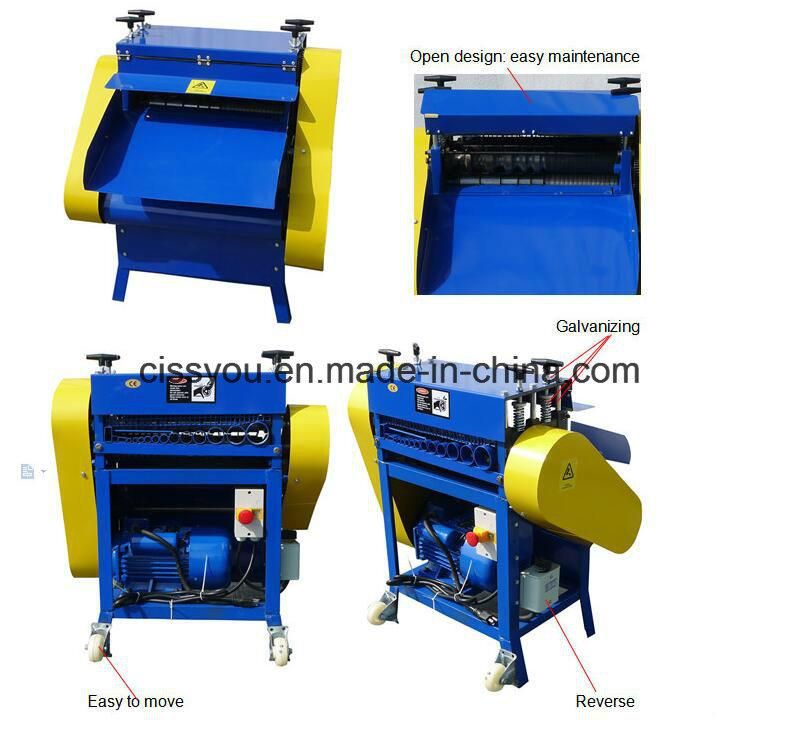

                  Scrap Cable Wire Stripper Copper Wire recycling machine

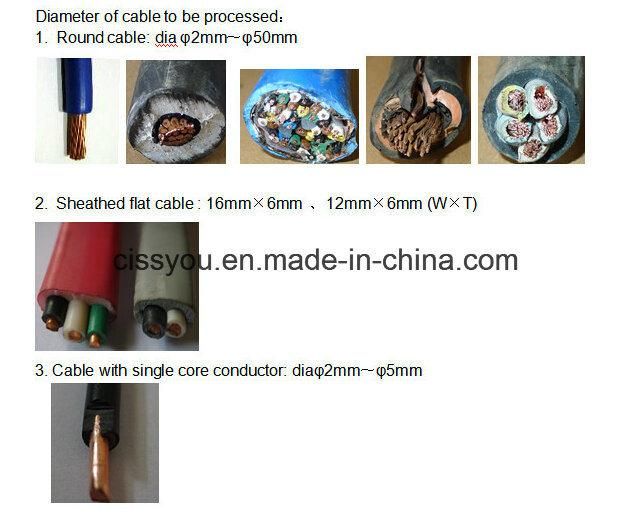

Wire stripper machine, copper wire stripper is designed to strip various wire: Copper wire, single core wire, multicore wire, aluminum wire, sheet cble wire, flat wire, etc. After processed by a Scrap Cable Stripping Machine, metal like copper, aluminum or steel can be recovered
This machine is applicable to various types of wire, monofilament and filoselle cable.
It is a new wire stripping machine that widely used in the dissembling industry.

This machine has the following specifications:
Low power requirement.
Small dimensions.
Easy to move, place and install.
Easy and rapid maintenance.

Functions and features:
1. Functions and features of the cable stripper machine: Light, low noise, peel and strip, especially for cutting flat wire with soft silk, plug wire and the wire with inner core 2, 3 or 4 roots of round cable which can be stripped easily.
2. Please be sure that the joint parts of the feeding material has been cut off when feeding to avoid damaging the blades of the cable stripper. Before using the cable stripper, please adjust the machine first and debugging, don't start the motor.
3. Please fix and tighten the parts of screw if the out material can be separated. Then start the motor and recognize every parts of the hole and feed it by the root.
4. Comparing with other machine, the cable stripper machine is relatively complex. But if adjusted appropriately, the effect and the benefit are considerable.
5. The blade of the stripper machine should be regulated and grinded as it is. If so the cable stripper can be operated easily.

If the copper wire and rubber or plastic cannot be separated completely, please pay attention as below:
1, Choose the right feeding hole, adjust the positioning fixture via the diameter of cable'
2, Adjust the gap between the drove-gears according to the diameter of cable.
Basically, the gap should be smaller than the diameter of cable.
3, Keep both sides of the long blades to be symmetrical, as well as the long blades and the position of fixture.

Model	918-WSKA	918-WSKOB	918-WSKB	918-WSKB-B-1
Voltage	220V/380V	220V/380V	220V/380V	380V
Motor	2.2KW	2.2KW	4KW	5.5KW
Dimension(mm)	600*580*840	700*610*840	800*580*1200	900*580*1200
Weight	80KG	110KG	200KG	250kg
Capacity(KG/8H)	100-300	600-1500	800-2000	1500-3500
Chopping Range of Diameter	1-35mm	1-42mm	2-98mm	10-165mm
