• Model NO.：colo
• Brand Name：Colo
• Size：Custom-Made
• Voltage：110V,380V
• Power Supply：Electric
• Frequency：50-60Hz
• Filters：Polyester
• Warm-up Time：30min
• Fan Motor：Matched with Different Size
• Heating Type：Oil,Electril,Gas
• Transport Package：in Bulk
• Specification：can be ordered
• Trademark：COLO
• Origin：Hangzhou. China
• HS Code：8424899990
• Production Capacity：30PCS

Basic Info.

Model NO. colo Brand Name Colo Size Custom-Made Voltage 110V/380V Power Supply Electric Frequency 50-60Hz Filters Polyester Warm-up Time 30min Fan Motor Matched with Different Size Heating Type Oil/Electril/Gas Transport Package in Bulk Specification can be ordered Trademark COLO Origin Hangzhou. China HS Code 8424899990 Production Capacity 30PCS

Product Description

Manual Conveyor System Powder Coating Plant for Small Production


Manual Paiting booth, powder curing oven, manual powder coating equipment.
OPTIONAL ACCESSORIES
Change in charge of overhead conveyor
Oil Burners
Mechanical installation and electrification


1.NOTES

Listing and specifications are provisional and subject to change without notice for improvements
and / or updates.

Director: Oven and spray booth powder galvanized steel structure and painted steel conveyor
Rock wool insulation with a thickness of 150 mm and a density of 100 kg m3. SAV; Supply of
spare parts

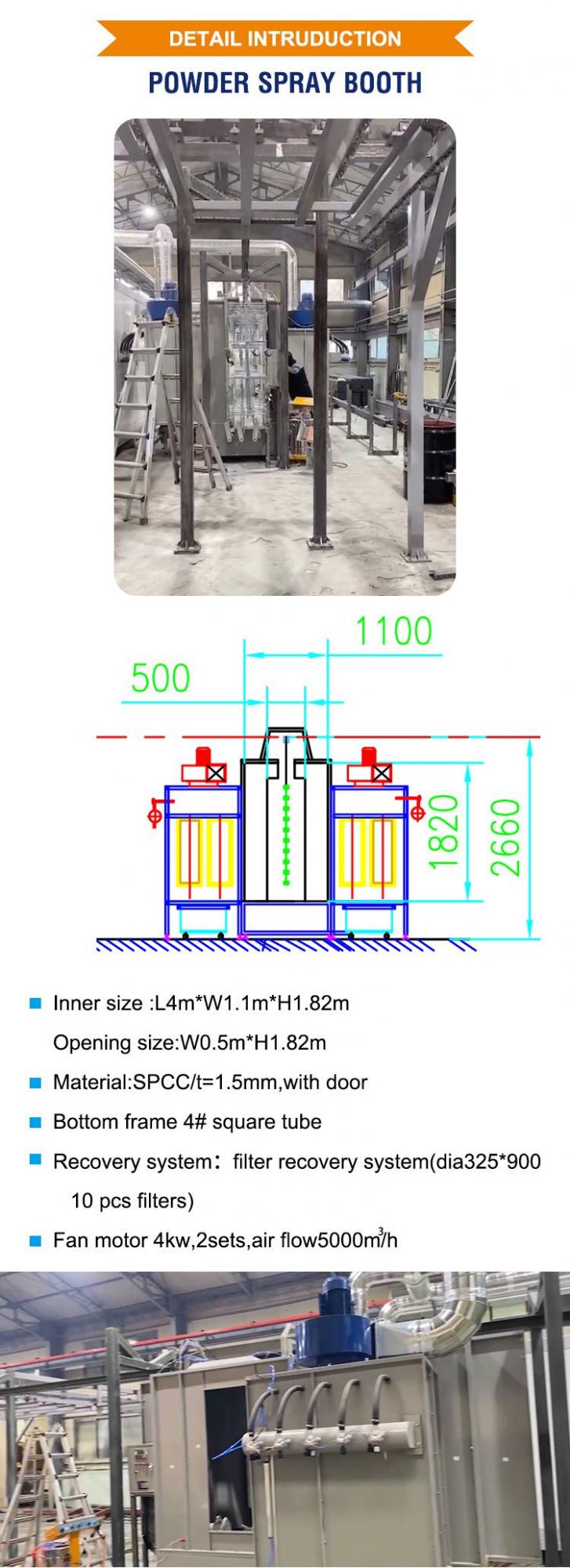

2.Spray booth

Model	COLO-S-3121
Booth Type	Closed
Operator dimensions	L3000 x W1200  x H2100
Overall dimensions	L4000 xW3000  x H2300
Weight	460kg
Power supply	Electric
Nominal power	5.5kW
Voltage	380V
Frequency	50-60Hz
Filters	Polyester
Filters count	6
Filters hang type	easy for change
Filter cleaning system	Pneumatic
Warranty	12 months

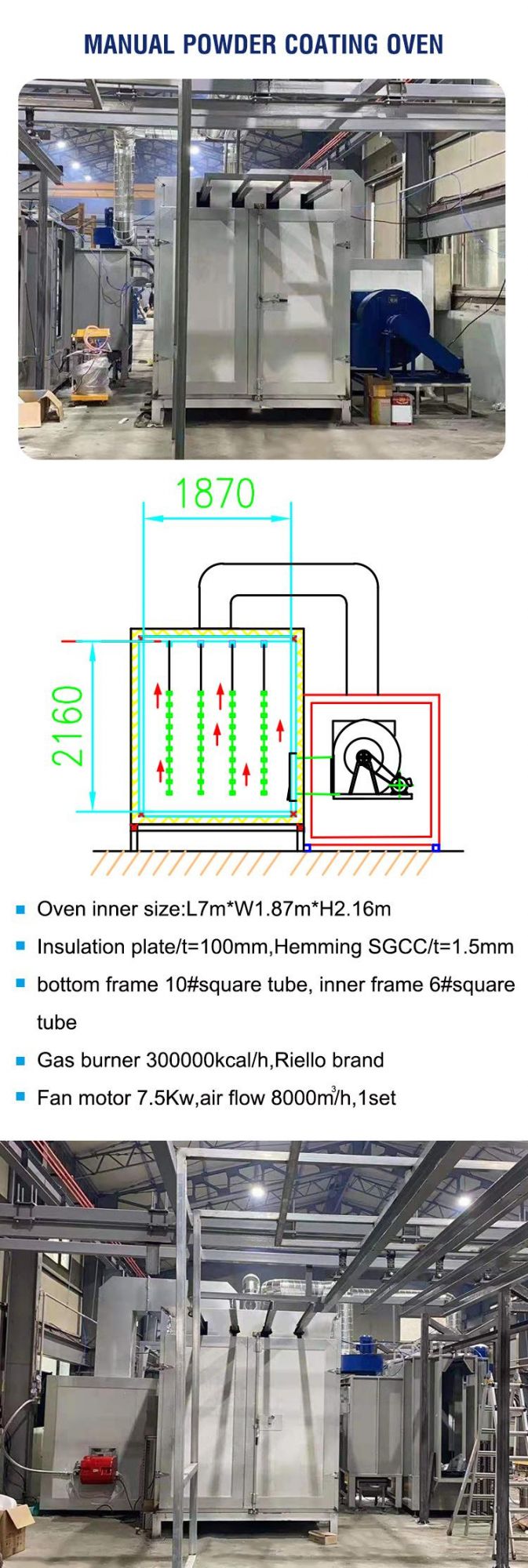

3. Curing oven


Model	colo-5219
Worksize dimensions	1900width x 1900 height x 5000depth
Overall dimensions	2100width x 2200 height x 5200depth
Power supply	LPG/Gas/Diesel
Voltage/Frequency	380V/220v(50-60hz)
Warm-up time	15-30 min. (180°C)
Temperature stability	< ± 3.0-6°C
Temperature max.	250° C
Motor power	7.5kw
Circulation/Air-flow	Vertical,Variable through holes on the walls
Ventilation performance	8288-16576 m3/h
Trolley	two trolley

4.Conveyor system

Lenght(m)	3600width x W1200 height x H500
Hanging method	mamaul
Maximum hanging weight	500kgs

5.pic show
All the size we can designed by the request.we can also supply different types powder
coating line.you can choose which you like and we will also make a design for your workpiece.

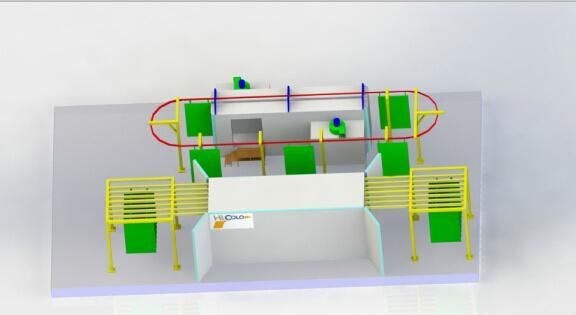

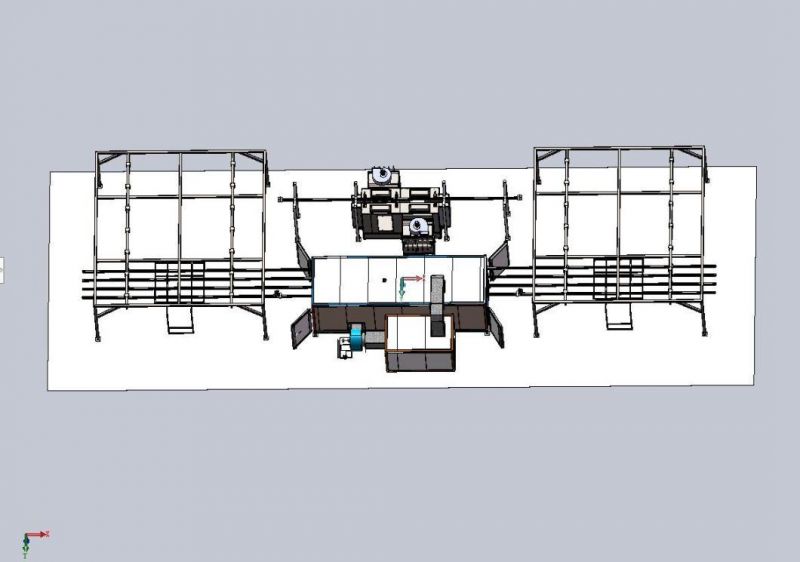

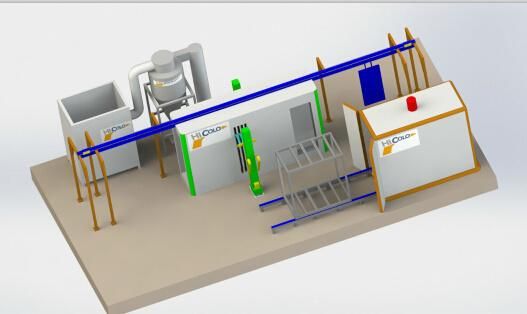

1.view

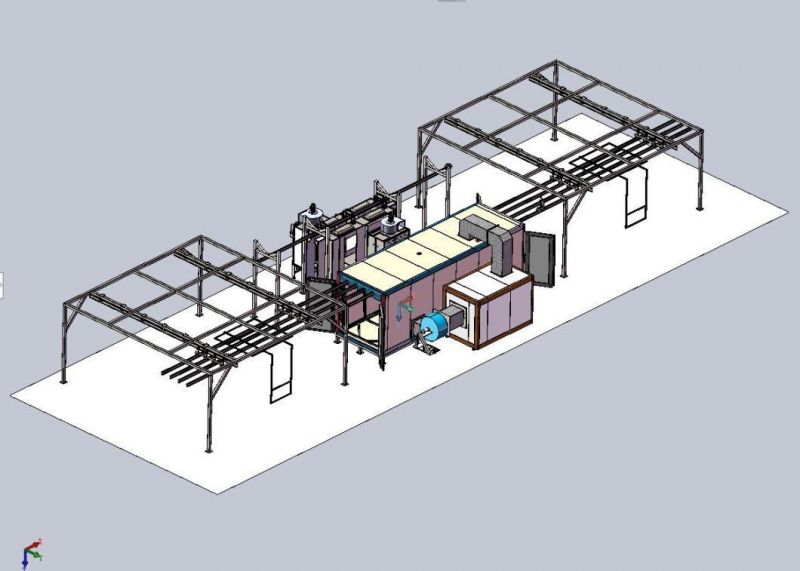

2.view

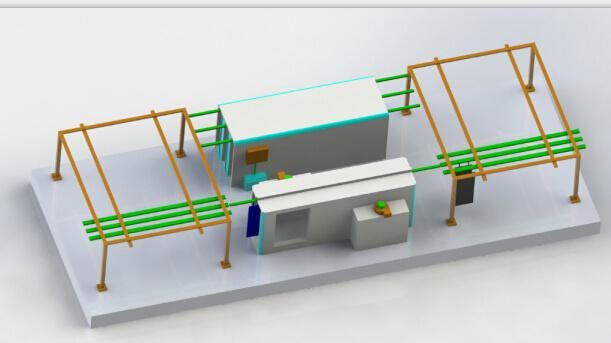

 3.view

6.please provide more details
in order to provide with advanced, practical, reliability, economy Powder coating line,


1.      The max weight and size of the workpiece (L x W x H)?

2.      The spraying process requirement of the workpiece?

3.      The max production output per month or per year?

4.      The size of the production area (L x W x H)? Does it have the flat floor?

5.      The heating type you need: gas, oil, electric, biomass particle or coal?

6.      How many colors to be changed to spray per day?

7.      The powder spraying type: automatic, semi-automatic, or manual?

8.      The recovery mode: automatic, semi-automatic, or manual?

9 .    The pretreatment mode: groove, spray or sand blasting?

10.    The local electric voltage (V/P/Hz)?

11.    If you have the designated brand spare parts please let us know.
