• Model NO.：2&3 Waves
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Name：Guard Rail Roll Forming Machine
• Steel Thickness：2.6-3.4mm
• Coil Width：486mm,756mm
• Rolling Speed：0-15m,Min
• Transport Package：No Packing
• Trademark：SAIBO
• Origin：Jiangsu, China
• HS Code：84552210
• Production Capacity：300sets,Year

Item NO

Description

Offered specification

1Roll Forming Machine

Guardrail

2Material Width486mm/756mm3Rolling Speed15m/min4Rolling Thickness2.6-3.4 mm5Control SystemPLC (Panasonic) as list in the note6Un Coiler15 ton hydraulic de-coiler with coil car7Leveling Station1 station (three rollers over four), 7.5kw8Servo feeding to punching5.5kw9PunchingTwo sets10Roller Stations18 stations (according the final design)11Roller Material

GCR15, HRC58-62ºC, coated with chrome

12Shaft Material and DIA¢100mm, material is 45# forge steel13Maim Motor Power45kw14Hydraulic Station Power30kw15Hydraulic Pressure25-30Mpa16Cutting modeHydraulic track cutting by servo motor 5.5kw17Material Of CuttingCr12Mov quenching 58-62ºC18Structure Of The StationsGuide pillar19Tolerance3m+-1.5mm20Electric Source

380V, 50HZ,3 phase

According to customer's require

21Way Of DriveBy gearbox22Color Of The MachineYellow and blue23Container Need1 x40 feet & 1 x20 feet24How to change the profileChange the last three roller stations which is in one cassette

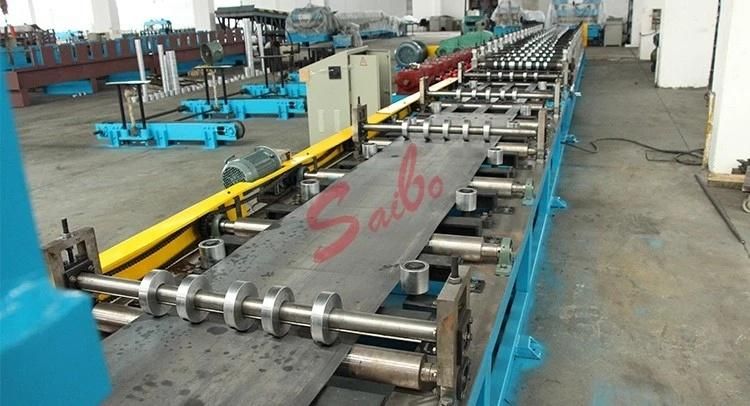

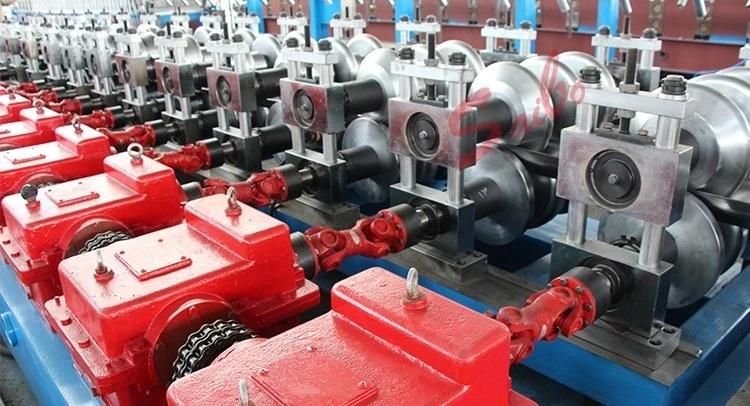

Machine pictrues for reference:
