Guard Rail Roll Forming Machine by Gear Box

Zhangjiagang City Saibo Science & Technology Co., Ltd.
  • Type：Rolling Machine
  • Forging Forming Method：Mold Forging
  • Power Source：Electric
  • Feature：High Efficiency
  • Certification：ISO9001, CE
  • Warranty：12 Months

Base Info

  • Model NO.：W beam
  • Customized：Customized
  • Advantage：Easy to Maintenance
  • Condition：New
  • Product Name：Guard Rail Roll Forming Machine
  • Steel Thickness：2.0-3.0mm
  • Uncoiler：5t Hydraulic Uncoiler
  • Punching：2 Sets
  • Transport Package：Sea Packing
  • Trademark：SAIBO
  • Origin：Jiangsu, China
  • HS Code：84552210
  • Production Capacity：300sets,Year

Description

Item NO

Description

Offered specification

1Roll Forming Machine

Guardrail

2Material WidthAccording the profile3Rolling Speed12-15m/min(not include cutting & punching time)4Rolling Thickness2.0-3.0 mm5Control SystemPLC (Panasonic) as list in the note6Un Coiler5 ton hydraulic de-coiler7Roller Stations12 stations (according the final design)8Leveling Station1 station (three rollers over four)9PunchingTwo sets10Roller Material

GCR15, HRC58-62ºC, coated with chrome

11Shaft Material and DIA¢100mm, material is 45# forge steel12Maim Motor Power37kw13Hydraulic Station Power5.5kw14Hydraulic Pressure16Mpa15Material Of CuttingCr12Mov quenching 58-62ºC16Structure Of The StationsGuide pillar17Tolerance3m+-1.5mm18Electric Source

380V, 50HZ,3 phase

According to customer's require

19Way Of DriveBy gearbox20Color Of The MachineYellow and blue21Container Need1 x40 feet & 1 x20 feet

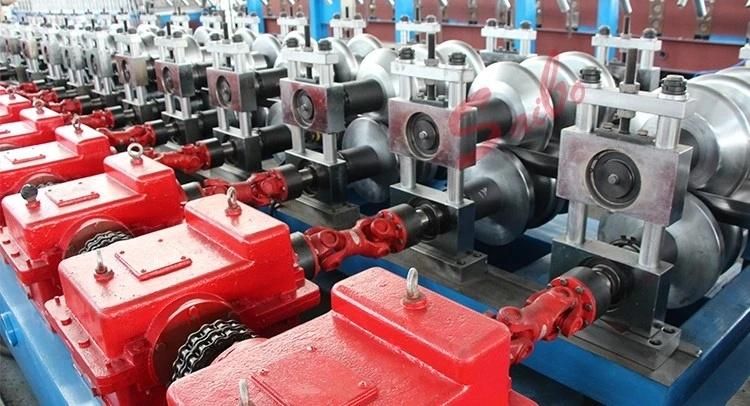

Machine pictures for reference:
Guard Rail Roll Forming Machine by Gear Box
Guard Rail Roll Forming Machine by Gear Box
Guard Rail Roll Forming Machine by Gear Box

 Delivery1. Sea shipping.2. Air shipping for sampling.3. Train shipping for landlocked countries serviced by CRExpress Europeblock train ferry.
Guard Rail Roll Forming Machine by Gear Box
About Saibo
Guard Rail Roll Forming Machine by Gear Box
Saibo Science & Technology - 20 Years Experience Manufacturer in Developing and Exporting.Zhangjiagang City Saibo Science & Technology Co., Ltd. is a professional manufacturer specializing in the developing and exporting of different kind of high speed roll forming machine, Main use of our roll forming machine is for Solar Structures, PEB project and also for Cable tray, Guard Rail, Roofing Sheets, Floor Decking and all of the different kind purlin/channel which makes from GI/PPGI/PPGL/Aluminium/Aluminium alloy/SS . Our company, which is located in Zhangjiagang city, Jiangsu province, near Shanghai City with superior geographic position and convenient transportation.
Guard Rail Roll Forming Machine by Gear Box

We engaged in the steel structure industry in 20 years and devoted to developing some steel structure machines with professional technology and reasonable price, we supply the best machines for our new and regular customers. All of our technology team and marketing person all more than 10 years working. In particular, we are a leading exporter in the field of steel structure construction and can provide professional service, high quality,  through design, and installation. Our goal is" future by heartiness, faith leads to the world".
Guard Rail Roll Forming Machine by Gear Box

International certification, National Certificate of equipment verification, and more than 30 invention patents are done in Saibo Machinery.

Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV

National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration, etc.
