• Model NO.：HJ-RSM201906
• Product Size：Dia 8-32mm
• Steel Grade：High Carbon Steel, Low Carbon Steel, Alloy Steel
• Annual Capacity：300,000-400, 000tons
• Raw Material Size：50*50-150*150mm
• Raw Material：Scrap,Billet
• Roller Size：Dia 250,280,300,400,520,600
• Transport Package：Seaworthy Packing or as Customers′request
• Specification：ISO9001, SGS, BV
• Trademark：Hangji
• Origin：Shaanxi, China
• HS Code：8455213000
• Production Capacity：30 Sets,Year

Basic Info.

Model NO. HJ-RSM201906 Product Size Dia 8-32mm Steel Grade High Carbon Steel, Low Carbon Steel, Alloy Steel Annual Capacity 300,000-400, 000tons Raw Material Size 50*50-150*150mm Raw Material Scrap/Billet Roller Size Dia 250,280,300,400,520,600 Transport Package Seaworthy Packing or as Customers′request Specification ISO9001, SGS, BV Trademark Hangji Origin Shaanxi, China HS Code 8455213000 Production Capacity 30 Sets/Year

Product Description

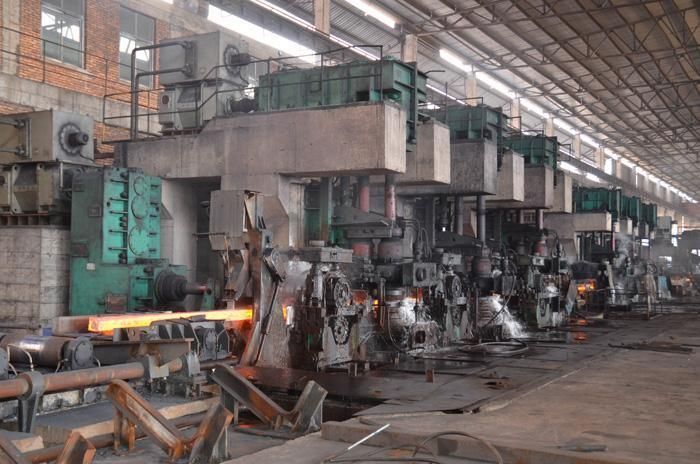

300,000-400,000 TPY REBAR PRODUCTION LINE
Summarize1.Briefings: The qualified billet transported to rolling plant by roller bed, By the pusher-type furnace heated to 1050 ~ 1150 ºC,Pushed out by discharging machine, billet feed to roughing mill Φ550×6 group by furnace delivery table, after roll 5 passes, cutting by 1# flying shear, then enter into intermediate rolling mill group Φ450 ×6,after sheared by 2# flying shear, then enter into the Φ350×8 mm Finishing mill group(8 stands), after water treatment,enter into conveyer roller bed, and then sheared by dividing shear ,enter into rolling piece conveyer roller bed, then enter into cooling bed, cutting by cut-to-length shear, then banded ,then delivery or enter into storage.The whole production line will be equipped with 19 rolling passes all together, among which, Φ550mm ×6 roughing mill is the shuttle rolling type mill, and after taking off ends and the semi-finished materials will enter other 14 intermediate(Φ450×6),finishing mills(Φ350×8), which are all the continuous rolling type (DC controlled). 2.Output Products: Φ8-32mm Rebar          Raw material specifications: 150×150×6000/12000mm
3.Annual Capacity: 300,000-400,000 Tons/Year
4.Process flow:
Continuous casting billet→Heating→3-Hi Φ550 Roughing mill(6 stands)→1# Flying shear→Intermediate mill(Φ450×6)→2# Flying shear→Φ350 Finishing mill(8 stands)→Multi-lengths flying shear→Pinch roll→Step cooling bed→Cut-to-length shear→Collecting→Packaging→Inspecting→Labeling→Storage
5. Declaration
5.1  Each and every piece of the machinery we provide can be operated smoothly. The operating noise meets the national standard.
5.2  The supplier will provide technical support and guidance on site while the demander covering the cost.
5.3  The rolling line is compact and can be operated smoothly with low cost.
5.4  The rolling line also has achieved a high degree of automated production, saving a great quantity costs.
Quotation Scope of Equipment Supply

NO.	Equipmet	Specification	Qty.	Remark
1	Φ550 short-stress path rolling mill	Include motor,couplings, reducers(hardened surfaces),base plates,universal joint and universal joint brackets	6 sets	Used,Re-manufacture
2	Φ450 short-stress path rolling mill	Include motor,couplings, reducers(hardened surfaces),base plates,universal joint and universal joint brackets	6 sets	Used,Re-manufacture
3	Φ350 short-stress path rolling mill	Include motor,couplings, reducers(hardened surfaces),base plates,universal joint and universal joint brackets	8 sets	Used,Re-manufacture
4	Roll Change Manipulator(All block mill stands)		2 sets	Brand new
5	1# Flying shear		1 set	Used,Re-manufacture
6	2# Flying shear		1 set	Brand new
7	Multi-lengths flying shear		1 set	Brand new
8	Cut-to-length flying shear		1 set	Brand new
9	Uncoiled cooling transportation line		1 set	Brand new
10	Re-bar turn over device			Used,Re-manufacture
11	Rough and Medium Rolling mill Tipping Device			Used,Re-manufacture
12	Step cooling bed	60×6m	1 set	Brand new
13	Conveyor Roller table		1 set	Brand new
14	Rebar counter		1 set	Brand new
15	Automatic packing machine		1 set	Brand new
16	Electronic Control Automation(PLC)	complement	1 set	Brand new
17	Lubrication station and Hydraulic station	complement	1 set	Brand new
18	Motor(All machines and all block stands)	complement	1 set	Brand new

Before sale: design the suitable machine based on the specific demands

Medium sale:

1.Based on customer's demand to offer moderate quotation project 2.Accept customers to visit our factory

3.Help customer work out the schedule in china

After-sale:

1.On-site training personnel 2.Appoint special aftersale service staff, arrived at the scene guide clients  installation and commission


Xi'an Weikeduo Electrical & Mechanical Equiment Co., Ltd.

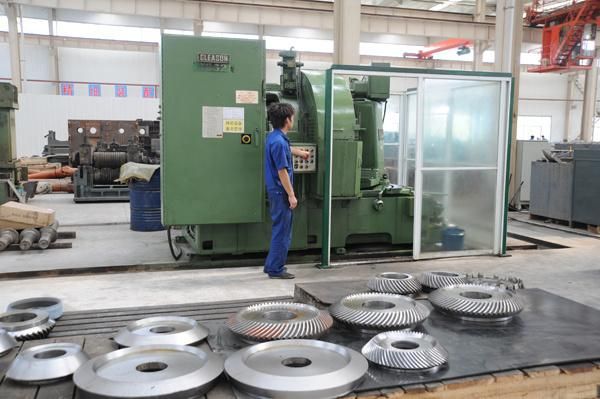

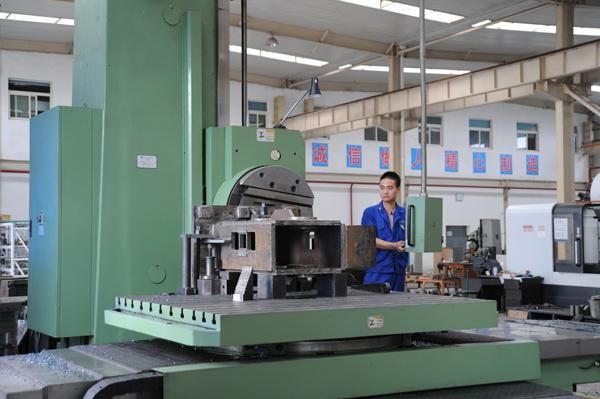

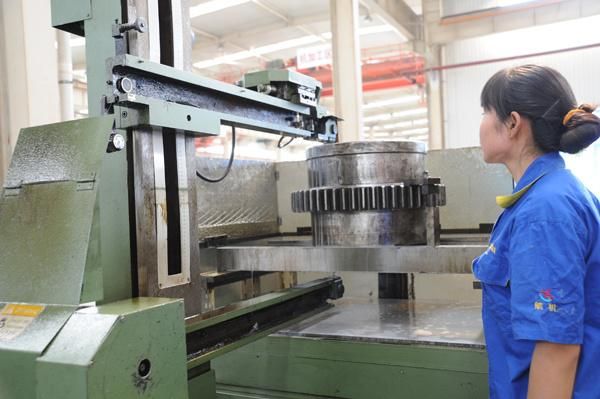

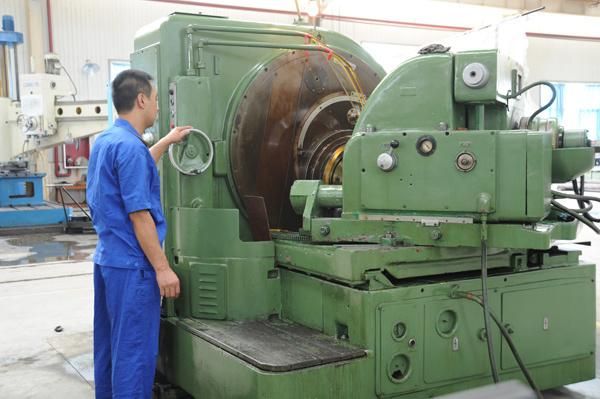

     With more than 20 years experience in metallurgical industry, The main business scope for the metallurgical machinery, high-speed gear box, hardened gear reducer. High-speed wire rod, bar, special steel rolling mill production line design, production, sales and installation; As well as for the aviation, steel, oil, electricity, coal mining machinery to provide intelligent re-manufacturing laser quenching, welding, cladding supporting processing, surface corrosion and wear-resistant alloy protective processor full set of technology development, services and applications. Crack detection of the equipment and spare parts, CMM measure and Gear detection. Products through the ISO9001 certification, the use of "Hangji" registered trademark of Shaanxi famous brand, with more than 10 patented technology, the establishment of a complete research and development, production and quality assurance system for high-tech enterprises.
