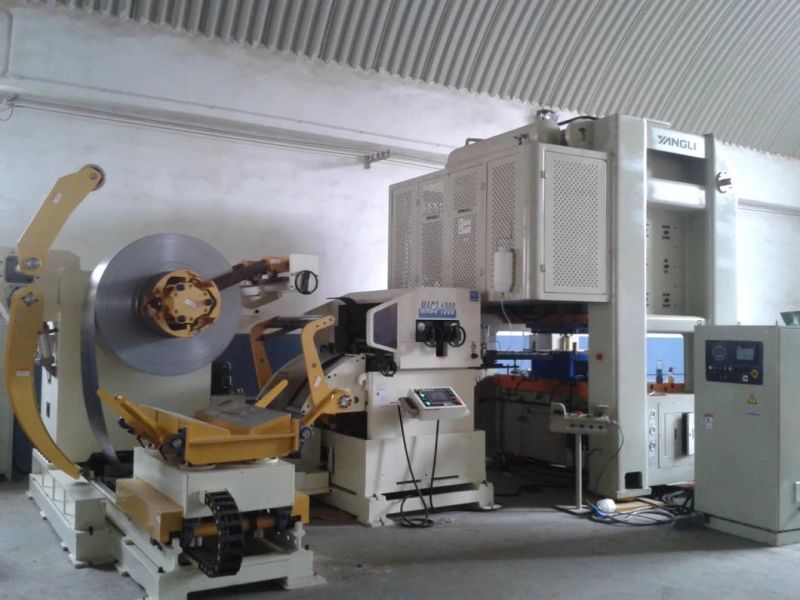

Coil Sheet Automatic Feeder with Straightener for Press Line (MAC3-1000)
GUANGDONG RUIHUI INTELLIGENT TECHNOLOGY CO., LTD.- Type：Straightener Feeder
- Usage：Coiled Material Straightening
- Voltage：380V
- Automatic Grade：Automatic
- Principle：Large Deformation
- Certification：TUV, ISO9001, CE
Base Info
- Model NO.：MAC3-1000
- Warranty：12 Months
- Customized：Customized
- Condition：New
- Stock Width(mm)：70-1000
- Stock Thickness(mm)：0.3-4.5
- Line Speed(M/Min)：16-24
- Coil Weight(Kg)：7000
- Transport Package：Wooden Box
- Specification：3100*2700*2300mm
- Trademark：RUIHUI
- Origin：China, Dongguan
- HS Code：8462299000
- Production Capacity：30 Sets Per Month
Description
MAC3-800 MAC3-1000 Stock Width(mm) 50-400 50-600 70-800 70-1000 Stock Thickness(mm) 0.5-4.5 0.5-4.5 0.5-4.5 0.5-4.5 Max.Coil Weight(kg) 5000 5000 5000 7000 7000 Max.Coil O.D.(mm) Φ1400 Φ1400 Φ1400 Φ1400 Coil I.D.(mm) Φ508 Φ508 Φ508 Φ508 Feed Length(mm) ~500* ~500* ~500* ~500* Max.Line Speed(m/min) 16-24 16-24 16-24 16-24 Work Roll Number(piece) up 4 / down 3 up 4 / down 3 up 4 / down 3 up 4 / down 3 Feed Roll number(set) 1 1 1 1 Main Motor AC4.4 AC4.4 AC5.5 AC7.5 Mandrel Expansion hydraulic hydraulic hydraulic hydraulic Reel Motor(kw) 2.2 2.2 2.2 3.7 3.7 Power(v) 3 Phase 220V/380V/50HZ Operating Air(Mpa) 0.49 0.49 0.49 0.49
Straigtening Performance:
ModelMAC3-400 MAC3-600 MAC3-800 MAC3-1000 Stock Thickness
(mm) 0.5~0.8 400 600 800 1000 1.0 750 1.2 700 600 1.6 590 480 430 1.8 500 420 380 2.0 430 370 330 2.3 360 320 290 2.8 370 290 250 230 3.2 300 250 220 200 4.5 160 160 150 110
Coil Sheet Automatic Feeder with Straightener for Press Line (MAC3-1000):
Guangdong Ruihui Intelligent Technology Co., Ltd. Was founded in January 2000. We have rich experience's research and development troop, Has the advanced processing equipment's production base, With perfect marketing service network. Since its establishment, we RuiHui machinery companies as a technology leader specializing in straightening press materials sent outside of the manufacturing and processing equipment. Has developed a number of feed production automationequipment, available to the area of each feed.
Press automation equipment we have in the broader field of application ofstamping the possibility has been explored with non-stop. in 2004 started us to study and to absorb many Taiwan well-known automation feeding equipment's technique of manufacture, Will make the base to expand 12000m², Has acquired the numerical control machining center, the computer lathe, the cylindrical grinder and so on advanced processing equipment, Has had the production high quality equipment's ability.
In order to make with the international brand competition ramming automatic equipment, we have been trying hard. 2007 In more than 20 years of accumulated experience and outstanding R & D design capability, under the guidance of Japanese technicians, we have advanced production technology to penetrate RuiHui our machines in each manufacturing process, In order to produce the equipment which the going abroad on a diplomatic mission customer most approves, we compiled in detail have analyzed 5730 feed control equipment the opinion which fed back in
more than 10 year actual operation, so that we can detail the needs of the customer,R & D differences in the production of unique and excellent quality to ensure the stability of the machine. Is ideal machine which the user hoped for, At the same time
ensure that our commitment RuiHui:
We more professional
We Faster
We Can For you easily complete the task
RuiHui we follow the "customer first, quality first" business philosophy, rooted in the local Chinese, have been successful in Southeast Asia, India, Turkey, Russia ...... etc. overseas clients with an ideal feeding automation equipment stamping.
RuiHui people every day committed to the development of more sophisticated feeding automation equipment. For customers to create value is our eternal pursuit
RuiHui people;Design, development, development international brand ramming automatic equipment Is our RuiHui responsibility......
