• Model NO.：ZYYX45-167-833
• Customized：Customized
• Advantage：Easy to Maintenance
• Condition：New
• Place of Origin：Zhejiang, China (Mainland)
• Machine Color：Made-to-Order
• Control System：Mitsubishi PLC & Converter
• Dlivery：About 50days
• Machine Weight：About 9t
• Roller Process：CNC; Plate with Hard Chrome
• Shafts：72mm Solid Steel
• Operate Languge：English or Customized
• Certificate：ISO, CE

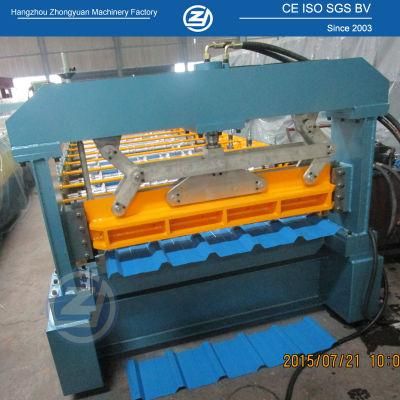

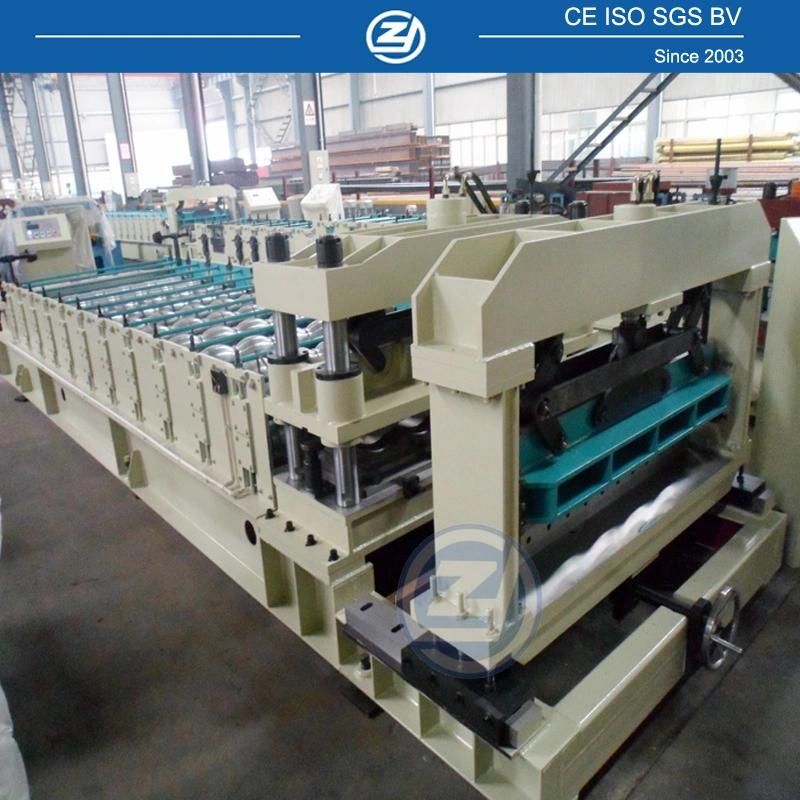

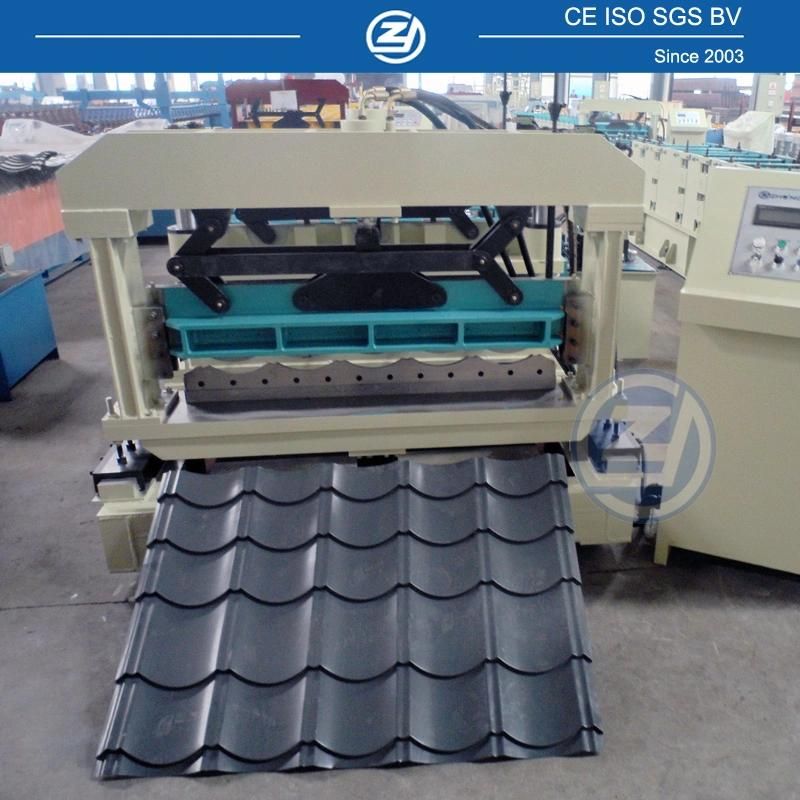

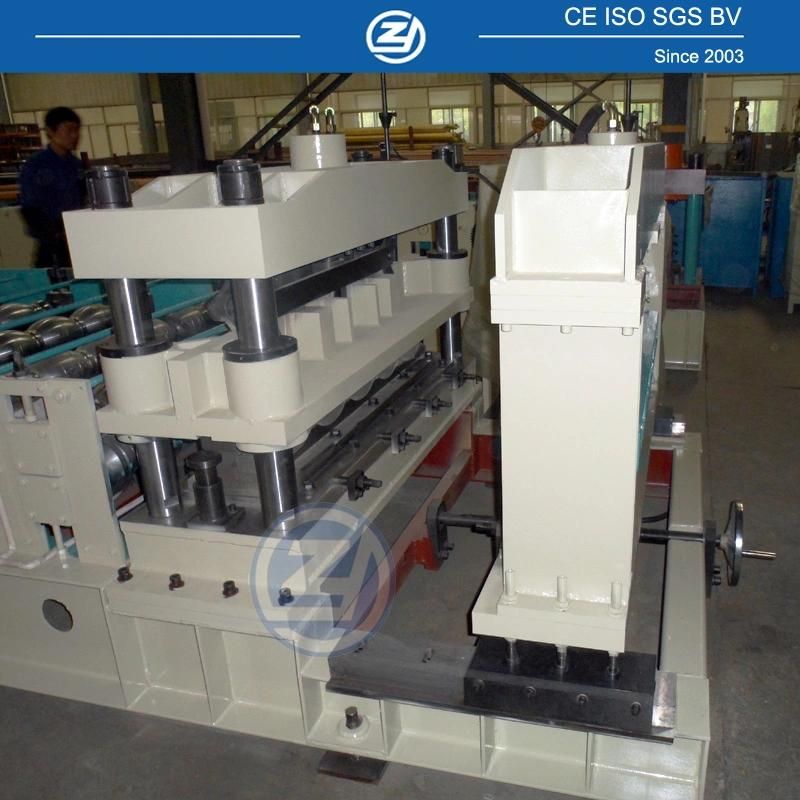

• Name：Roof Tile Cold Roll Forming Machine
• Transport Package：1X40gp for One Machine
• Specification：CE SGS BV
• Trademark：zhongyuan
• Origin：China
• HS Code：84552210
• Production Capacity：15stes,Month

ItemSpecificationMaterialTypeColor steel sheetThickness(mm)0. 5 -0. 6Yield strength(mpa)235 -345Roller material45#Chrome steelForming speed(m/min)About 1500-2000mm/min or 4-5m/min. For optionStep distanceAdjustable according to requirement (>=250mm)Speed adjusting modeAC FrequencyRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mold steel Length measurement EncoderControl mode Mitsubishi  PLCOperating modeButton +  Mitsubishi  Touch screenMain motor power(kw)5.5KW    (Depend on final design)Hydraulic station power 5.5K W   (Depend on final design)Total power(kw)11KWUncoiler's loading capacityMax. Capacity: 5000kgs
(can be increased to be 10T)Machine`s sizeAbout 14*1.7*1.4m  (Depend on final design)Machine weightAbout 9000kgs

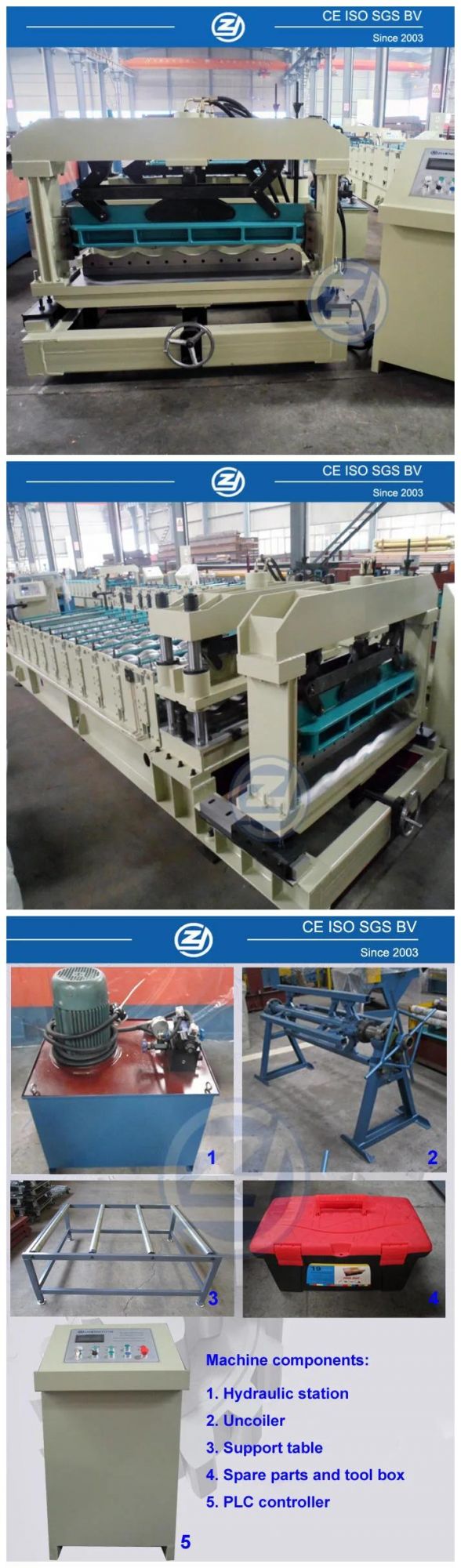

Components of machine:Decoiler1set   Feeding & guiding device1setMain roll forming machine1setPressing device1setHydraulic cutting system1setControlling system1setRun out table 1set
Process flow:
Decoiler -- Feeding & Guiding -- Roll Forming-- Pressing--Hydraulic Cutting - Product to Run Out Table





About us
1. Customize roll forming machines since 2003.
2. CE, ISO certificate by SGS.
3. Mitsubishi PLC controller and transducer from Japan
4.12moths warranty, lifetime technical support
5. Capacity: 12-15 sets/month
6. Delivery: In only 5-8 weeks for urgent order
7. Company occupies 6650, in which 5650 for workshops
8. Have our own tool center. 12 sets CNC machines.
9. Third party inspection: Bureau Veritas, SGS. Can provide assessment report.
10. Machine original brand: Zhongyuan
11. Set up business relationship with companies in more than 20 countries
