Coil Sheet Automatic Feeder with Straightener for Press Line
GUANGDONG RUIHUI INTELLIGENT TECHNOLOGY CO., LTD.- Type：Straightener Feeder
- Usage：Material Straightening
- Voltage：380V
- Automatic Grade：Automatic
- Principle：Large Deformation
- Certification：ISO9001, CE
Base Info
- Model NO.：MAC2-800
- Warranty：12 Months
- Customized：Customized
- Condition：New
- Stock Width(mm)：50-800
- Stock Thickness(mm)：0.3-3.2
- Line Speed(M/Min)：16-24
- Coil Weight(Kg)：3000-7000
- Transport Package：Wooden Box
- Specification：3700*3500*2500mm
- Trademark：RUIHUI
- Origin：China, Dongguan
- HS Code：8462299000
- Production Capacity：30 Sets Per Month
Description
MAC2-600 MAC2-800 Stock Width(mm) 50-400 50-600 50-800 Stock Thickness(mm) 0.3-3.2 0.3-3.2 0.3-3.2 Max.Coil Weight(kg) 3000 3000 5000 5000 7000 Max.Coil O.D.(mm) 1200 1200 1200 Coil I.D.(mm) 508 508 508 Feed Length(mm) ~500* ~500* ~500* Max. Line Speed(m/min) 16-24 16-24 16-24 Work Roll Number(pieces) upper 6/lower 5 upper 6/lower 5 upper 6/lower 5 Feed Roll Number(set) 1 1 1 Main Motor(kw) AC2.9 AC4.4 AC4.4 Mandrel Expansion hydraulic hydraulic hydraulic Reel Motor(kw) 1.5 1.5 2.2 2.2 3.7 Power(V) 3 Phase 220V/380V/50HZ Operating Air(Mpa) 0.49 0.49 0.49
Straigtening performance: Stock Width (mm)0.3 400 600 800 0.4 0.6 0.8 1.0 1.2 1.4 1.6 470 470 1.8 400 400 2.0 360 360 2.3 300 300 300 2.5 230 230 230 2.8 150 150 150 3.2 110 110 110
*1:(Pneumatic):Option in case of pneumatic mandrel expansion is provided,refer to coil weight.

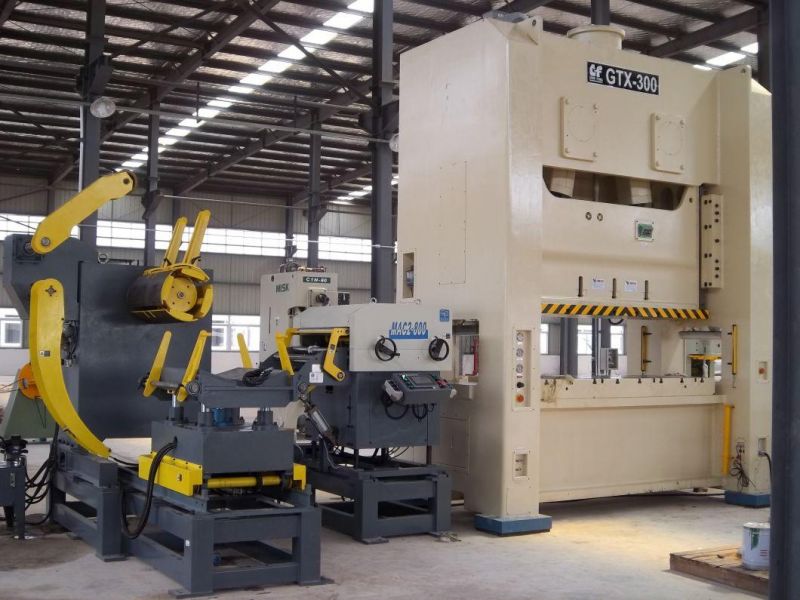

Coil Sheet Automatic Feeder with Straightener for Press Line (MAC2-800):
Guangdong Ruihui Intelligent Technology Co., Ltd. Was founded in January2000. We have rich experience's research and development troop, Has the advanced processing equipment's production base, With perfect marketing service network. Since its establishment, we RuiHui machinery companies as a technology leaderspecializing in straightening press materials sent outside of the manufacturing and processing equipment. Has developed a number of feed production automation equipment, available to the area of each feed.
Press automation equipment we have in the broader field of application ofstamping the possibility has been explored with non-stop. in 2004 started us to study and to absorb many Taiwan well-known automation feeding equipment's technique of manufacture, Will make the base to expand 12000m2, Has acquired the numerical control machining center, the computer lathe, the cylindrical grinder and so on advanced processing equipment, Has had the production high quality equipment's ability.
In order to make with the international brand competition ramming automatic equipment, we have been trying hard. 2007 In more than 20 years of accumulated experience and outstanding R & D design capability, under the guidance of Japanese technicians, we have advanced production technology to penetrate RuiHui our machines in each manufacturing process, In order to produce the equipment which the going abroad on a diplomatic mission customer most approves, we compiled in detail have analyzed 5730 feed control equipment the opinion which fed back in more than 10 year actual operation, so that we can detail the needs of the customer, R & D differences in the production of unique and excellent quality to ensure the stability of the machine. Is ideal machine which the user hoped for, At the same time ensure that our commitment RuiHui:
We more professional
We Faster
We Can For you easily complete the task
RuiHui we follow the "customer first, quality first" business philosophy, rooted in the local Chinese, have been successful in Southeast Asia, India, Turkey, Russia ...... etc. overseas clients with an ideal feeding automation equipment stamping.
RuiHui people every day committed to the development of more sophisticated feeding automation equipment. For customers to create value is our eternal pursuit
RuiHui people;Design, development, development international brand rammingautomatic equipment Is our RuiHui responsibility......
