Wall Insulated Panels Forming Machine Steel Sheet Cold Roll Forming Equipment Factory Price with ISO9001/Ce/SGS/Soncap
Hangzhou Zhongyuan Machinery Factory- Type:Rolling Machine
- Forging Forming Method:Cold Roll Forming
- Power Source:Electric
- Feature:Automation
- Certification:ISO9001, CE
- Warranty:12 Months
Base Info
- Model NO.:Steel Sheet Cold Roll Forming
- Customized:Customized
- Advantage:Use Widely
- Condition:New
- Certificate:CE
- Delivery Time:About 60days
- Size:About 12*1.6*1.5m
- Machines Weight:About 10 T
- Operation Language:English or as Per Client`S Required
- Cutter Material:Cr12 Mould Steel with Quench Treatment
- Cutting Style:Automatic Cut to Length
- Shafts for Rollers:Solid Steel
- Cotrol System:Mitsubishi PLC & Converter
- Name:ISO Steel Corrugated Cold Roll Forming Equipment
- Transport Package:40gp Container for One Machine
- Specification:CE SGS BV
- Trademark:zhongyuan
- Origin:China
- HS Code:8455221000
- Production Capacity:10sets,Month
Description
ItemSpecification

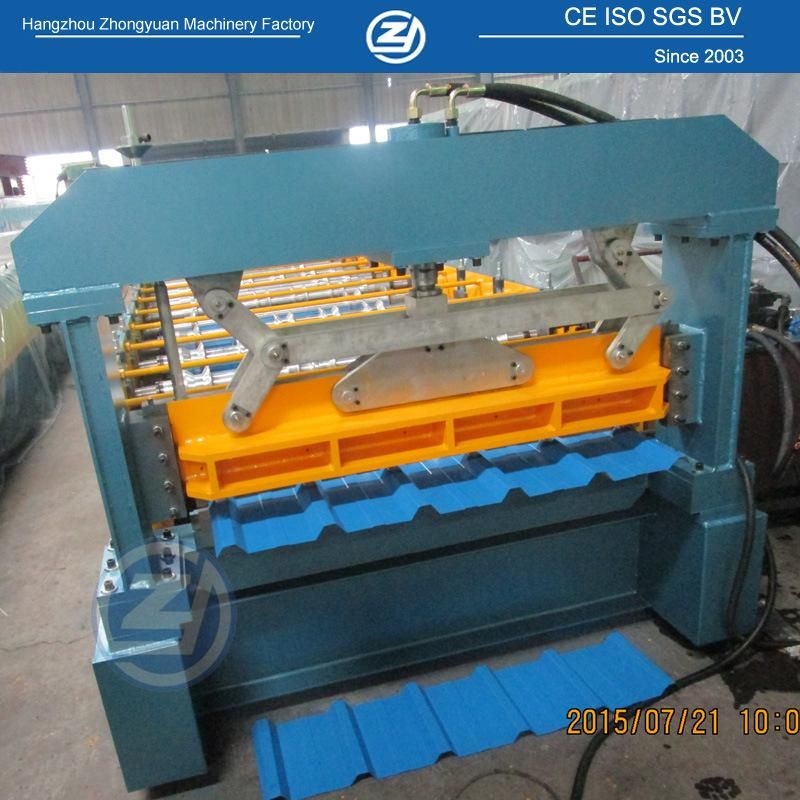

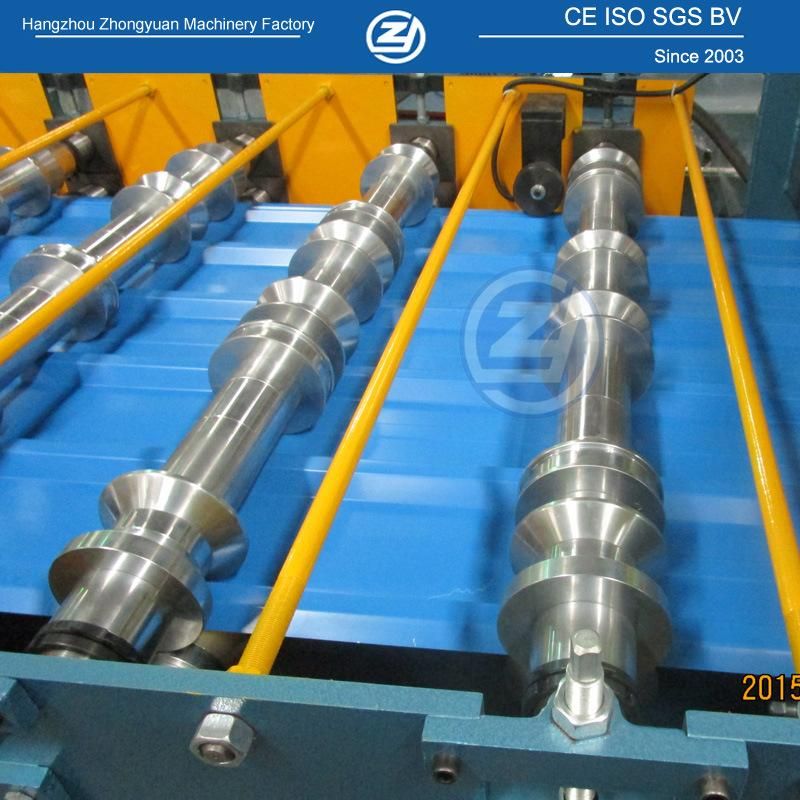

Raw Material Type Pre-painted steel coil & galvanized coils Thickness(mm) 0.3-0.7 Yield strength(mpa) 235-550 Roller material 45# steel , coated with Chrome Shaft for rollers Solid shaft with 72mm,processed with cylindrical grinder Forming speed(m/min) About 20-25 Output speed(m/min) About 12 for 6m length sheet Speed adjusting mode Mitsubishi frequency transformer Roller drive Decelerating motor + Chain drive Cutting mode Hydraulic cutting Cutter material Cr12 mould steel Length measurement Nemicon Encoder Control mode Mitsubishi PLC Operating mode Button + Mitsubishi Touch screen Main motor power(kw) 7.5KW Total power(kw) 9.9 KW

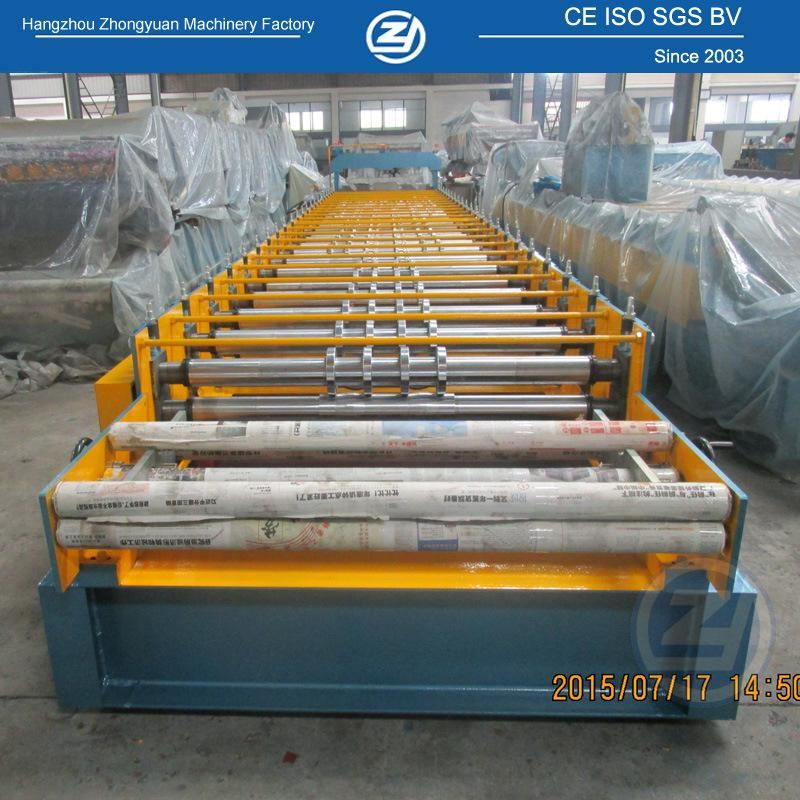

Feeding & guiding device1set Main roll forming machine 1set Hydraulic cutting system 1set Controlling system 1set Run out table (auto. Stacker for option) 1set
Process flow
Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting - product to run out table
Packing:
1. One 40feet container for loading one set machine with mechanical decoiler.
2. Main machine body and decoiler is load naked (tighten to container with steel wire rope).
3. Spare parts and operating tools are loading in tooling box.
Delivery : about 50 days after received advaced payment
We customize your machines! To customize machine, we would love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
Have no idea about them?
We will be glad to recommend the lacol popular profile for you----Just let us know your country!
Why us?
1. Customize roll forming machines since 2003.
2. Capacity: 12-15 sets/month
3. Delivery: in only 5-8 weeks for urgent order
4. Company occupies 6650, in which 5650 for workshops
5. Have our own tool center. 12 sets CNC machines.
6. Technician can be sent to your factory to install the machine and train your workers
FAQ:
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome your visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).
