• Model NO.：OURS-F
• Power：50kw-200kw
• Warranty：1 Year
• Size：as Per The Client
• Transport Package：Standard Container
• Specification：CE, SGS, ISO
• Trademark：jsours
• Origin：China(Mainland)
• HS Code：8424300000
• Production Capacity：6-7 Sets,Year

Basic Info.

Model NO. OURS-F Power 50kw-200kw Warranty 1 Year Size as Per The Client Transport Package Standard Container Specification CE, SGS, ISO Trademark jsours Origin China(Mainland) HS Code 8424300000 Production Capacity 6-7 Sets/Year

Product Description

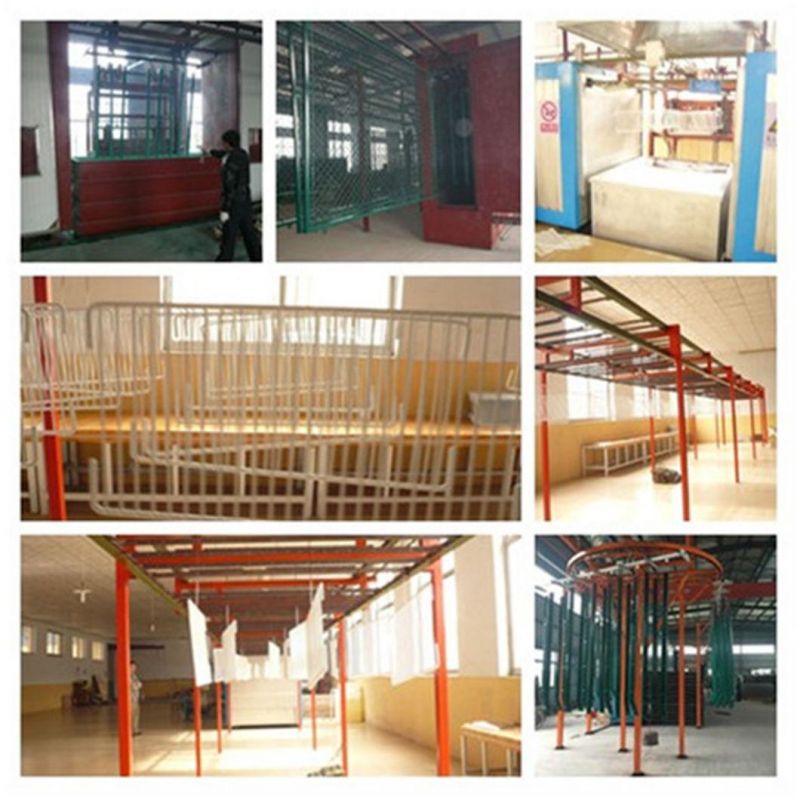

Fence plastic/ powder dipping line
Product description:
1. Operation under normal temperature
2. Simple structure with high performance
3. Highly efficient process automation
 Operating principle: The powder on the body of fluidized bed is set of electrode connected with high voltage and negative electrode of high-voltage electrostatic generator. When the electrode connects with a certain amount of negative voltage, it will produce corona discharge. And the fluidized powder near the electrode will catch the electron to be the powder particles with negative charge which will be adsorbed on the surface of the workpiece with positive charge, afterwards those powder particles will be heated and solidified to be the uniform coating. Main parts of the full line:
1.Pretreatment device
2.Powder coating gun
3.Electrostatic control equipment
4.Powder supplying system
5.Recovery system
6.Powder coating booth
7.Auxiliary systems


No.	Item	Description
1	Voltage	60-90 KV
2	Power	10-20μA
3	Velocity pressure	0.30-0.55 MPa
4	Atomizing pressure	0.30-0.45 MPa
5	Pressure for cleaning the gun	0.5MPa
6	Fluidization pressure of powder-supplying barrel	0.04-0.10 MPa
7	Space between the spraying mouth and the workpiece	150-330mm
8	Speed of conveying chain	4.5-5.5m/min
