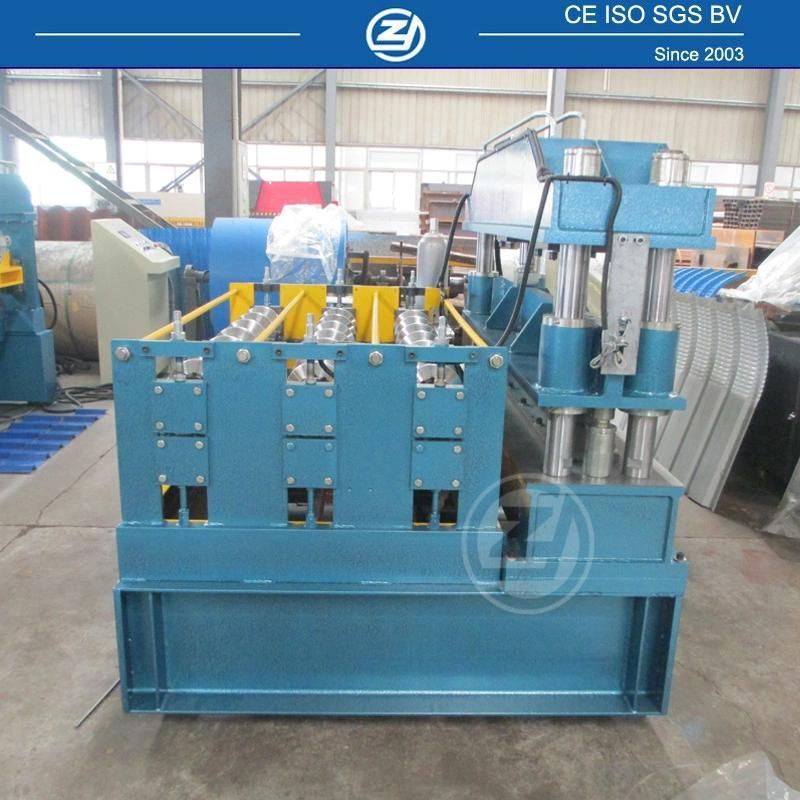

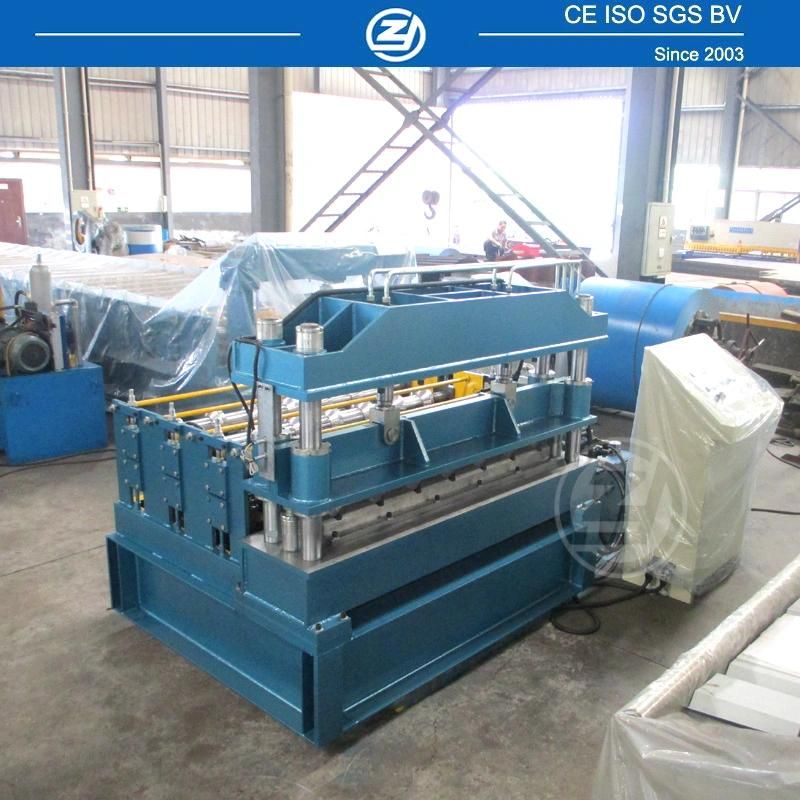

Roofing Sheet Roof Panel Curving Crimping Machine
Hangzhou Zhongyuan Machinery Factory- Type:Mechanical Press
- Forging Forming Method:Crimping
- Power Source:Electric
- Feature:Automation
- Certification:ISO9001, CE
- Warranty:12 Months
Base Info
- Model NO.:ZYYX Series
- Customized:Customized
- Advantage:Work Flexible
- Condition:New
- Name:Roof Panel Curving Crimping Machine
- Yield Strength:235-350MPa
- Main Motor Power:2.2kw
- Machine Weight:About 2t
- Operation Language:English or as Per Client`S Required
- Leveling Rollers:No.45 Forged Steel with Hard Chrome
- Shafts for Rollers:72mm Diameter Solid Steel
- Certificate:Ce, ISO
- Guarantee Time:First Year Free, Lifetime Services
- Transport Package:1*20gp
- Specification:CE SGS BV ISO
- Trademark:zhongyuan
- Origin:China
- HS Code:84552210
- Production Capacity:10sets,Month
Description
ItemSpecification Mterial Thickness (mm) 0.4-0.6 Yield strength (mpa) 235-350 Roller material Cr12 mould steel. Speed adjusting mode AC Frequency Control mode Mitsubishi PLC Main motor power (kw) 5.5 kw (Depend on final design) Hydraulic station power 2.2 kw (Depend on final design) Total power (kw) 7.7 kw Machine`s size About 1.4*1.73*1.6M (Depend on final design) Crimping length Min. 25 mm Crimping times About 10times /minute Feeding Table About 1500mm Bending By hydraulic
Machine's Overview:
About us
1. Customize roll forming machines since 2003.
2. Capacity: 12-15 sets/month
3. Delivery: in only 5-8 weeks for urgent order
4. Company occupies 6650, in which 5650 for workshops
5. Have our own tool center. 12 sets CNC machines.
6. Technician can be sent to your factory to install the machine and train your workers
7. Zhongyuan is a "All-in-house source"
--from raw material to the final high-precision forming machine. We have our precise tooling center.
