• Model NO.：Deck Forming Machine
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Operation Language：English or as Per Client`S Required
• Cutter Material：Cr12 Mould Steel Being Quenched Treatment
• Cutting Style：Cut to Length
• Controlling System：Mitsubishi PLC & Converter
• Guarantee Time：First Year Free, Lifetime Services
• Quality System：ISO9001
• Machine Size：About 16*1.8*1.6m
• Machine Weight：About 16tons
• Rollers Material：No.45 Forged Steel, Plated with Hard Chrom
• Certificate：CE
• Transport Package：1*40gp +1820gp Containers for One Machine
• Specification：CE SGS BV
• Trademark：zhongyuan
• Origin：China
• HS Code：84552210
• Production Capacity：5sets,Month

ItermSpecificationMaterialTypeColor steel sheet or galvanized steel sheetThickness(mm)0. 8 -1.2Yield strength(mpa)235 -345Roller material45#Chrome steelForming speed(m/min)About 15m/min Speed adjusting modeAC FrequencyRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mold steel, quenched treatmentLength measurementEncoderControl modeMitsubishi  PLCOperating modeButton + Mitsubishi Touch screenMain motor power(kw)18.5KW   (Depend on final design)Hydraulic station power 5.5K W   (Depend on final design)Total power(kw)24KWUncoiler's loading capacityMax. Capacity: 5000kgs (can be increased to be 10T)Machine`s sizeAbout 16*1.8*1.6m  (Depend on final design)Machine weightAbout 16000kgs

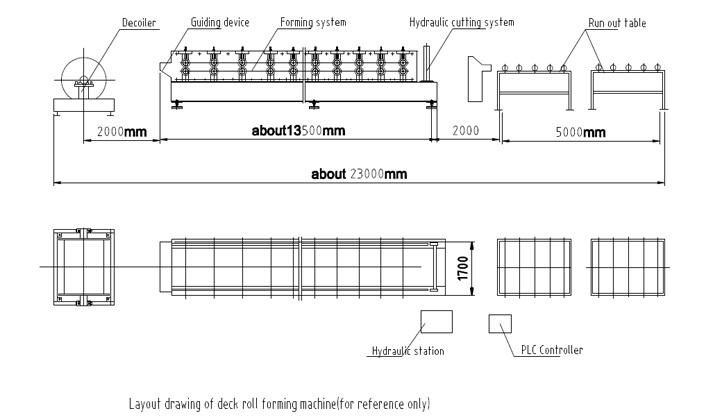

 Machine componentsDecoiler1set   Feeding & guiding device1setPressing system1setMain roll forming machine1setCutting device1setHydraulic cutting system1setPLC Controlling system1setRun out table 1set   Process flow:
Decoiler -- Feeding & Guiding -- Pressing--Roll Forming--Hydraulic Cutting - Product to Run Out Table



Packing:
1. 40GP*1+20GP*1 containers for loading one set machine with mechanical decoiler.
2. Main machine body and decoiler is load naked (tighten to container with steel wire rope).
3. Spare parts and operating tools are loading in tooling box.

Delivery : about 70 days

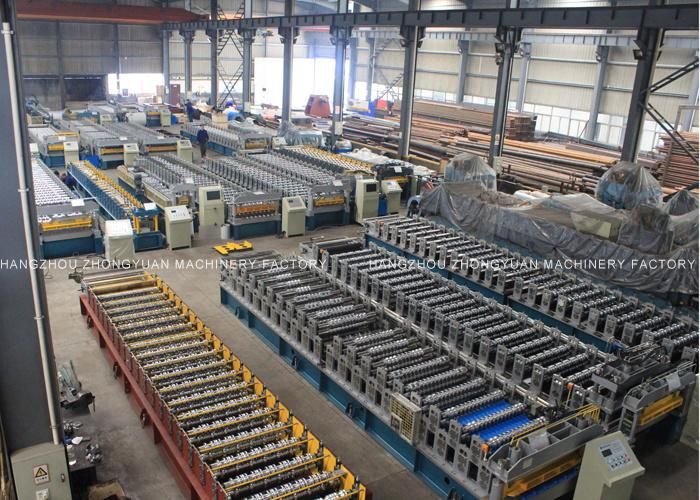

About us
1.  Customize roll forming machines since 2003.
2.  Capacity: 12-15 sets/month
3.  Delivery: in only 5-8 weeks for urgent order
4.  Company occupies 6650, in which 5650 for workshops
5.  Have our own tool center. 12 sets CNC machines.
6. Technician can be sent to your factory to install the machine and train your workers
7. Zhongyuan is a "All-in-house source"
   --from raw material to the final high-precision forming machine. We have our precise tooling center.
