Corrugated Steel Roof Sheet Making Machine|Roof Panel Roll Forming Machine

Xiamen Xinhonghua Machinery Co., Ltd.

Usage：Roof
Method：Hydraulic Pressure
Hydraulic Motor Power：2.2kw
Automation：Automatic
Processing：Corrugated Roofing
Type：Cold Forming Sectional Steel

Base Info

Model NO.：YX18-782
Forming：Cold Drawn Steel
Connection Form：Bolt Connection
Type of Steel for Building Structure：High-Strength Steel
Residential Wall Structure：Wall Support
Transport Package：Export Standard Packing
Specification：6000*1500*1500mm
Trademark：Low-alloy High-tensile Structural Steel, XHH
Origin：Xiamen of China
HS Code：8455229090
Production Capacity：10-15 Sets,Month

Description

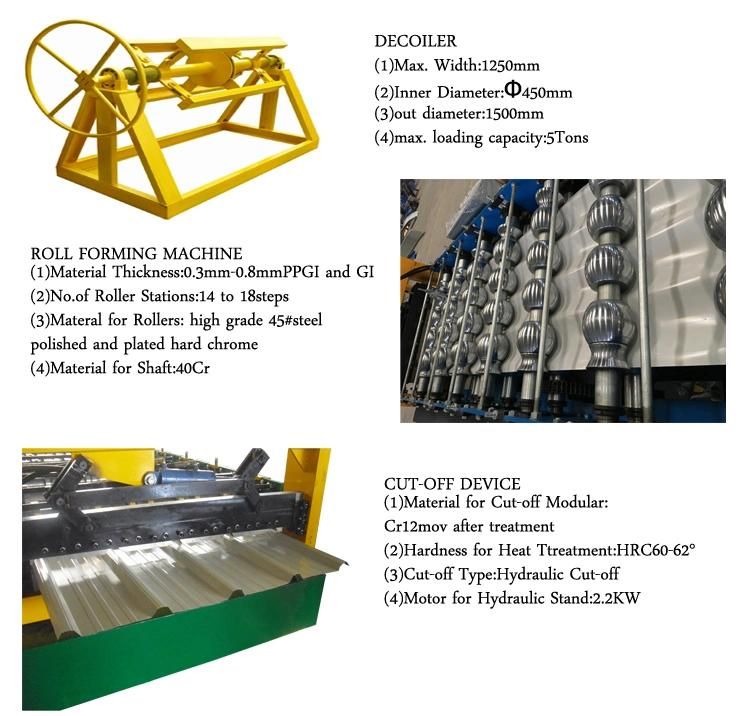

Size6000*1500*1500mmWeight4500KGSHydraulic Motor Power2.2KWMotor Power5.5KWForming Steps16stepsWorking Speed8-12m/minVoltage415V/50HZ/3PHHeight of Roofing18mmEffective Width762mmMaterial Width914mmThickness0.3-0.6mm; ( material: stainless steel 439)Material of principal axishigh grade 45# forged steelMaterial of roller45#steel with hard chrome platingMaterial of bladeCr12 mould steel with quenched treatment 60-62°CMaterial for frame of machineFine welded structural steel2.Main Accessories1Main Forming Machine for corrugate roofing;25 Tons Manual Uncoiler;3Manual Pre-cutter;4Hydraulic System;5PLC Computer Controlling System With Touch Screen
(Brand:Delta or Schneider,or Siemens,choose any one)6Hydraulic Forming Cutter;7Run Out Table(3 PCS);8Tools;9Operation Manual.
Corrugated Steel Roof Sheet Making Machine|Roof Panel Roll Forming Machine

Corrugated Steel Roof Sheet Making Machine|Roof Panel Roll Forming Machine

Corrugated Steel Roof Sheet Making Machine|Roof Panel Roll Forming Machine

Corrugated Steel Roof Sheet Making Machine|Roof Panel Roll Forming Machine

Corrugated Steel Roof Sheet Making Machine|Roof Panel Roll Forming Machine

Corrugated Steel Roof Sheet Making Machine|Roof Panel Roll Forming Machine

Corrugated Steel Roof Sheet Making Machine|Roof Panel Roll Forming Machine

Corrugated Steel Roof Sheet Making Machine|Roof Panel Roll Forming Machine

Corrugated Steel Roof Sheet Making Machine|Roof Panel Roll Forming Machine

Corrugated Steel Roof Sheet Making Machine|Roof Panel Roll Forming Machine

Corrugated Steel Roof Sheet Making Machine|Roof Panel Roll Forming Machine

Corrugated Steel Roof Sheet Making Machine|Roof Panel Roll Forming Machine
