• Model NO.：COLO-3212
• Inner Size：620W X 1500 H X 2920 D (2PCS)
• Overall Size：1200W X 2033 H X 3000 D
• Filters Count：3 Powder Recovery Filters
• Filter Filtration Precision：5 Um
• Nominal Power：3.5kw
• Transport Package：as Export Standard
• Specification：Pass Through Powder Booth
• Trademark：COLO
• Origin：China
• Production Capacity：300sets,Month

Basic Info.

Model NO. COLO-3212 Inner Size 620W X 1500 H X 2920 D (2PCS) Overall Size 1200W X 2033 H X 3000 D Filters Count 3 Powder Recovery Filters Filter Filtration Precision 5 Um Nominal Power 3.5kw Transport Package as Export Standard Specification Pass Through Powder Booth Trademark COLO Origin China Production Capacity 300sets/Month

Product Description

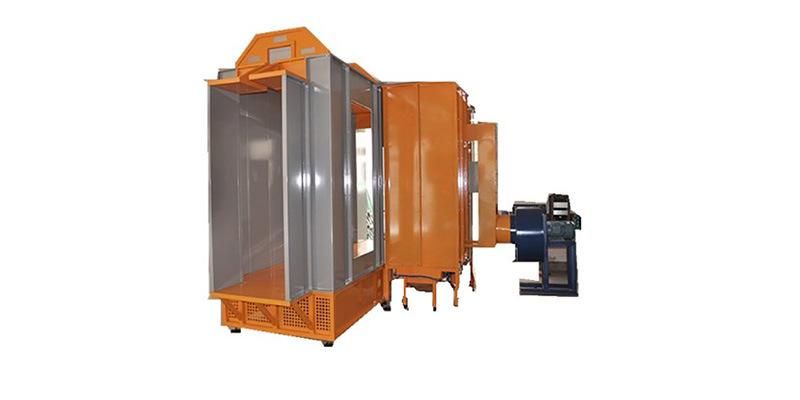

Pass Through Powder Coating Spray Booth
Brief Introduction

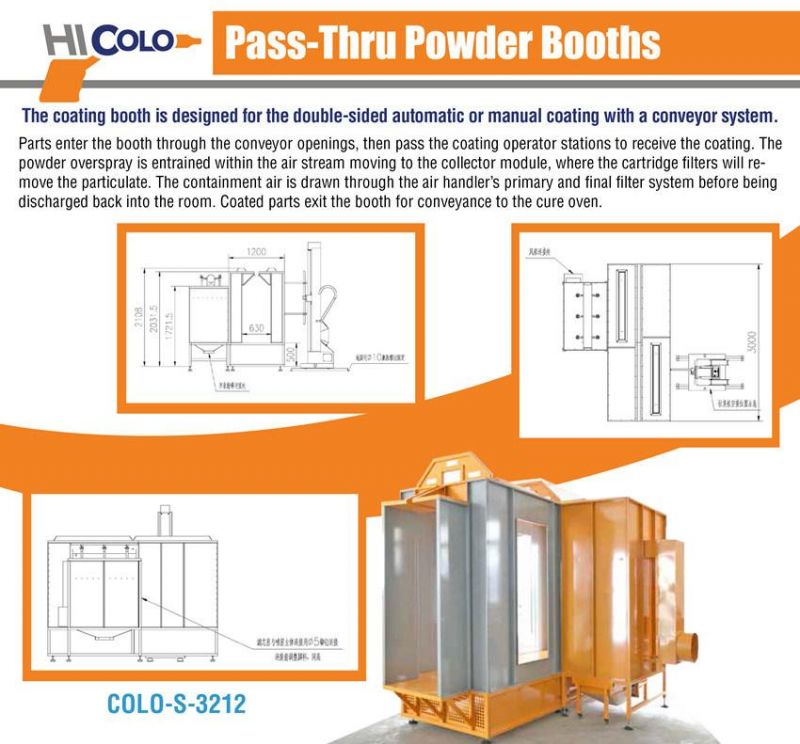

COLO-3212 is designed for pass through type powder coating.Parts enter the booth through the conveyor system openings,then pass the coating operator stations to receives the coating.The powder overspray is entrained within the air stream moving to the collector module,where the cartridge filters will remove the particulate.The containment air is drawn throught the air handler's primary and final filter system before being discharged back into the room.Coated parts exit the booth for conveyance to the cure onen.

Two door painting powder coating booth Features

1. Parts are pass thru the spray booth,hang on the conveyor system
2. have two powder coating door gate for staff to do coating jobs

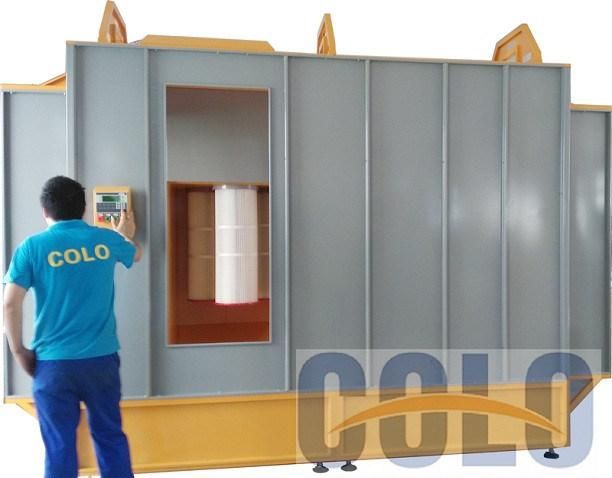

3. filter cartidges ,polyester material,detachable
4.Booth material adopt good quality galvanized steel ,SPCC
5.Durable ,moveable

Specifications

Model	COLO-3212
Inner size	620width x 1500 height x 2920 depth (2PCS)
Overall size	1200width x 2033 height x 3000 depth
Booth Type	Pass-through
Certificate	CE
Power supply	Electric
Application	Powder coating recycle
Voltage	380V
Frequency	50-60Hz
Filters	Polyester
Filters count	4
Filters hang type	easy for change
Filter cleaning system	Pneumatic
Warranty	12 months

The main structure is dominated by dusting the powder room, filters,

 recovery systems, cleaning systems, lighting, fans, control component

systems, compressed air piping

 and other components.

Technical Parameters
Construction: The booth walls and roof are made of galvanized steel.The booth utilizes a single panel design.
Lighting: Integrated lllumination.The spray enclosure includes roof-mounted light fixtures,These fixtures are mounted on special panels that include factory-provided reinforcement.
Exhaust system: The booth uses either one or two floor mounted exhaust units. The exhaust unit is constructed of primarily galvanized steel.
Control Panel: The booth is operated via PLC control panel. The control panel allows the operator to stop and start the exhaust fan and turn the lights on and off,and also can control the oven at the same time.

If you are interested in our product,please feel free to send me enquiry for further informations.
