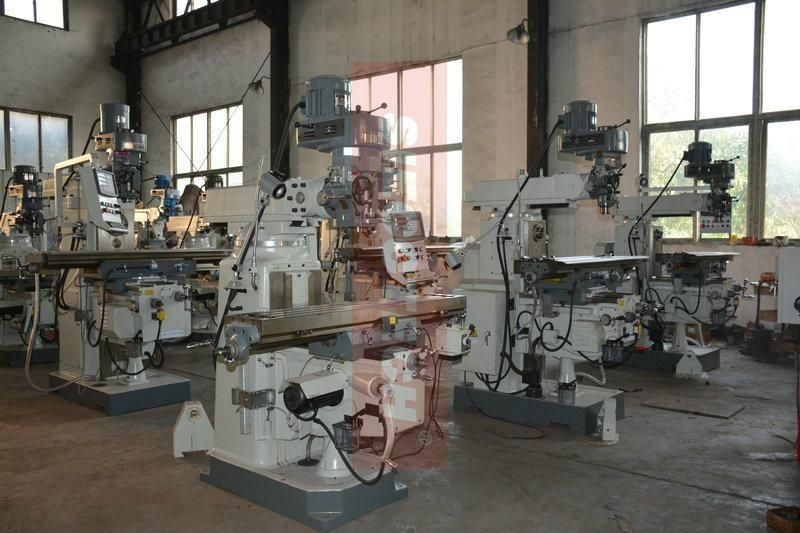

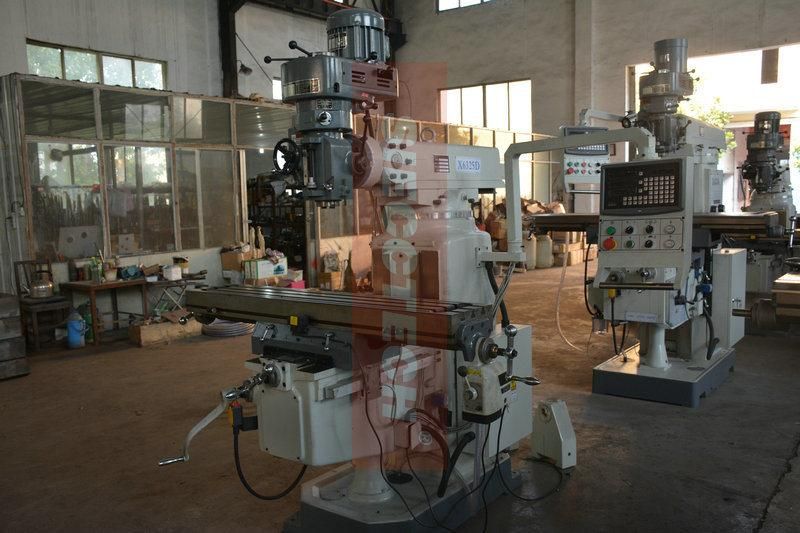

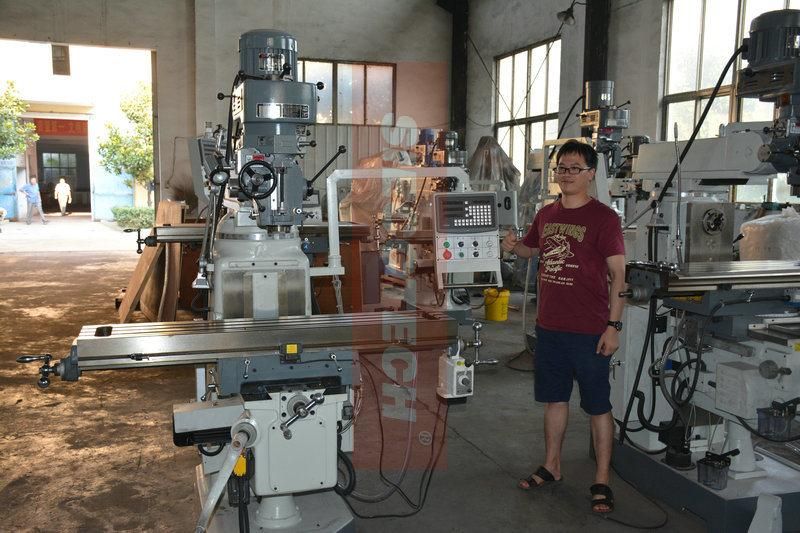

• Model NO.：X5036 Vertical Knee type Milling Machine
• Production Capacity：300 Sets,Mnth

ItemX5036A/X5136AX5036B/X5036GSpindle taperISO50ISO50Distance from spindle to table60-540mm60-540mmSpindle speeds(12 step)60-1700 r.p.m(12step)60-1700 r.p.mTable size1250x360mm1250x360mmTable travel(Horizontal/Cross/Vertical)600/320/450mm1000/320/450mmFeeding range of longitudinal.cross travel 22-550mm/min(8 step)22-550mm/min(8 step)X,Y axis rapid feed speed1080mm/min1080mm/minZ axis rapid feed speed590mm/min590mm/minZ axis motor power1100W1100WMax weight of workpiece400kg400kgT-slot number/width/distance3/18mm/80mm3/18mm/80mmMilling head moving(Vertical)Dovetail axisRectangular axisCross slide wayRectangular axisRectangular axisLongiudinal slide wayDovetail axisDovetail axisHorse power for main motor4kw4kwCoolant pump power90W(25L)90W(25L)X,Y axis driving motor 750W750WOverall dimension1900x1850x1800mm2500x1850x1880mmPacking size1800x1900x2250mm1800x1900x2250mm 2300x1900x2250mm2300x1900x2250mmN.W/G.W2100/2200kg(4200/4300kg)2200/223kg(4400/4600kg)
