• Model NO.：Colo-2315
• Transport Package：as Export Standard
• Specification：Closed powder booth
• Trademark：COLO
• Origin：China
• Production Capacity：300sets,Month

Basic Info.

Model NO. Colo-2315 Transport Package as Export Standard Specification Closed powder booth Trademark COLO Origin China Production Capacity 300sets/Month

Product Description

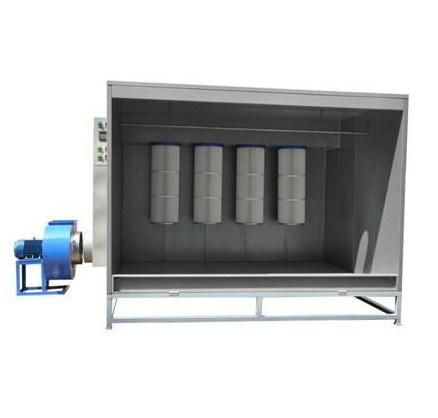

Powder Spray Booth for Metal Coating

Brief Introduction
The powder booth is one of the most critical components of the product finishing process.
Colo-2315 Manual powder spray booth, Large coating opening, optimal utilisation of the size of the object.
Smooth interior, easy to clean, Simple operation.
The main structure is dominated by dusting the powder room, filters,recovery systems, cleaning systems, lighting, fans, control component systems, compressed air piping and other components.
 Excellent Features
1. Simple and economic solution for metal powder coating application in small production2. Compact Modular design, easy to intergrated every time.3. Maximum utilization of powder,98% high levels of powder recovery4. Convenient to use with manual powder coating machine and curing oven.5.The filter recovery system prevents accumulation of the powder and makes it very easy for cleaning and fast  color change.

Specifications

Model	Colo-2315
Power Supply	AC 380V (can be customized)
Frequency	50-60 HZ
Power Consumption	4KW
Air Comsumption	6677-13353m3/h
Filters	Polyester
Filter Count	4(325*900mm)
Filter Cleaning System	pneumatic
Machine Weight	450kg
Operation Szie	Width2300*Depth1500*Height1500mm
Overall Size	Width2750*Depth2070*Height2180mm

Technical Parameters
Construction: The booth walls and roof are made of galvanized steel.The booth utilizes a single panel design.
Lighting: Integrated lllumination.The spray enclosure includes roof-mounted light fixtures,These fixtures are mounted on special panels that include factory-provided reinforcement.
Exhaust system: The booth uses either one or two floor mounted exhaust units. The exhaust unit is constructed of primarily galvanized steel.
Control Panel: The booth is operated via PLC control panel. The control panel allows the operator to stop and start the exhaust fan and turn the lights on and off,and also can control the oven at the same time.


Delivery
We deliver a complete set of powder spray booth,the fan motor and filters will be disassemble to avoice they might damage during transport,but do not worry,they are easy and simple to assemble.

If you are interested in our product,please feel free to send me enquiry for further informations.
