• Model NO.：LGT750-24-S
• Maximum Coating Speed：15m,Min
• Machine Speed：0~18m,Min
• Length Error：<=+-1.5%
• Single Thickness Accuracy：+-1.5um
• Transport Package：Standard Exportting Packing
• Trademark：GMK
• Origin：China
• HS Code：8479899990
• Production Capacity：3unit,Month

Basic Info.

Model NO. LGT750-24-S Maximum Coating Speed 15m/Min Machine Speed 0~18m/Min Length Error <=+-1.5% Single Thickness Accuracy +-1.5um Transport Package Standard Exportting Packing Trademark GMK Origin China HS Code 8479899990 Production Capacity 3unit/Month

Product Description

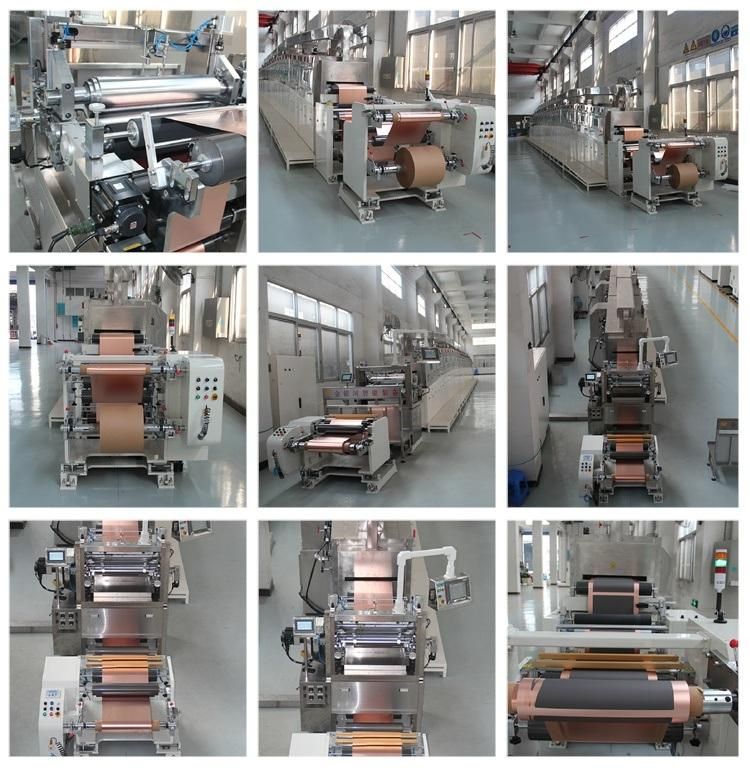

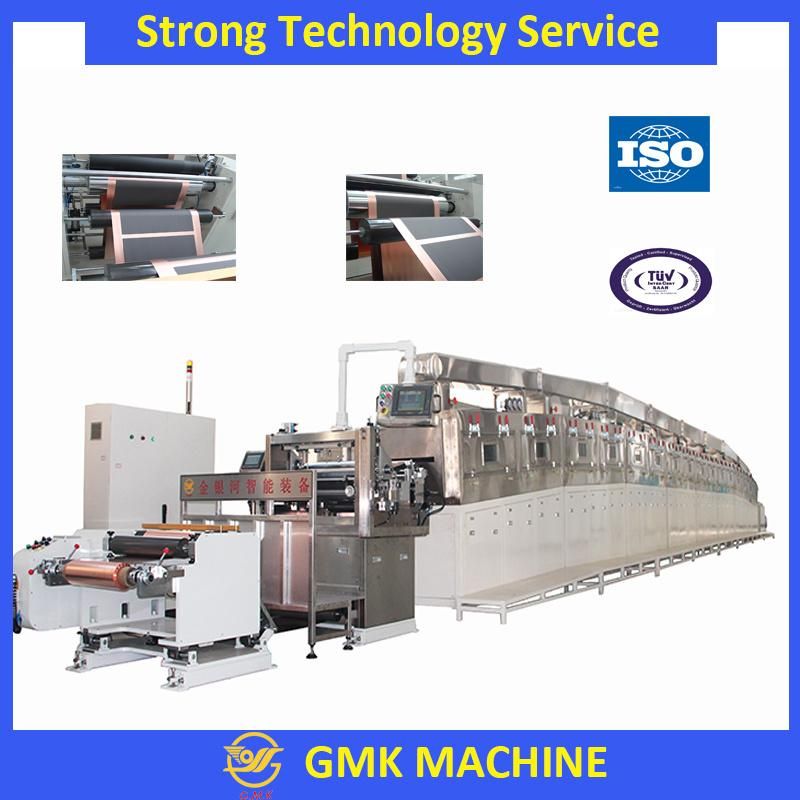

Lithium Battery Vertical Type Single (double) Surface Coater
Feature and advantage:

1.Coating method: Transfer coating (to achieve continuous, intermittent, tracking);
2.The coater head support base: the overall vertical plate is the high-rigidity wall type design;
3.The double rolling and unreeling: efficient large-scale production;
4.The coater drive: servo motor drive the back roll moving;
5.The scraper adjustment: servo motor regulation, ultra precision grating sensor closed-loop control, scraper linear degree is adjustable;
6.The oven: upper and lower circulation blower, anterior main drive oven, posterior floating type oven;
7.The appearance: all stainless steel outside and cladding treatment, neat and easy to clean ;
8.The comma knife, coater roller special materials is ultra precision machining;
9.The wall is made of high quality steel and is processed by CNC;
10.All the base eliminate stress.

Technical parameter:

Type Item	LGT600-18/24	LGT750-18/24	LGT750-24-S
Coating width	Max:500mm	Max:650mm	Max:650mm
Maximum coating speed	15m/min	15m/min	15m/min
Machine speed	0~18m/min	0~18m/min	0~18m/min
Single thickness accuracy	±1.5µm	±1.5µm	±1.5µm
The areal density the error	≤ ±1.5%	≤ ±1.5%	≤ ±1.5%
Minimum gap	5mm Related to the characteristics of the coating speed	5mm Related to the characteristics of the coating speed	5mm Related to the characteristics of the coating speed
Positive and negative coated overlay error	±0.5mm	±0.5mm	±0.5mm
10mm thickness error within the coater head and tail	-10µm~ +5µm(single surface)	-10µm~ +5µm(single surface)	-10µm~ +5µm(single surface)
Length error	±0.5mm	±0.5mm	±0.5mm
Orderly winding error	±0.5mm	±0.5mm	±0.5mm
Retractable roll diameter	Max:φ550mm	Max:φ550mm	Max:φ550mm
Retractable roller diameter	2µm/m	2µm/m	2µm/m
Coater roller straightness	φ160mm Circular Run ≤ 1.5µm	φ160mm Circular Run ≤ 1.5µm	φ160mm Circular Run ≤ 1.5µm
Air pressure	Over 0.5Mpa	Over 0.5Mpa	Over 0.5Mpa
Power	120Kw/160Kw	120Kw/160Kw	200Kw
Machine Dimensions(LxWxH)	25mx2.5mx2.7m (drying box 18m) 31mx2.5mx2.7m (drying box 24m)	25mx2.5mx2.8m(drying box 18m) 31mx3.5mx3.6m(drying box 24m)	35mx3.5mx3.6m(drying box 24m)

GMK can be customized according to customer demand for non-standard equipment
If you are not certain of which type to choose, please contact us and our professional sales engineers will recommend for you.


Technology innovation service:
We keep on technology innovation to meet the customers' demand and can provide technology improvement program.
If you are planning to research and manufacture Li-ion battery, contact us, we provide one stop solution for you.
