• Model NO.：300
• Splint Thickness：17mm
• Color of Machine：Blue or as Your Request
• Driving of Machine：Chain Driving
• Sizes of Chain：1 Inch
• Transport Package：Covered with Plastic Films
• Specification：ISO9001
• Trademark：ZD OR OEM
• Origin：China
• HS Code：84552210
• Production Capacity：30sets,Month

Basic Info.

Model NO. 300 Splint Thickness 17mm Color of Machine Blue or as Your Request Driving of Machine Chain Driving Sizes of Chain 1 Inch Transport Package Covered with Plastic Films Specification ISO9001 Trademark ZD OR OEM Origin China HS Code 84552210 Production Capacity 30sets/Month

Product Description

half round gutter roll forming machine

1. Round downpipe specification



1. Material:hot dipped galvanized coil,galvalume steel
2. Thickness of material:0.3-0.6mm
3. Yield strength:235-300mpa

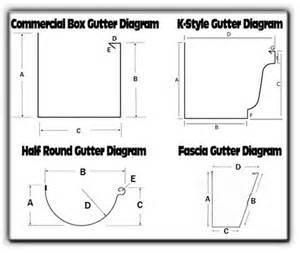

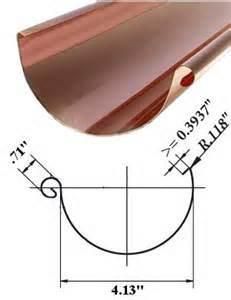

4. Sizes of gutter:



1. Main components:



No.	Name	Unit	Qty
1	Manual  de-coiler	SET SET	1
2	Feeder	SET	1
3	PLC control system	SET	1
4	Hydraulic Guillotine	SET	1
5	Elbow bending machine	SET	1
6	Receiving table	SET	1


3. Flow Chart of roll forming machine:

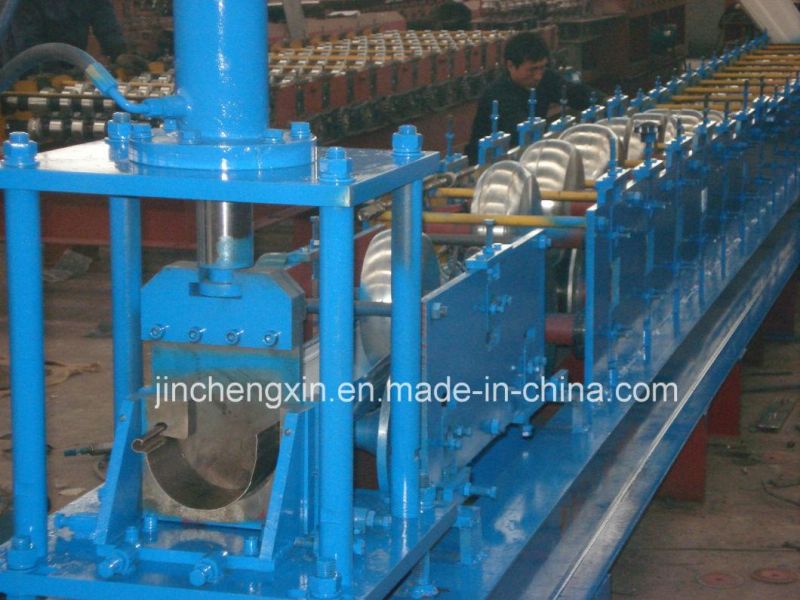

1. Photos of Machine:



5.Technology parameters:
The weight of machine is about 9.2tons
The total dimension of machine:8700(L)*600(W)*1200mm(H)
5.1  Single head Manual uncoiler: 1SET
     lCapacity of uncoiler:2-3tons
     lExpansion of segment:manual
 lRotation of segment:manual
 lNumber of segment:4
    lRange of segment expansion:480-520mm
    lMaximum width of coil300mm
    lOperation method:Manual
5.2 Feeding&levelling:
 lEntrance and adjustable wheel: 2rolls
 lQty: 1
5.3Main forming machine:
     Coil thickness:0.3-0.6mm
 Main motor type: 3 phase asynchronous motor
 Main motor power:5.5KW
 Forming speed: 0-11m/min
 Approx. 16 groups rollers
 Roller : SC45, with heat treatment and hard chrome coating.
 Shaft:  Shafts  of rollers are tooled by grinding machine for two times to ensure the precision of final product. Diameter of main shaft: ø60mm
lMachine base frame adopt 350I beam welding steel With leveling bolts in the base to adjust the  leveling
 l  Transmission type: by 1 inch chain
 Qty: 1


5.4 Saw cutting:
         lPower of cutting:4kw
5.5Product support frame
l      lSize: L 3m x W 0.5m
l      lQty: 1

5.6PLC Control System
Control the quantity &punching length& cutting length automatically
 The Machine will be stopped while it is cutting
Automatic Length  measurement and quantity counting (precision 3m+/-2mm)
 Voltage:38V, 3 Phase,50Hz (As per buyer`s request)
PLC manufacturer:DELTA
Frequency converter: DELTA
Touch Screen:Delta
Encoder : Omron

No.	Name	Brand	Country
1.	PLC	DELTA	Taiwan,China
2.	Tocuh Screen	DELTA	Taiwan,China
3.	Safety rely	CHINT	China


We can also provide you with the following brands: (Optional, price need to be confirmed)
Spare parts(free)

No.	Name	Quantity	Country
1	Spanners	Several	China
2	Rely	Several	China
3	Fuses	2pcs	China
4	Control Button	2pcs	China
5	Sensor	4pcs	China
