• Model NO.：roof forming machine
• Customized：Customized
• Advantage：Work Flexible
• Condition：New
• Name：Metal Sheet Slitting and Rewinding Machine
• Material：1300mm*1mm Thickness Metal Sheet
• Custom Design：Available
• Production Speed：12-20m,Min
• Control System：Delta PLC Computer Control System
• Slitting Pieces：Adjustable
• Recoiler：Automatic Hydraulic Recoiler
• Uncoiler：Electric Uncoiler
• Max Support：5 Tons
• Line Size：8-10m Length*2m Width, 3m Height
• Transport Package：Waterproof Package and Naked Packing
• Specification：1300*1.0mm
• Origin：China, Hebei
• HS Code：84552210

Basic Info.

Model NO. roof forming machine Customized Customized Advantage Work Flexible Condition New Name Metal Sheet Slitting and Rewinding Machine Material 1300mm*1mm Thickness Metal Sheet Custom Design Available Production Speed 12-20m/Min Control System Delta PLC Computer Control System Slitting Pieces Adjustable Recoiler Automatic Hydraulic Recoiler Uncoiler Electric Uncoiler Max Support 5 Tons Line Size 8-10m Length*2m Width, 3m Height Transport Package Waterproof Package and Naked Packing Specification 1300*1.0mm Origin China, Hebei HS Code 84552210

Product Description

roll forming machine roll forming machine roll forming machine roll forming machine
tile machine
roof machine

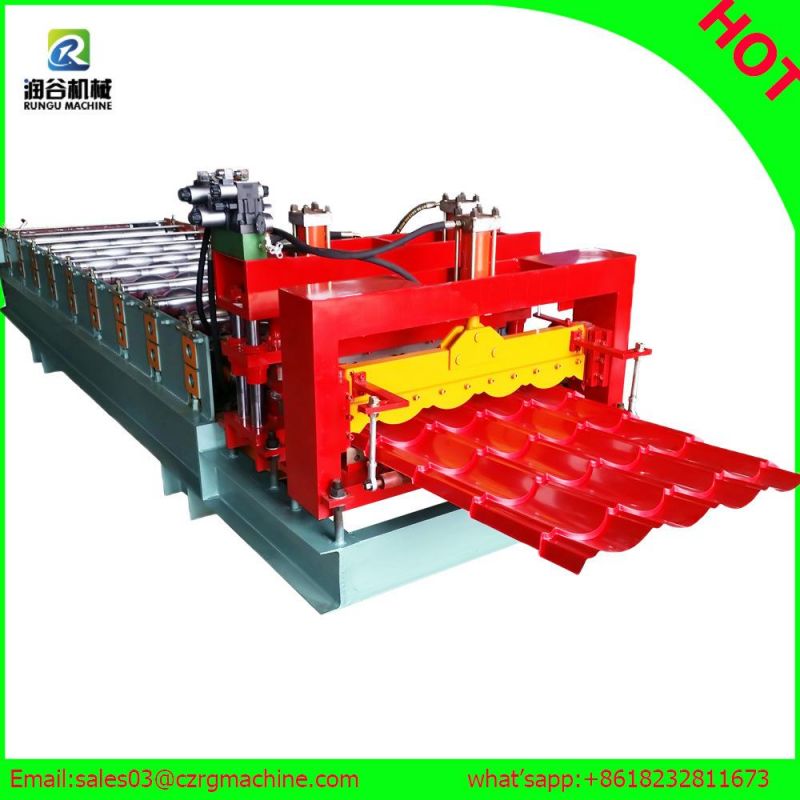

DX used metal roof panel roll forming machine

1. Technique parameters
(1) Processing material: Aluzinc/galvanized steel/colored steel coil
(2) Material thickness: 0.25-0.75mm
(3) Effective width: 1050&1064
(4) Feeding width1250mm
(5) Main motor power: 4 kw
(6) Pump power: 4 k
(7) Shaft diameter: 75mm
(8) Forming steps: Up level 11 steps for1050profile; Down level 13 steps for 1064 profile
(9) Roller material: 45# forged steel, with hard chrome plating
(10) Main frame: 350H steel
(11) Medium plate thickness: 14mm
(12) Control systerm: PLC computer control with inverter
(13) Power supply: 380V, 3 Phase, 60Hz or as requirement
(14) Overal sized: 7500mm*1500mm*1500mm

2 Production work flow
1) Uncoiler-----Feeding part-----Roll forming part-----Hydraulic mold cutting----Support table---PLC control

3 Advantage:
1) Direct roll forming machine factory
2) More than 20-year experienced engineers
3) Good credit and reputation
4) Good Machine and reasonable price

Components
1	Manual uncoiler
2	Feeding device
3	Roll forming part
4	Hydraulic pump
5	Motor
6	PLC control system
7	Support table

If you are intereted in the roll forming machine,please feel free to ask me:
