Stainless Steel Pop Rivet Production Line with Different Blind Rivets

Nantong Zhenhuan Trade Co., Ltd.
  • Cold Heading Machine：Kmz-4
  • Suitable Rivet Diameter：2.4-5mm
  • Max. Rivet Length：20mm
  • Producing Speed：About 66PCS,Min
  • Slide Stroke：85mm
  • Total Power：2.2 Kw

Base Info

  • Model NO.：MDJ
  • Producing Speed 2：About 200 PCS,Min
  • Slide Stroke 2：85mm
  • Total Power 2：1.5 Kw
  • Payment：L,C,T,T
  • Transport Package：Wooden Case
  • Specification：GB
  • Trademark：zhenhuan
  • Origin：Jiangsu
  • Production Capacity：50 Sets,Month

Description

Machine code Station number(die number)4Suitable max. diameter of products5mmSuitable max. length of products40mmPunch sizeΦ30 x 110mmMain die size Φ45 x 80mmProduction speed30-70pcs/minMachine weight2500kgMachine size2500 x 1800 x 1500mmVoltage380V, 3phase, 50Hz.Total Power5.5kW

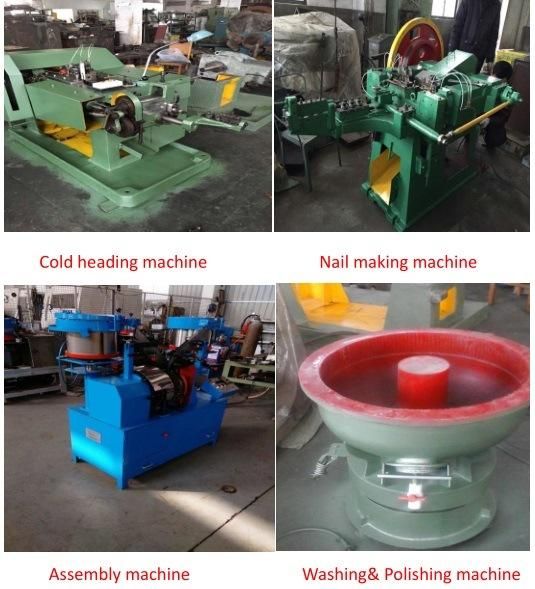

Blind Rivet Nail Making Machine

I Description of the machine
This machine is special for making built-in nails for blind rivets.
II Main technical dataMachine code Rated voltage380V, 3phase, 50 Hz.Suitable nail diameter2-4 mmMax. nail length55mmProducing speedAbout 200pcs/minSlide stroke85mmTotal power1.5 kWMachine dimension1350 x 1200 x 1200mmMachine weight1000kgVideo linkhttps://youtu.be/wxOw9WYidk0
Pop Rivet Assembly Machine

I Description of the machine
This machine is special for blind rivets. It used for combining hollow rivets and nails with two feeders automatically.
II Main technical dataMachine code Rated voltage220V, single phase, 50 Hz.Suitable rivet diameter2-6 mmProducing speedAbout 300-500pcs/minTotal power0.8 kWMachine dimension1000 x 800 x 1200mmMachine weight600kgVideo linkhttps://youtu.be/R8cChrO27g8Washing and polishing machine

I Description of the machine
This machine is special for washing polishing rivets.
II Main technical dataMachine Code Rated voltage380V, 3phase, 50 Hz.Container Capacity50LRotational Speed1450rpmTotal Power0.75kWMachine height980mmMachine length690mmMachine dimension690 x 690x 980 mmMachine weight230kgMs. Cherie Mao
Cellphone: +86-13485105931


jygoldland.en.made-in-china.com

Aluminium pop rivet making machine
 Stainless Steel Pop Rivet Production Line with Different Blind Rivets

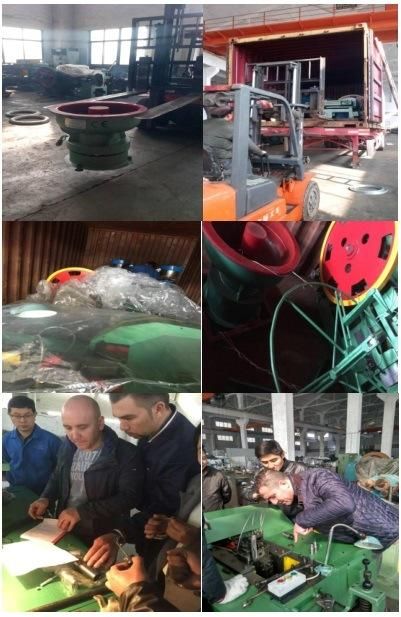

Delivery and packageStainless Steel Pop Rivet Production Line with Different Blind Rivets

We are established on 2004, more than 15 years experiences on providing  blind rivets making machine. We are certified by SGS, TUV and BV on our credit and profession.
