Cap Ridge Roll Forming Machine
Zhangjiagang City Saibo Science & Technology Co., Ltd.- Type：Rolling Machine
- Forging Forming Method：Mold Forging
- Power Source：Electric
- Feature：High Efficiency
- Certification：ISO9001, CE
- Warranty：12 Months
Base Info
- Model NO.：YX116-284
- Customized：Customized
- Advantage：Easy to Maintenance
- Condition：New
- Product Name：Cap Ridge Roll Forming Machine
- Thickness：0.4-0.6mm
- Transport Package：Sea Packing
- Trademark：SAIBO
- Origin：China
- HS Code：84552210
- Production Capacity：300set,Year
Description
Profile drawing:

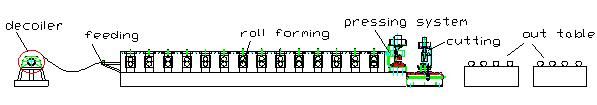

The Chart of Process Flow
Specification of Components
- Width of feeding: 350mm
- Capability: 3 Ton
- Bound of expand &fight: 380mm-520mm
- Mode of expand &fight: inner expand &fight by manual
- Way of feeding: manual
- Roller stations:7stations + 4 station of side roller
- Roller material:ASTM1045 chrome plated surface with chrome
- Shaft diameter: ¢65mm material: SAE1045 with tempering
- Machine structure: wall panel
- Cutting & pressing after forming: Cut the sheet after roll forming to required length
- Uses two hydraulic cylinders for operation.
- Material of blade/pressing mould:Cr12, 58-62 HRC hardness
- Power by hydraulic,4KW
- Tolerance of length: +/- 1.5mm for each piece end product
- Jointed by steel tube
- Size: 2.0m long*0.8mwide*0.6-1mhigh
- One out table with three support roller
- Quantity: 2 units
